DXLink Fiber Input & Output Boards
139
Enova Digital Media Switchers - Hardware Reference Manual
Audio Data Block
IMPORTANT: For information on troubleshooting audio, including a table on "Audio Format Support on Enova DGX Boards,"
see page 101.
System Setup with DXLink Fiber, Duplex and Simplex Units
DXLink Fiber Input and Output Boards must be used in conjunction with DXLink Fiber TX and RX units. Compatible DXLink
Fiber units are listed on page 136. System setup options are listed in the table on page 46. For unit installation details, see
the units’ Quick Start Guide or Hardware Reference Manual.
When the TX and RX units are installed, image adjustment and EDID scaling is automatically applied. For almost every
installation, the automatic features on the units result in a quality image on the monitor. If the installation has special
requirements and needs additional adjustment or if you need product specifications for the modules, refer to the
Hardware Reference Manual – DXLink Fiber Transmitters and Receivers at www.amx.com
.
The distance from a DXLink Fiber TX unit to a DXLink Fiber Input Board can be up to the maximum specified in the table
below and the same for the distance from the DXLink Fiber Output Board to the DXLink Fiber RX unit. The cable run length
depends on the quality of the cable (see specifications in the table below, which apply to both Duplex and Simplex
hardware).

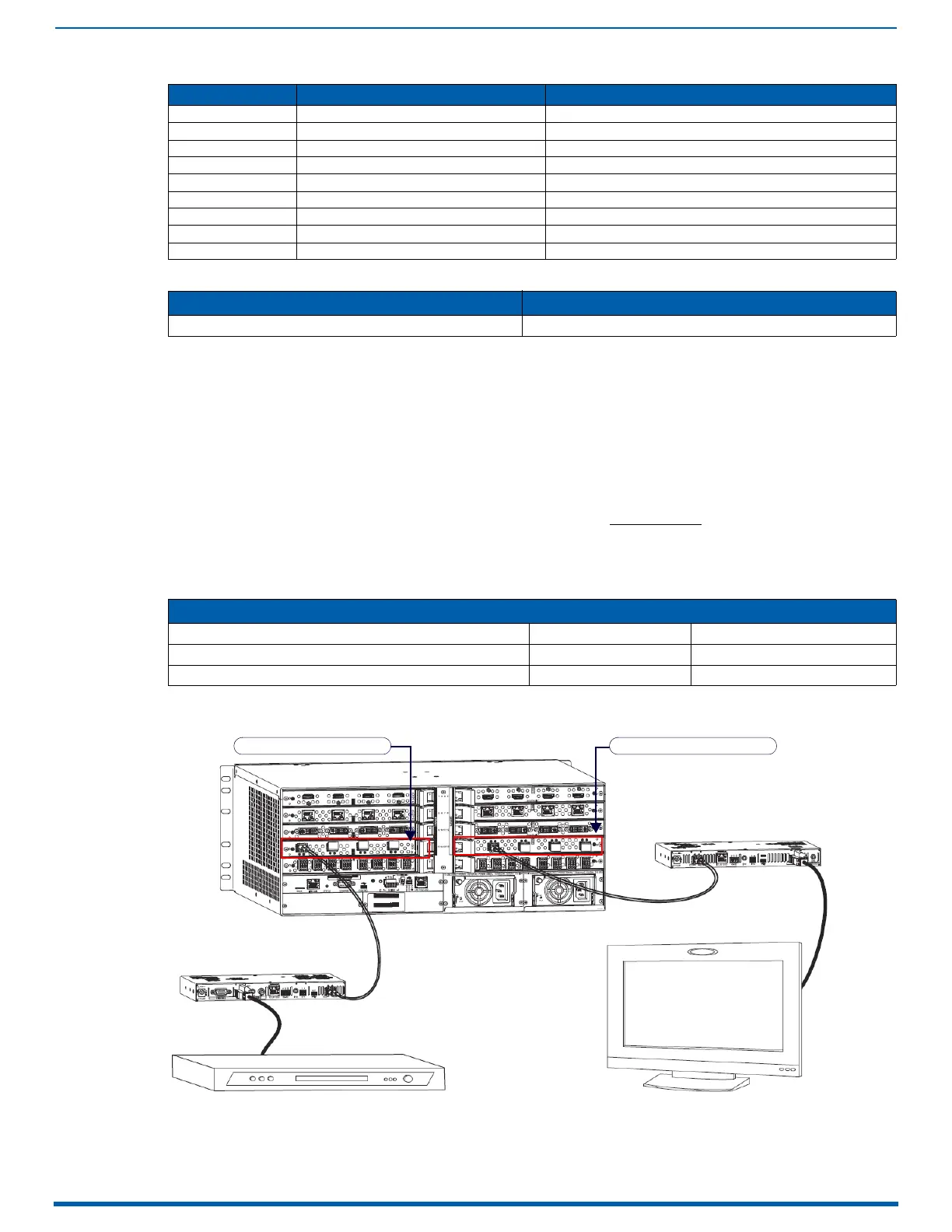

The system setup in FIG. 53 illustrates DXLink Fiber Boards, Duplex used in conjunction with a DXLink Fiber, Duplex
Transmitter and Receiver. Setup for DXLink Fiber, Simplex equipment is similar but without the return path.
IMPORTANT: See the DXLink Fiber Hardware Compatibility section on page 135.
VIC = 39 1920x1080i 50 Hz 16:9
VIC = 41 1280x720p 100 Hz 16:9
VIC = 42 720x576p 100 Hz 4:3
VIC = 43 720x576p 100 Hz 16:9
VIC = 44 720(1440)x576i 100 Hz 4:3
VIC = 45 720(1440)x576i 100 Hz 16:9
VIC = 47 1280x720p 119.88/120 Hz 16:9
VIC = 48 720x480p 119.88/120 Hz 4:3
VIC = 49 720x480p 119.88/120 Hz 16:9
Channels Sampling Frequency
Basic Audio: 2 Channel L-PCM 32, 44.1, 48 kHz Sampling frequency at 16, 20, or 24 bits per sample
DXLink Fiber Model / Cable / Distance
Model Cable Type Maximum Distance
Multimode – Duplex/Simplex Models OM3 50/125 μm 984 ft. (300 m)
Single mode – Duplex/Simplex Models 9/125 μm 6.21 miles (10 km)
FIG. 53 DXLink Fiber Boards are used in conjunction with DXLink Fiber units
VIC # Resolution Refresh Rate and Aspect Ratio
DXLink Fiber Output Board
Source Device
Destination
DXLink Fiber RX Module
DXLink Fiber Input Board
Fiber Optic Cable
Fiber Optic Cable
DXLink Fiber TX Module
Device
