AMX Enova DGX 100 Series Hardware Reference Manual

DGX 6400
42
Enova Digital Media Switchers - Hardware Reference Manual
Rear Panel
Enova DGX 6400 enclosures have 32 horizontal I/O board slots (16 slots each for input and output boards with four
connectors each), allowing for a maximum configuration of 64x64. FIG. 11 shows the rear panel of an DGX 6400
enclosure, fully loaded for 64x64 switching.:
Power Supplies (x4)
The ENC 6400 has four power supply units. Each of the power supply units has a power receptacle that will accept all
major international standard power sources. (US power cords are included with all enclosures shipped within the US.)
Maximum power specifications are provided on the power supply receptacles.
NOTE:
For information on applying power, see page 63.

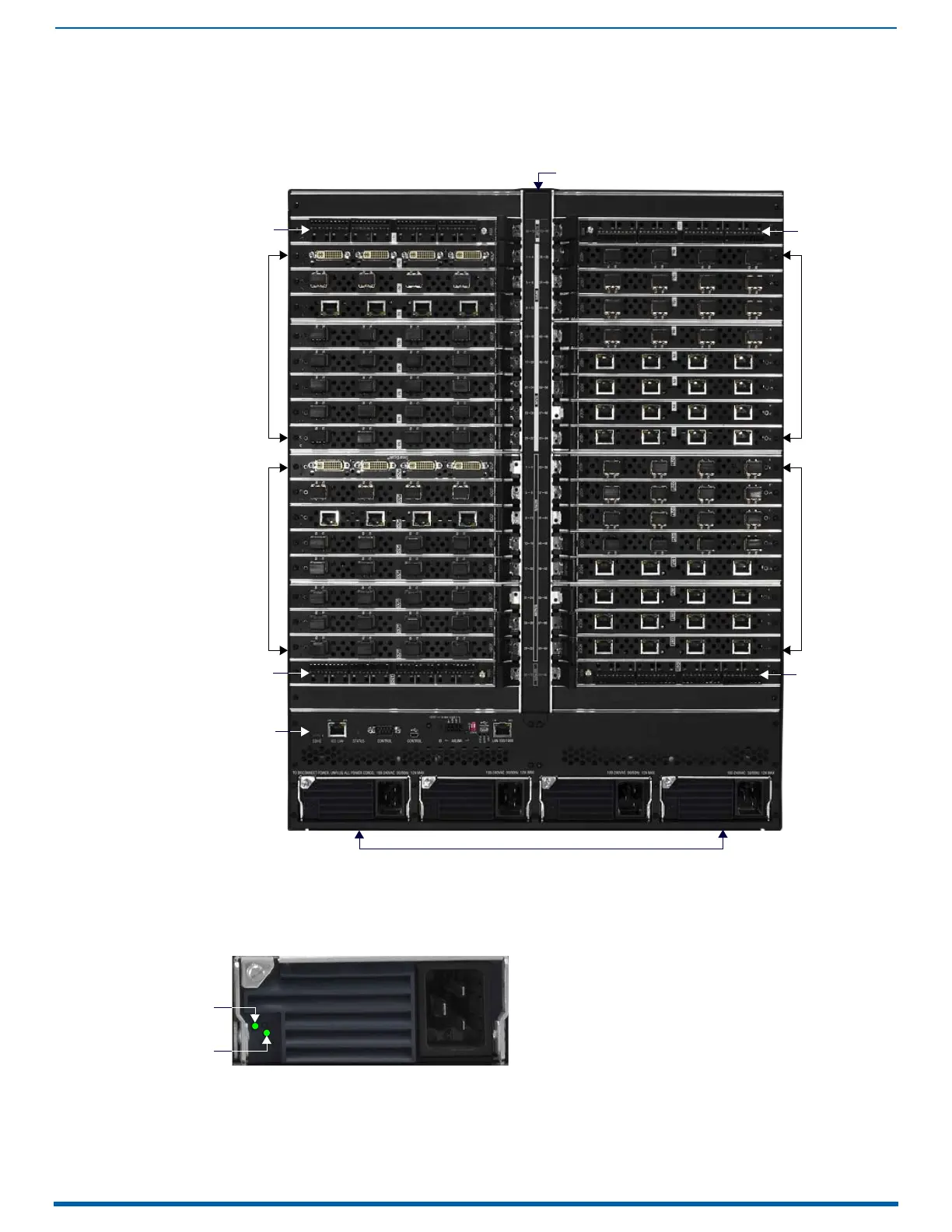

FIG. 11 DGX 6400 - Rear Panel Components
FIG. 12 ENC 6400 Power Supply
Input board
Power supplies (x4)
CPU/Control board
Expansion slot
(with expansion
board installed)
Expansion slot
(with expansion
board installed)
Expansion slot
(with expansion
board installed)
Expansion slot
(with expansion
board installed)
slots (x8)
Input board
slots (x8)
Output board
slots (x8)
Output board
slots (x8)
Numbering plate
AC: Green light indicates power is good
DC: Green light indicates power is good
Amber light indicates temperature is above normal
Red light indicates that the power supply is in a fault state
AC LED
DC LED
