AMX Enova DGX 100 Series Hardware Reference Manual

Dante Audio Switching Boards
158
Enova Digital Media Switchers - Hardware Reference Manual
Enova DGX 6400 Path Mapping
Attaching Cables
Dante Audio Switching Boards require an HSSI SMA cable (included when required) that attaches from the input board to
the output board (required on all enclosure models except the Enova DGX 6400).
Dante Audio Switching Board Connectors
Dante Audio Switching Boards include two Dante Ethernet connectors (FIG. 70):
NOTE: The HSSI connector is not used on the Enova DGX 6400.
Dante Audio Switching Boards are oriented in the Enova DGX 100 Series models as follows:
Enova DGX 800 – One each horizontal input (left) and output (right) board
Enova DGX 1600 – One each horizontal input (left) and output (right) board
Enova DGX 3200 – One each vertical input (left) and output (right) board
Enova DGX 6400 – Two horizontal input boards (left and right) and two horizontal output boards (left and right)
CAUTION: Audio Switching Boards, Dante Audio Switching Boards, and Audio Insert/Extract Boards are not compatible.
Do not install mixed types of expansion boards in the same enclosure. If two types of boards are present, the audio
subsystem is disabled.
Enova DGX 6400 Dante Audio Switching Board I/O and Dante Path Mapping
Dante ASB Input Board Dante ASB Output Board
Dante Subscription (EDGX-IN) Enova DGX ASB-DAN Input Enova DGX ASB-DAN Output Dante Subscription (EDGX-OUT)
Dante channels 01-LEFT,01-RIGHT Enova Stereo Audio Input 65 Enova Stereo Audio Output 65 Dante channels 01-LEFT,01-RIGHT
Dante channels 02-LEFT,02-RIGHT Enova Stereo Audio Input 66 Enova Stereo Audio Output 66 Dante channels 02-LEFT,02-RIGHT
Dante channels 03-LEFT,03-RIGHT Enova Stereo Audio Input 67 Enova Stereo Audio Output 67 Dante channels 03-LEFT,03-RIGHT
Dante channels 04-LEFT,04-RIGHT Enova Stereo Audio Input 68 Enova Stereo Audio Output 68 Dante channels 04-LEFT,04-RIGHT
Dante channels 05-LEFT,05-RIGHT Enova Stereo Audio Input 69 Enova Stereo Audio Output 69 Dante channels 05-LEFT,05-RIGHT
Dante channels 06-LEFT,06-RIGHT Enova Stereo Audio Input 70 Enova Stereo Audio Output 70 Dante channels 06-LEFT,06-RIGHT
Dante channels 07-LEFT,07-RIGHT Enova Stereo Audio Input 71 Enova Stereo Audio Output 71 Dante channels 07-LEFT,07-RIGHT
Dante channels 08-LEFT,08-RIGHT Enova Stereo Audio Input 72 Enova Stereo Audio Output 72 Dante channels 08-LEFT,08-RIGHT
Dante channels 09-LEFT,09-RIGHT Enova Stereo Audio Input 73 Enova Stereo Audio Output 73 Dante channels 09-LEFT,09-RIGHT
Dante channels 10-LEFT,10-RIGHT Enova Stereo Audio Input 74 Enova Stereo Audio Output 74 Dante channels 10-LEFT,10-RIGHT
Dante channels 11-LEFT,11-RIGHT Enova Stereo Audio Input 75 Enova Stereo Audio Output 75 Dante channels 11-LEFT,11-RIGHT
Dante channels 12-LEFT,12-RIGHT Enova Stereo Audio Input 76 Enova Stereo Audio Output 76 Dante channels 12-LEFT,12-RIGHT
Dante channels 13-LEFT,13-RIGHT Enova Stereo Audio Input 77 Enova Stereo Audio Output 77 Dante channels 13-LEFT,13-RIGHT
Dante channels 14-LEFT,14-RIGHT Enova Stereo Audio Input 78 Enova Stereo Audio Output 78 Dante channels 14-LEFT,14-RIGHT
Dante channels 15-LEFT,15-RIGHT Enova Stereo Audio Input 79 Enova Stereo Audio Output 79 Dante channels 15-LEFT,15-RIGHT
Dante channels 16-LEFT,16-RIGHT Enova Stereo Audio Input 80 Enova Stereo Audio Output 80 Dante channels 16-LEFT,16-RIGHT
Enova Audio Input 81 (down-mix)

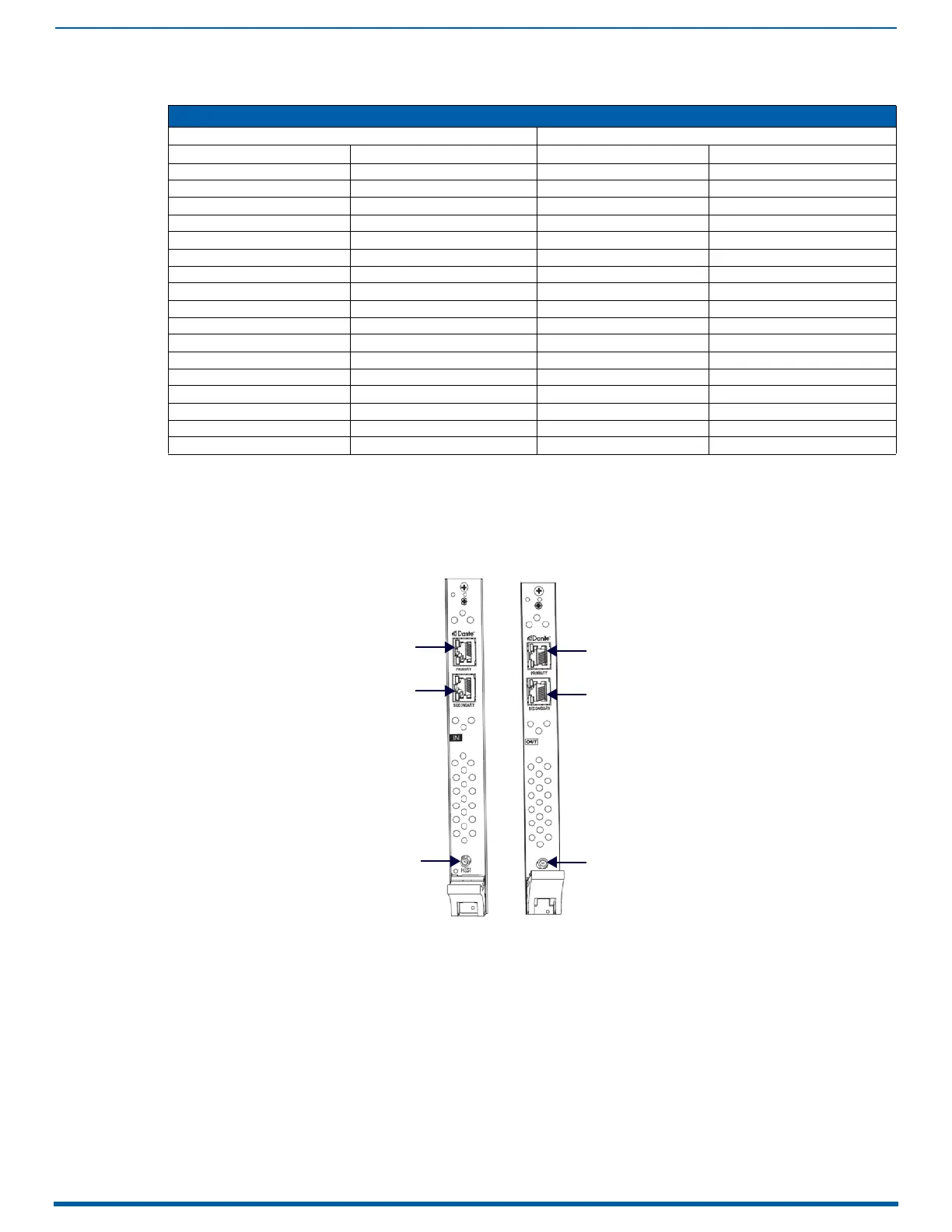

FIG. 70 Dante Audio Switching Boards - orientation and connectors
Dante Primary Ethernet connector
Dante Secondary Ethernet connector
Dante Primary Ethernet connector
Dante Secondary Ethernet connector
HSSI connector
HSSI connector
