DXLink (Twisted Pair or Fiber) Receivers (for selected video output)
DXLink Details button – click to display additional settings for the DXLink Receiver (FIG. 110).
Audio Settings
Audio settings display when the Switch Mode is A/V or Audio, the Audio tabbed view is selected, and a specific input or
output is selected. The audio settings can be used to configure any digital signal processing required for the audio signal
that is selected in the Switching view.
Inputs Only - General

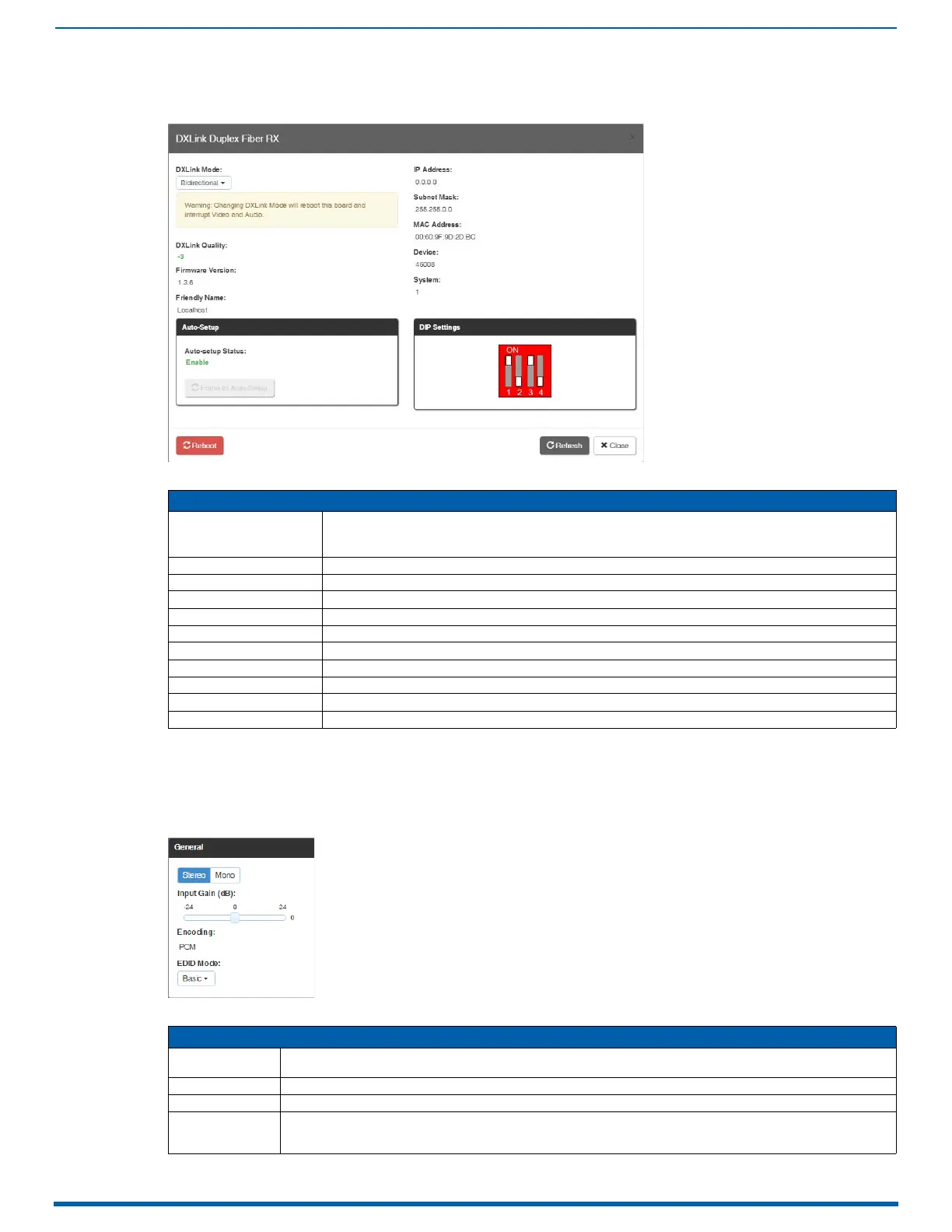

FIG. 110 DXLink (Twisted Pair or Fiber) Receivers
DXLink Receivers Settings
DXLink Quality green = good, red = poor
• DXLink Twisted Pair quality range is from -100 to 0 with the best quality at -100 and the worst quality at 0.
• DXLink Fiber quality range is from 0 to -100 with the best quality at 0 and the worst quality at -100.
Firmware Version current version
Friendly Name current name
IP Address for auto-setup, displays integrated Master’s IP address
Subnet Mask current setting
D. P. S. current setting
MAC Address current setting
Auto-Setup Status (Enable/Disable) and Force to Auto-setup button
DIP Settings indicates settings on DIP switch
Reboot button reboots RX
Refresh button updates status of RX settings
FIG. 111 Audio Settings - Inputs Only - General
Audio Settings - Inputs Only - General
Stereo or Mono
buttons
Setting this option to "Mono" audio on the input results in the left channel being sent to both the left and right output
channels.
Input Gain (dB) use the slider bar to adjust (-24 dB to +24 dB),
Encoding PCM (read only)
EDID Mode from the drop-down list, select the mode (Basic, PCM 2-Channel, PCM Multi-Channel, Dolby Digital,
Dolby Digital + DTS, Dolby Digital + MPEG, Dolby Digital + AAC, Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, or DTS
HD Master Audio).
