System Configuration Interface
198
Enova Digital Media Switchers - Hardware Reference Manual
DXLink TX Details
DXLink (Twisted Pair or Fiber) Receivers (for selected audio output)

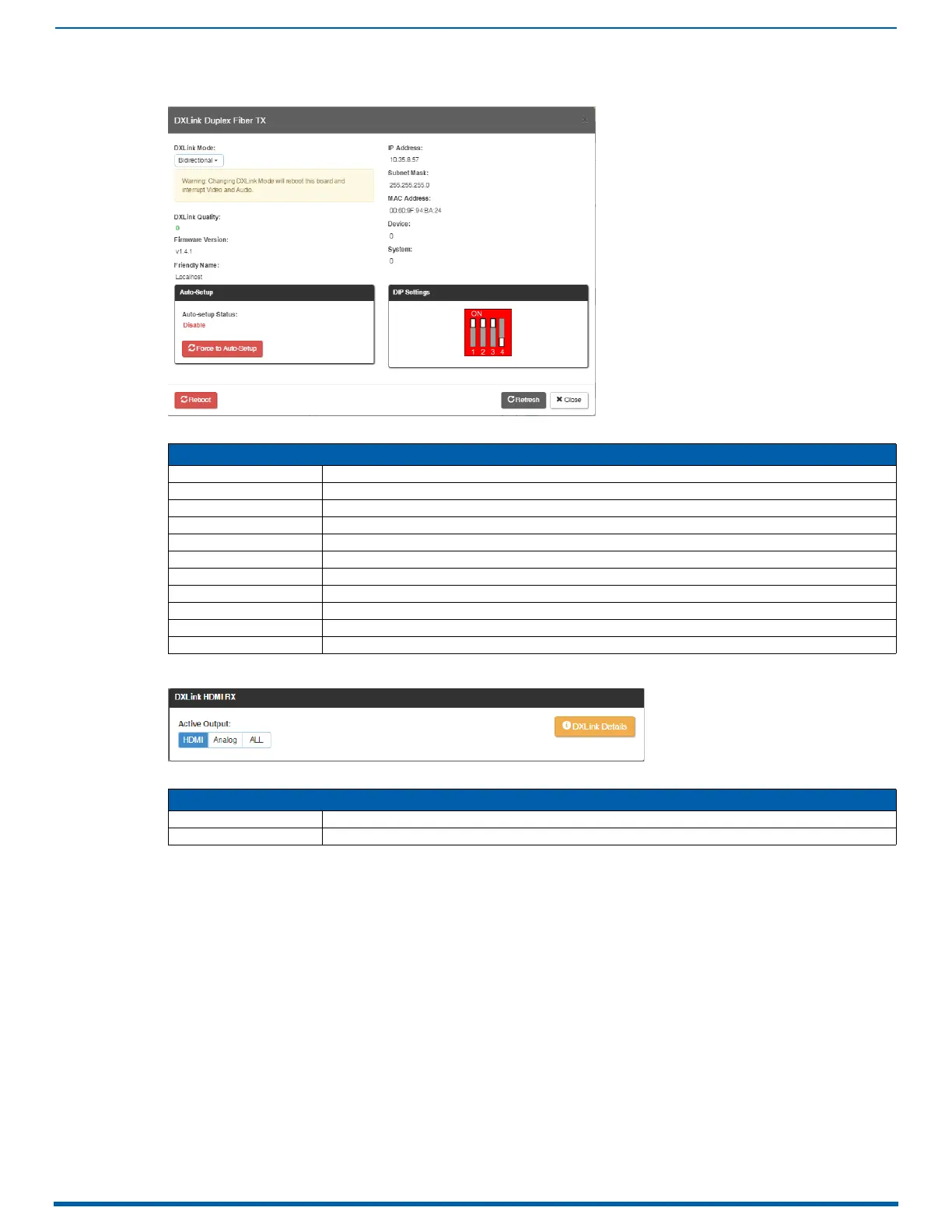

FIG. 117 DXLink Transmitters Details
DXLink Transmitters Details
DXLink Quality green = good; red = poor; number indicates degree or lack of quality
Firmware Version current version
Friendly Name current name
IP Address for auto-setup, displays integrated Master’s IP address
Subnet Mask current setting
D. P. S. current setting
MAC Address current setting
Auto-Setup Status (Enable/Disable) and Force to Auto-setup button
DIP Settings indicates settings on DIP switch
Reboot button reboots TX
Refresh button updates status of TX settings
FIG. 118 DXLink (Twisted Pair or Fiber) Transmitter Settings
DXLink Receivers Settings
Active Output Click either the HDMI, Analog, or All button.
DXLink Details button Click to display additional settings for the DXLink Receiver
To Next Page
