Control Panel
77
Enova Digital Media Switchers - Hardware Reference Manual
Software Version
The Software Version Screen provides the following information:
Driver – Control Panel’s firmware version
Built – date the Control Panel’s software was built
Host – software version of the initial operating system (IOS) for the Control Panel
XNet ID – Control Panel’s XNet device number
FP Link baud 9600 – indicates the Control Panel (FP = Front Panel) and the baud rate
Use the following steps to check the software version information for the Control Panel.

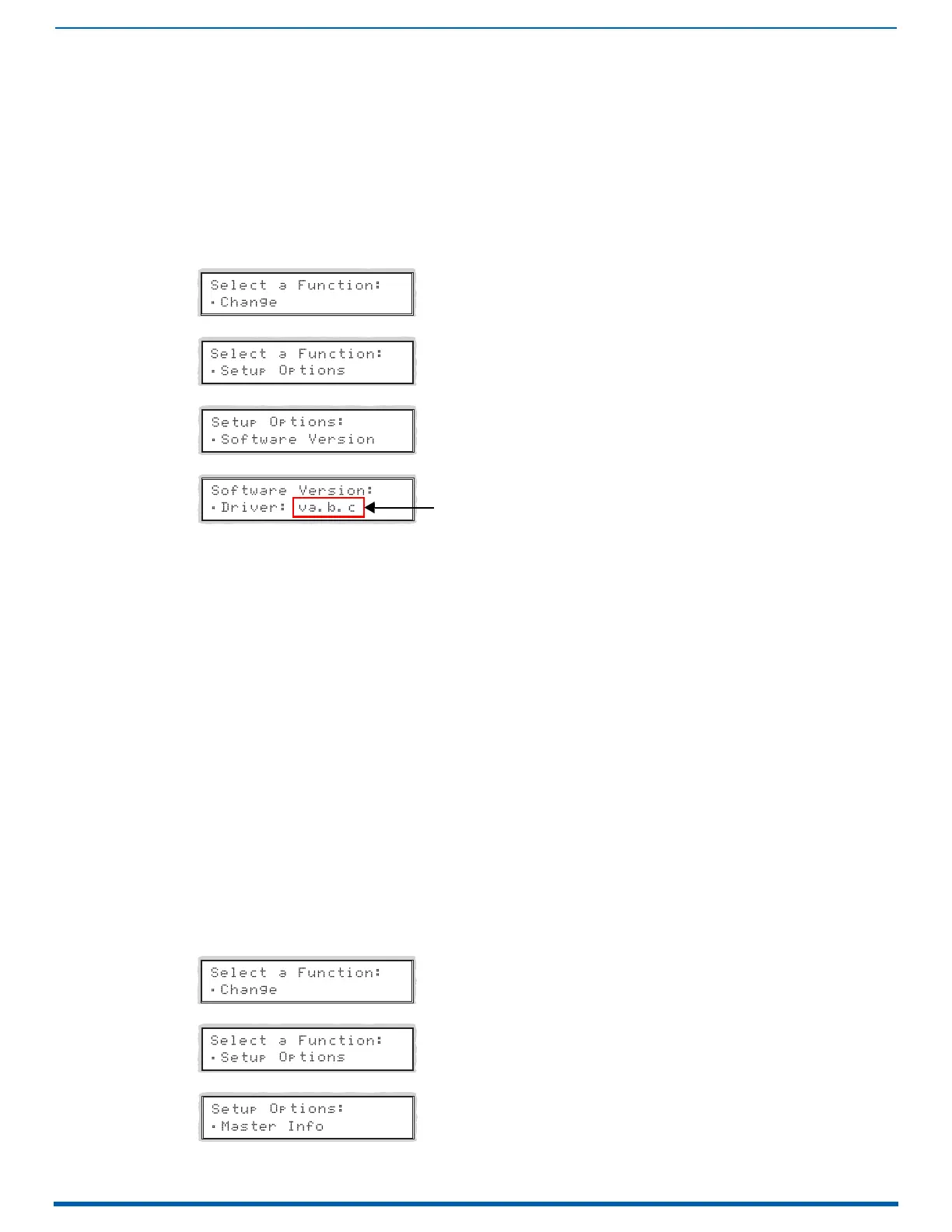

Checking Software Version Information
1. Press the Function key. The Function menu appears.
2. Locate Setup Options by scrolling with the Control Dial.
3. Press the Select key. The Setup Options sub-menu appears. Locate Software Version by scrolling with the Control Dial.
4. Press the Select key again to choose Software Version. The Software Version Screen appears.
5. Scroll with the Control Dial to see additional Software Version information.
6. Press the Cancel key to return to the Setup Options sub-menu.
- or -
Press the Function key to return to the Function menu.
Master Info
NOTE: The enclosure must be connected to a network before its IP address will display. Also note that IPv6 addresses are
truncated to fit the 20 character limit on the LCD.
The Master Info Screen provides the following information for the integrated Master:
System Number – indicates the system number
Serial Number – indicates the system’s serial number
MAC Address – indicates the system’s MAC address
IP Address – indicates the IP address*
IP Device Type – indicates either DHCP or non-DHCP
Subnet – indicates the Network setting for the subnet mask*
Gateway – indicates the Network setting for the gateway
Host Name – indicates the host name for the system
DNS Address – indicates the DNS IP address for the system*
Master Version – indicates the version of the integrated Master
Switcher Version– indicates the version of the switcher
Controller Version – indicates the version for the controller
Use the following steps to check information for the integrated Master.
Checking Integrated Master Info
1. Press the Function key. The Function menu appears.
2. Locate Setup Options by scrolling with the Control Dial.
3. Press the Select key. The Setup Options sub-menu appears. Locate Master Info by scrolling with the Control Dial.
