AIE Audio Insert/Extract Boards
183
Enova Digital Media Switchers - Hardware Reference Manual
Options for Wiring AIE to Balanced Audio Input Device
CAUTION:
Connecting AIE output left and Right channels to the same point to obtain a single channel may damage the
AIE Board.
Standard Wiring

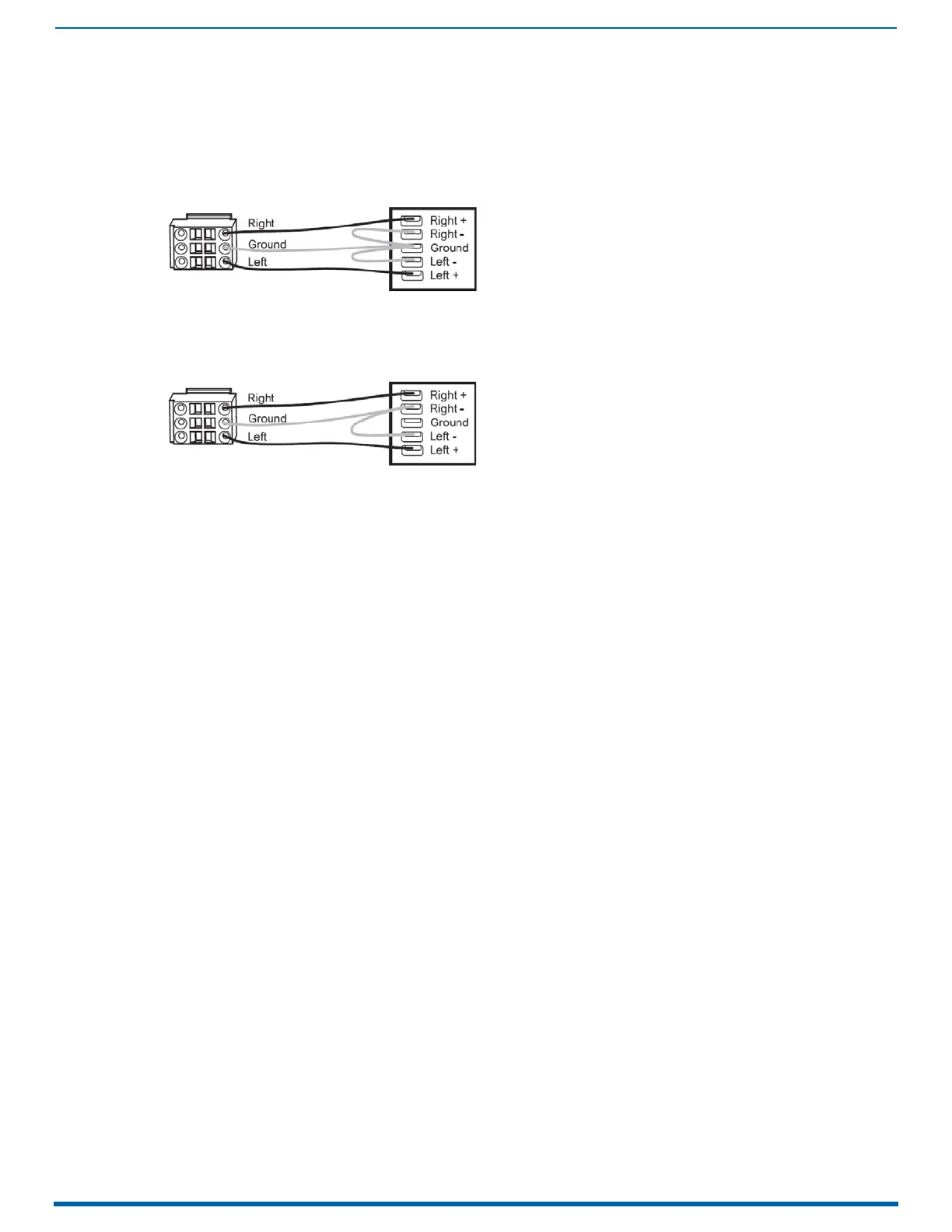

FIG. 94 indicates the standard way to wire an AIE connector to a balanced audio input device:
If Necessary – Wiring to Eliminate Buzzing
The wiring in FIG. 95 can be used if the extracted audio buzzes when connected to a balanced audio input device:
FIG. 94
Standard wiring from AIE to balanced audio input device
FIG. 95 Wiring from AIE to balanced audio input device if buzzing occurs
AIE output Balanced audio input device
AIE output Balanced audio input device
