Systems without Audio Switching Boards (ASB or ASB-DAN)
A global preset number can be assigned to a routing state during runtime and stored by the system, allowing you to
replicate an entire system’s routing state.
NOTE: The global preset will not affect the injection/extraction setting on any channel of any AIE Board.
Systems with Audio Switching Boards (ASB or ASB-DAN)
A global preset number can be assigned to a routing state during runtime and stored by the system, allowing you to
replicate a subset of the system state. The system routing state includes all signal routings and audio settings for Mute/
Unmute and Output Volume; however, it excludes any down-mix switching routes. Global presets cannot capture Digital
Signal Processing settings.
NOTE: If a backup of a given entire system state is required when Audio Switching Boards are in the system (including
Digital Signal Processing settings), the System Configuration interface’s Switcher-Setup-Save function can save all of the
system’s configuration values in a file that can be loaded back to the Switcher when needed (see page 133).
CAUTION: Keep track of the number and the system state routing used for each global preset. If a previously used number is
assigned to another system state (using either the Control Panel or BCS commands), the former state will be automatically
overwritten.
The instructions below define an example Global Preset 3, and the instructions at the bottom of the page are used to
execute a predefined Global Preset 3.
IMPORTANT:
Wait approximately ten seconds for the system to store the global preset setting before executing another operation.
Defining a Global Preset

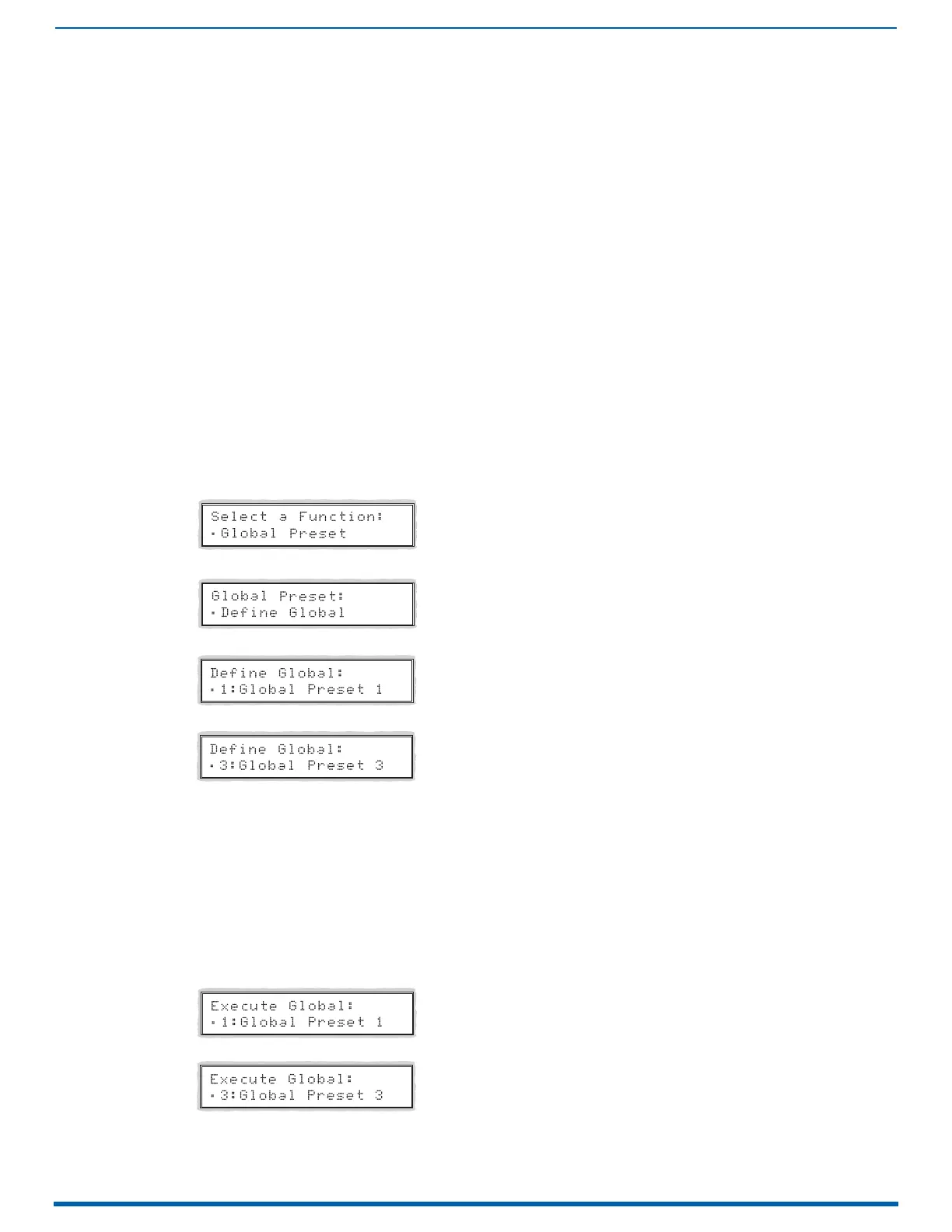

1. Route the system to the desired state.
2. Press the Function key. The Function menu appears.
3. Locate Global Preset by scrolling with the Control Dial.
4. Press the Select key. The Global Preset sub-menu appears.
5. Scroll with the Control Dial to Define Global. Press the Select key. The Define Global list appears.
6. Scroll with the Control Dial until Global Preset 3 appears.
7. Press either the Select key or the Take key.
8. Wait approximately ten seconds for the system to store the global preset setting.
The current routing state can now be recalled as Global Preset 3, and the system returns to the Global Preset sub-
menu.
9. Press the Function key to return to the Function menu.
Executing a Global Preset
1. Press the Function key. The Function menu appears.
2. Locate Global Preset by scrolling with the Control Dial.
3. Press the Select key. Execute Global appears.
4. Press the Select key. The Execute Global Preset list appears.
5. Scroll with the Control Dial until Global Preset 3 appears.
6. Press either the Select key or the Take key.
