AIE Audio Insert/Extract Boards
177
Enova Digital Media Switchers - Hardware Reference Manual
System Examples
The examples below show some uses for the insertion/extraction functionality on the AIE Board. Individual connectors on
an AIE Board can be set to insert or extract audio onto/from their numerically corresponding standard inputs/outputs.
NOTE: The Enova DGX 6400 enclosure’s AIE Boards are located top and bottom on the rear. Therefore, this section’s
references to left and right expansion board slots correspond to the top and bottom expansion board slots respectively
on the Enova DGX 6400.

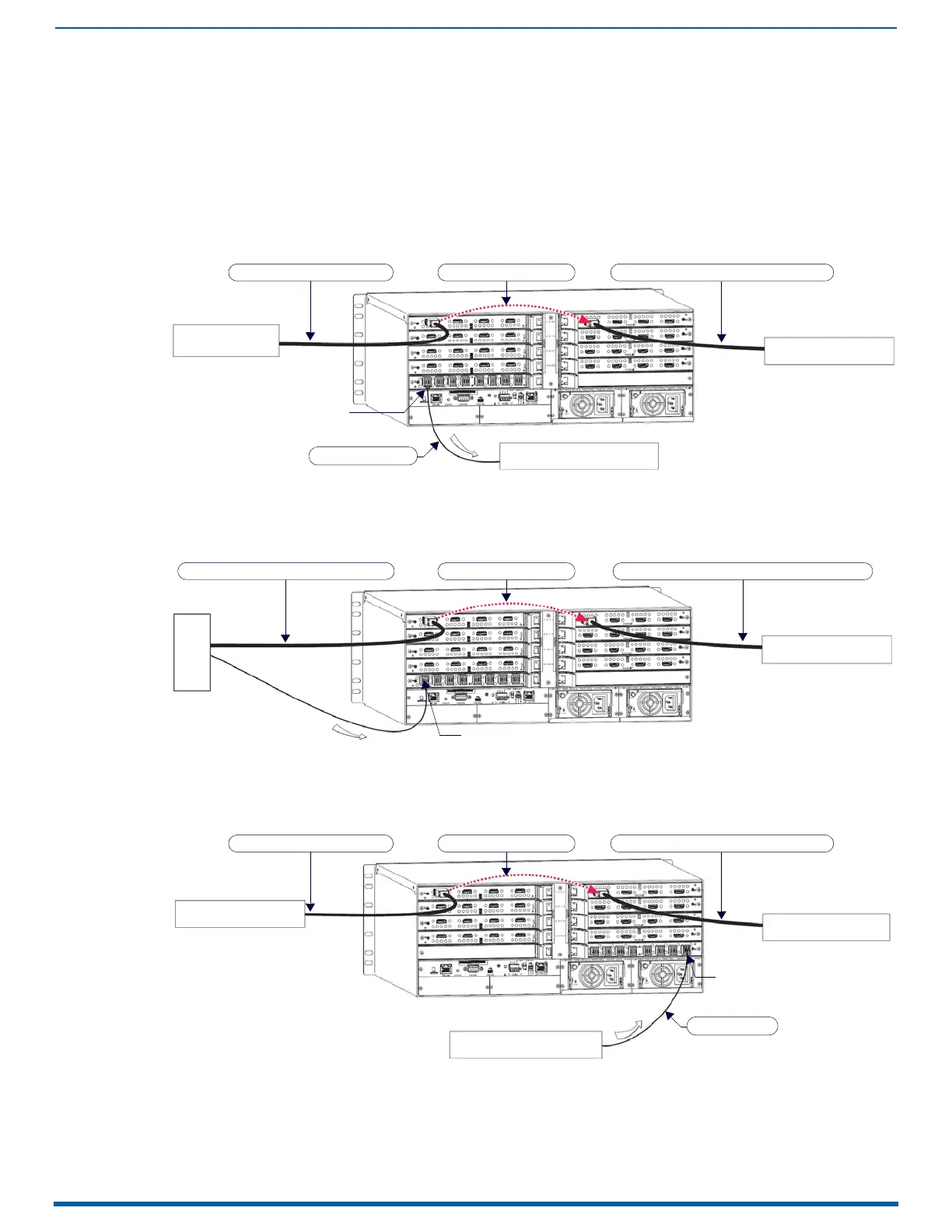

AIE Board in Left Expansion Board Slot - Extract Function
Extracted audio remains intact from standard input to standard output but is also sent on to an auxiliary audio system for
further distribution (FIG. 84):
AIE Board in Left Expansion Board Slot - Insert Function
Inserted audio is received separately from PC source, embedded onto the HDMI signal, and routed from standard input
through standard output(s) to destination(s) as an HDMI signal with embedded audio (FIG. 85):
AIE Board in Right Expansion Board Slot - Insert Function
Inserted audio from auxiliary audio system replaces embedded audio on HDMI signal and is sent to the destination device
(FIG. 86):
FIG. 84
Audio extracted from HDMI input signal and sent to auxiliary audio system
FIG. 85 Audio inserted onto HDMI input signal
FIG. 86 Audio inserted onto HDMI output signal
Source Device
Destination Device
Auxiliary Audio System
HDMI with embedded audio
Signal through system HDMI-embedded audio remains intact
Audio connector set to "Extract"
Audio-only signal
PC
Destination Device
DVD-to-HDMI adapter cable required
Signal through system
Audio connector set to "Insert"
HDMI with embedded audio inserted from PC
Source Device
Destination Device
Auxiliary Audio System
HDMI with embedded audio
Signal through system HDMI-embedded audio remains intact
Audio connector set to "Insert"
Analog Stereo
