Appendix F - DGX Configuration Software
282
Enova Digital Media Switchers - Hardware Reference Manual
Sending a Command to the System
1. In the DGX Configuration Software interface, select the Terminal tab (FIG. 168):
2. Select and set the Terminal Communication Settings: Comm Port and Baud (rate). The default baud rate for the
Enova DGX 100 Series Switcher is 115200.
3. Click Connect.
4. Press CTRL+C to clear the communication channel and begin sending DGX_SHELL commands. (Type "bcs" and click
the Send button to enter the BCS environment. Press CTRL+C to return to the DGX_SHELL environment.)
5. Enter additional commands as necessary.
6. When done, click Disconnect.
NOTE: DGX_SHELL commands are explained on page 273 and BCS commands are explained in the Programming Guide –
BCS Basic Control Structure Protocol at www.amx.com.
Saving the Current Data In The Terminal Window To a File
From the File menu, select Save to File (select location, enter file name, and click Save). The file format defaults to a .txt
file.
NOTE: Select and copy any or all of the data in the terminal window and then paste it into another program.

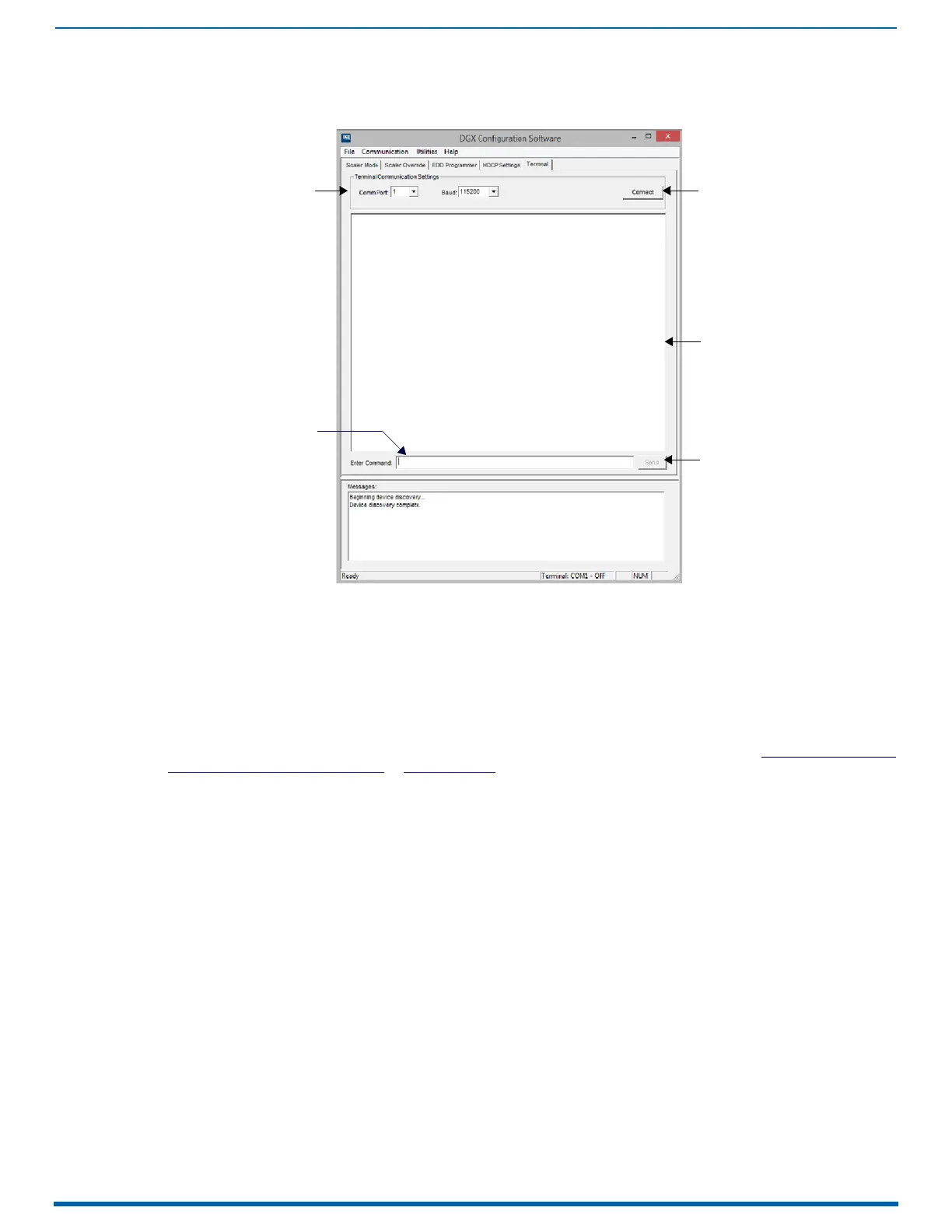

FIG. 168
Terminal view
Connect/Disconnect
Communication Settings
Displays data in response
to commands sent
Send
Command field
