AMX Enova DGX 100 Series Hardware Reference Manual

Appendix E - Upgrading/Downgrading the System
267
Enova Digital Media Switchers - Hardware Reference Manual
Downgrading DXLink Endpoint Firmware
Download the latest version of DXLink firmware that is compatible with an Enova DGX 8/16/32/64 Digital Media Switcher
and use the "Upgrading DXLink Transmitter/Receiver endpoints" instructions provided on page 265 to apply the
downloaded firmware version. Enova DGX 8/16/32/64 compatible firmware is available on your DXLink product’s page at
www.amx.com
.
Downgrading Enova DGX 100 Series Enclosures
Download the Enova DXG 8/16/32/64 enclosure firmware (from the corresponding product page at www.amx.com) and
use the "Upgrading the Enclosure" instructions provided on page 264 to apply the downloaded firmware version.
Downgrading the Front Control Panel
Download the Enova DXG 8/16/32/64 control panel firmware (from the corresponding product page at www.amx.com)
and use the "Upgrading the Control Panel" instructions on page 260 to apply the downloaded firmware version.
Removing 100 Series CPU Board and Installing Enova DGX 8/16/32/64 CPU Board
CAUTION: Do not remove CPU board until you are ready to install the replacement, unless directed to do so by technical
support.
Important Information for CPU Downgrade from 100 Series to 8/16/32/64
Do not transfer SD cards from the Enova DGX 100 Series CPU into the Enova DGX 8/16/32/64 CPU.
SD cards from Enova DGX 100 Series CPUs and Enova DGX 8/16/32/64 CPUs have different functions.
Audio Switching Boards are not supported within the Enova DGX 8/16/32/64; therefore, these boards must be
removed prior to using the new CPU.
Endpoint devices bound to the replaced integrated Master (DGX 100 Series CPU) via TCP/UDP connection
scheme are not
detectable by the new integrated Master (DGX 8/16/32/64 CPU) until the new Master is
configured for the IP address used by the previous Master. (NDP devices appear in NetLinx Studio’s OnLine Tree as
unbound devices.)
Items Required
Enova DGX 8/16/32/54 replacement CPU board
Phillips #1 screwdriver
ESD wristband and cord with an alligator clip
DXLink Firmware Compatibility
Enova DGX 8/16/32/64 Enova DGX 100 Series
DXLink Twisted Pair Transmitters
1.6.67 1.8.28
DXLink Twisted Pair Receivers
1.9.69 1.13.34
DXLink Twisted Pair 4K Receivers
N/A 2.2.23
DXLink Fiber Transmitters
1.2.12 1.4.12
DXLink Fiber Receivers
1.2.1 1.4.17
Enova DGX Enclosure Firmware
Firmware Version Compatible with
2.2.11 Enova DGX 8/16/32/64 enclosures
3.2.19 Enova DGX 100 Series enclosures
Enova DGX Control Panel Firmware
Firmware Version Compatible with
2.0.3 Enova DGX 8/16/32/64 enclosures
2.2.0 Enova DGX 100 Series enclosures

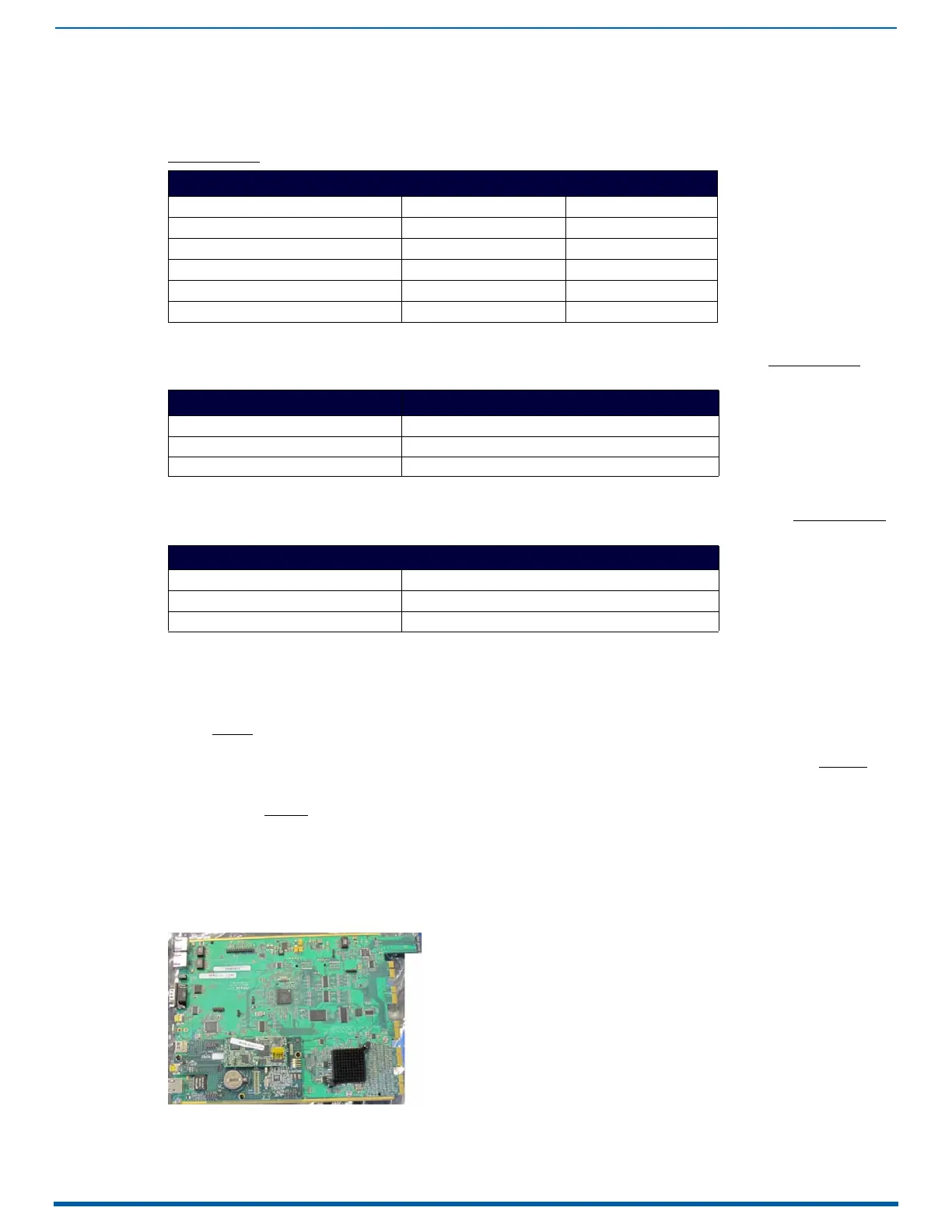

FIG. 154 Enova DGX 8/16/32/64 CPU board (top view)
