Dante Audio Switching Boards
151
Enova Digital Media Switchers - Hardware Reference Manual
Enova DGX Model Specific Dante Audio Switching Board Location
Enova DGX 800/1600 enclosures – Must use one input board (in bottom left expansion slot) and one output board
(in bottom right expansion slot). Boards are installed horizontally.
Enova DGX 3200 enclosures – Must use one input board (in left expansion slot) and one output board (in right
expansion slot). Boards are installed vertically.
Enova DGX 6400 enclosures – Must use two input boards and two output boards in specific expansion board slots
(FIG. 64). Boards are installed horizontally. Note that Enova DGX 6400 – Dante Audio Switching Input Boards must
be installed directly above standard Input Boards in left and right slots and Output Boards must be installed directly
below standard Output Boards in left and right slots.
IMPORTANT: Enova DGX 6400 – Dante Audio Switching Input Boards must
be installed directly above standard Input
Boards in left and right slots and Output Boards must
be installed directly below standard Output Boards in left and right
slots.

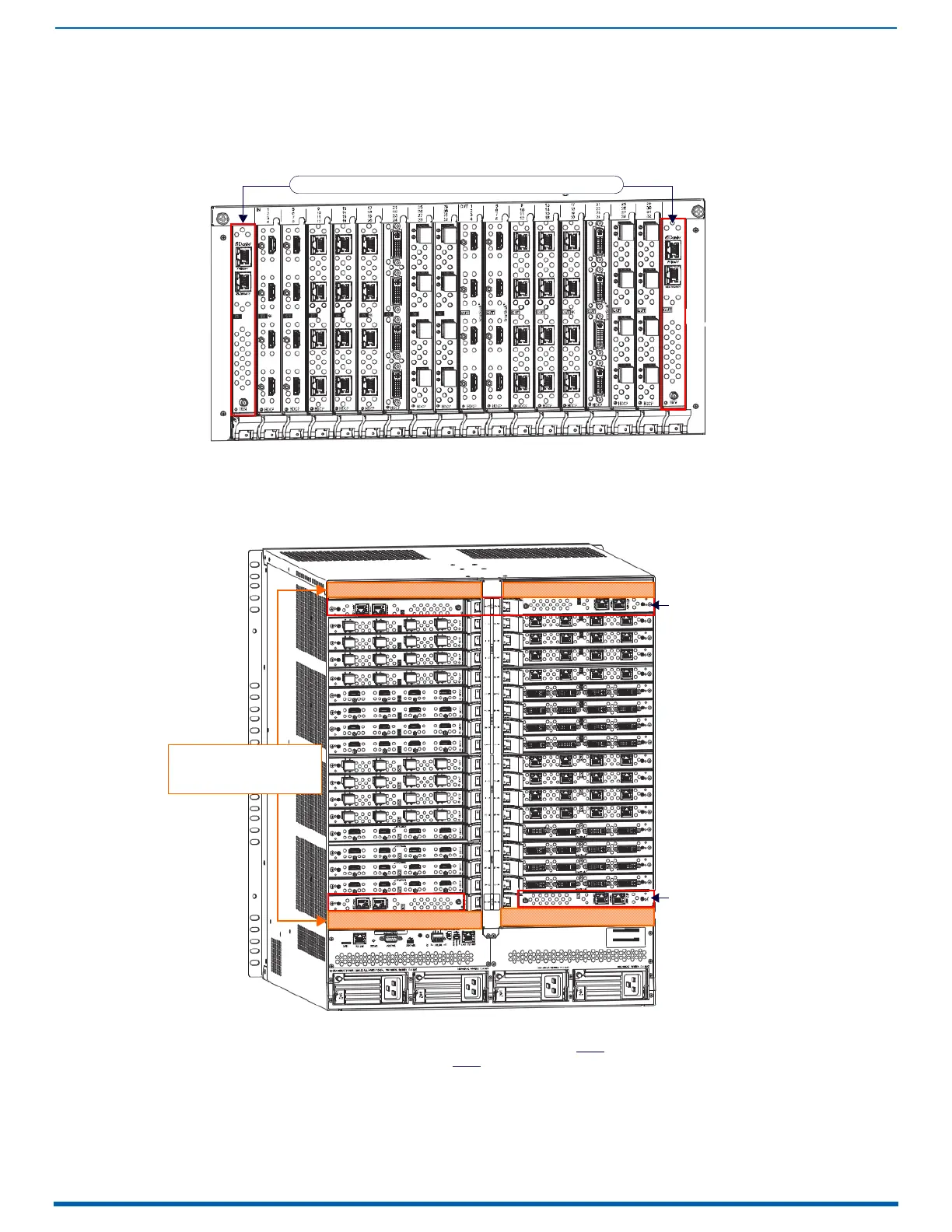

FIG. 63
Dante Audio Switching Boards - Enova DGX 3200 shown
FIG. 64 Dante Audio Switching Boards - Enova DGX 6400 shown
Dante Audio Switching Boards installed in Expansion slots
Dante Audio Switching Boards (Input)
installed in the appropriate Input
Expansion Board Slots
Dante Audio Switching Boards (Output)
installed in the appropriate Output
Expansion Board Slots
Do not install Dante Audio
Switching Boards in these
expansion slots
