Compression
Outputs Only - General
Levels & Delay

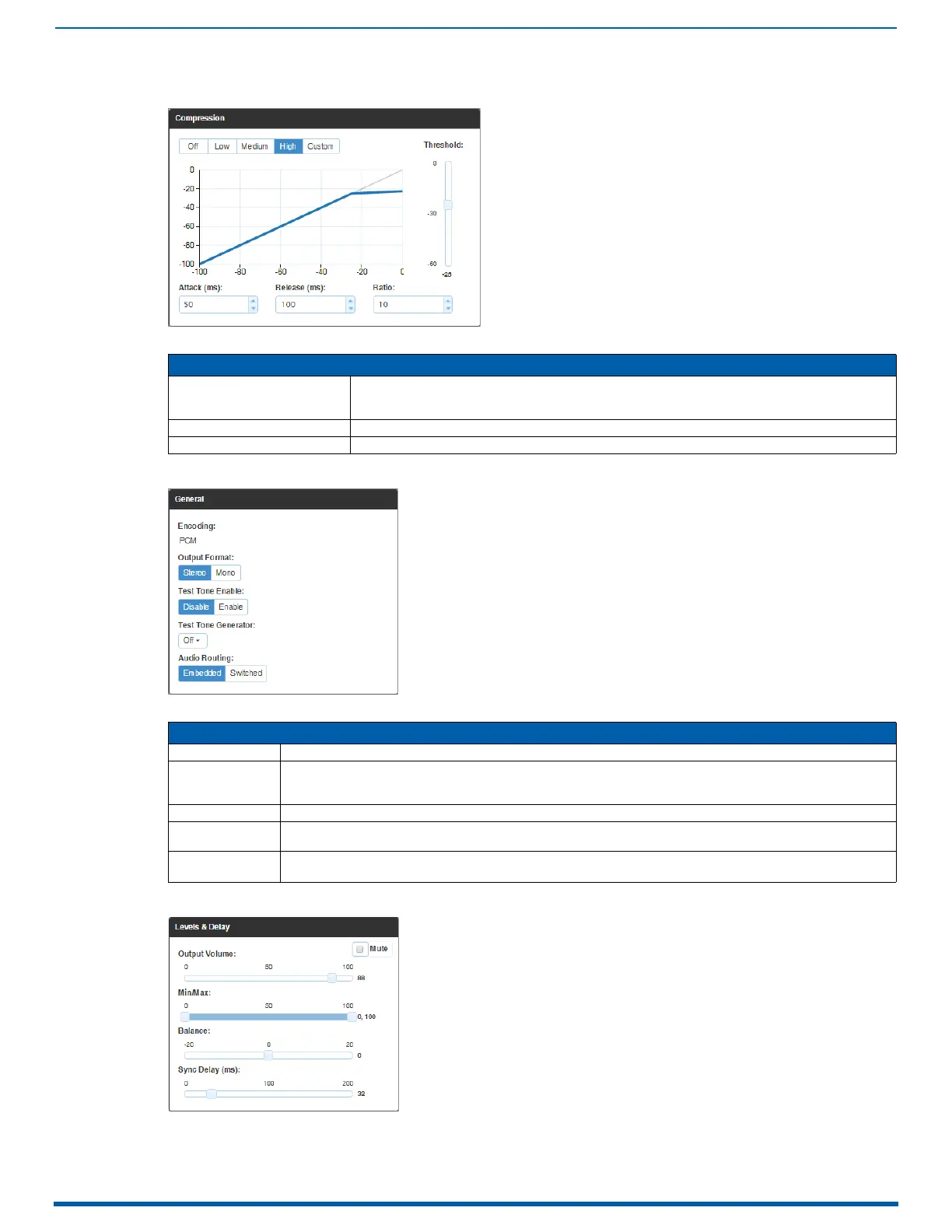

FIG. 112
Compression
Audio Settings - Compression
Buttons at top Click Off, Low, Medium, High, or Custom.
Note: When in Low, Medium, or High, changes to any of the other Compression settings will
automatically change the Compressor mode to Custom.
Threshold Use the slider bar to adjust (range: 0 to -60).
Attack (ms),Release (ms),Ratio Adjust the values in the boxes (either enter values or use the arrows)
FIG. 113 Audio Settings - Outputs Only - General
Audio Settings - Outputs Only - General
Encoding PCM (read only)
Output Format click Stereo or Mono.
Note: Setting this option to "Mono" audio on the output results in the left and right channels being combined and
sent to both the left and right output channels equally.
Test Tone Enable click Disable or Enable.
Test Tone
Generator
from the drop-down list, select Off, 60Hz, 250Hz, 400Hz, 1kHz, 3kHz, 5kHz, 10kHz, Pink Noise, or White Noise.
Audio Routing click Embedded or Switched.
Note: With Audio Switching Boards in the system, Audio Routing defaults to Switched.
