System Configuration Interface
197
Enova Digital Media Switchers - Hardware Reference Manual
10-Band Parametric Equalizer
DXLink Audio Settings
DXLink specific audio settings display when a DXLink Twisted Pair or DXLink Fiber Transmitter or Receiver (or other DXLink
equipment) is connected to the selected input or output. These settings display in addition to the normal audio settings for
the input or output described in the previous section. The Audio tabbed view must be selected.
DXLink (Twisted Pair or Fiber) Transmitter (for selected audio input)
NOTE: The 4k wall plate transmitter will only show the DxLink Details button which will only provide DxLink Quality data.
Audio Settings - Levels & Delay
Mute click Mute if desired.
Note: Changing the volume level will not un-mute the signal; however, the new volume level is saved
and when the Mute button is deselected, the volume returns at the new level.
Output Volume (0 to 100)
Min/Max (0 to 100)
Balance (-20 to 20, left to right)
Sync Delay (ms) (0 to 200)

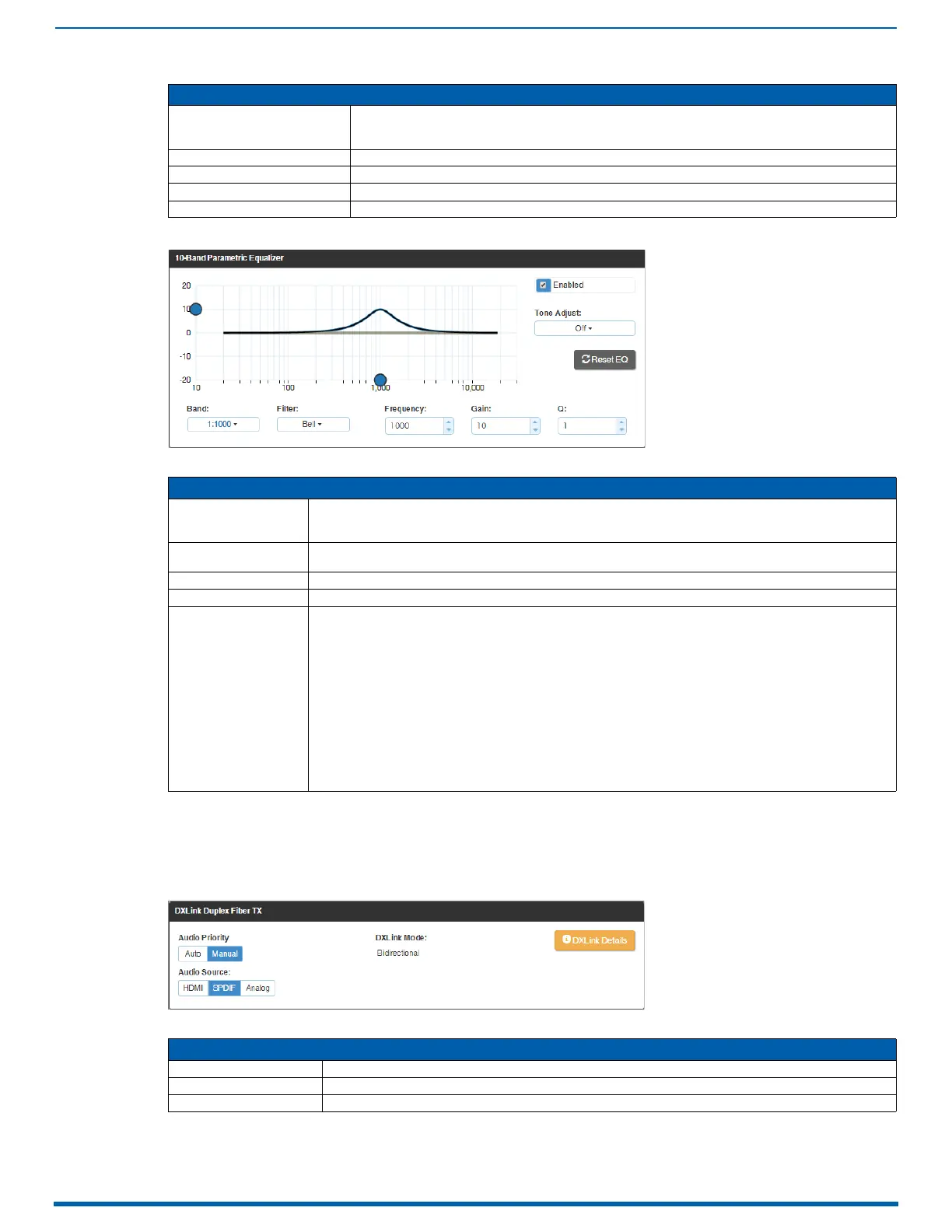

FIG. 115 10-Band Parametric Equalizer
Audio Settings - 10-Band Parametric Equalizer
Enabled this check box must be selected before the Equalizer options are available.
Note: On reboot, the Enabled box always returns to the checked (default) state. To disable the Equalizer
options over a reboot, set the "y" (vertical) vertex to 0 (zero).
Tone Adjust use the drop-down box to select: Off, Voice, Music, or Movie (Tone Adjust is applied on top of any equalizer
adjustments).
Reset EQ Click to reset the all of the Equalizer values.
Blue Handles Use the sliders (blue handles) to adjust Equalizer values.
Equalizer Drop-down
menus
The following drop-down lists can also be used to adjust Equalizer values.
• Band – numbered from 1 to 10.
• Filter – the options are Bell, Band Pass, Band Stop, High Pass, Low Pass, Treble Shelf, and Bass Shelf.
• Frequency – the adjustment range is from 20 to 20000 (Hz).
• Gain – the adjustment range is from -12 to 12.
• Q – the adjustment range depends on the filter selected:
Bell = 0.1 to 20
Band Pass = 0.1 to 20
Band Stop = 0.1 to 20
High Pass = 0.5 to 1.4
Low Pass = 0.5 to 1.4
Treble Shelf = 0.5 to 1
Bass Shelf = 0.5 to 1
FIG. 116 DXLink (Twisted Pair or Fiber) Transmitter Settings
DXLink Transmitters Settings
Audio Priority Click either the Auto or Manual button.
Audio Source Click either the HDMI, SPDIF, or Analog button
DXLink Details button Click to display additional settings for the DXLink Transmitter.
