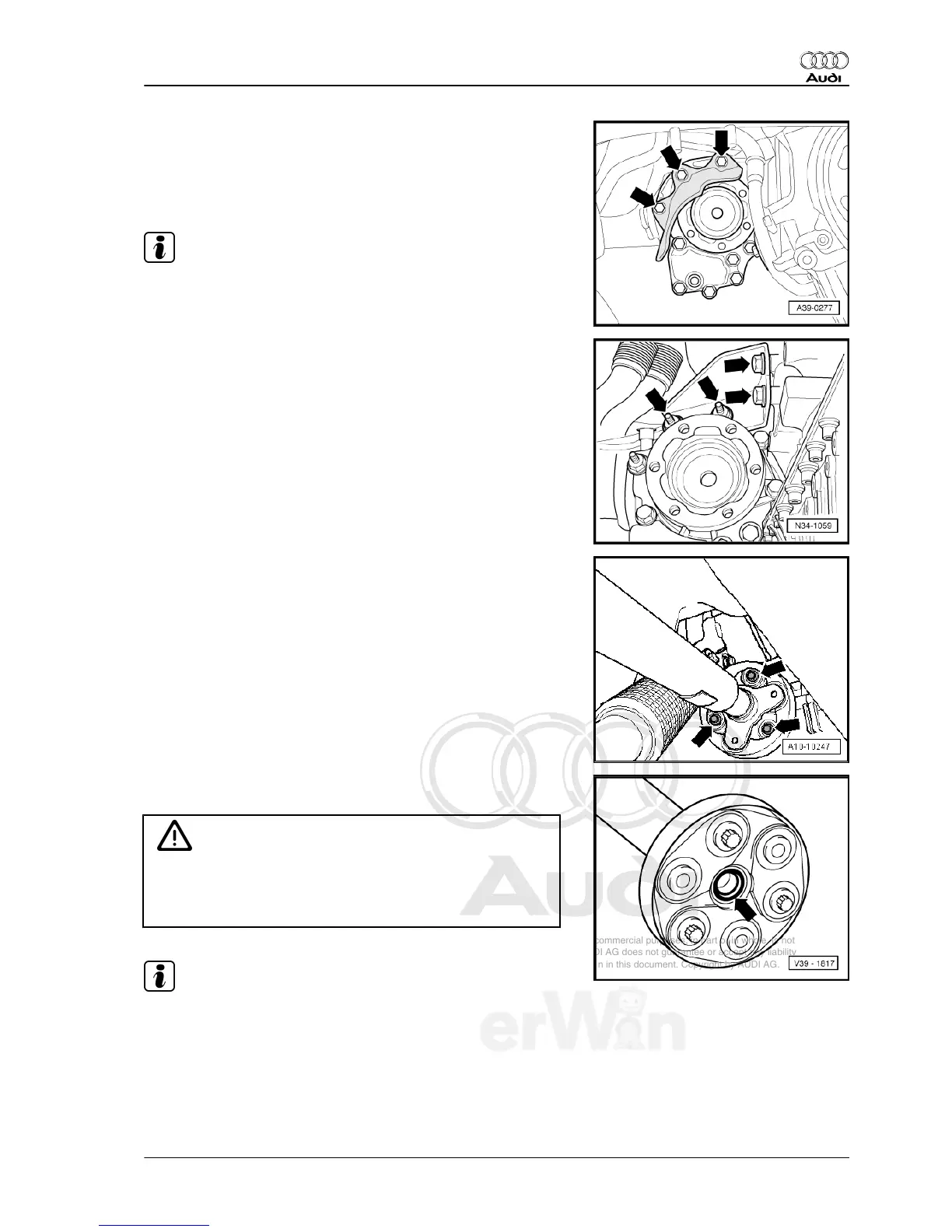

– Remove right drive axle heat shield from bevel box -arrows-.
– Remove the left drive axle from transmission flange shaft .
– Remove the right drive axle from the bevel box flange shaft .
– Raise drive axles and secure with cable ties.
Note
Make sure drive axle protective coating is not damaged.
– Remove the bolts -arrows- and remove the bevel box bracket.
– Identify position of flexible disc and bevel box flange to each
other.
– Remove driveshaft flexible disc from bevel box -arrows- while
counterholding at triangular flange with a lever.
– Press engine/transmission assembly slightly forward (toward
front end) and pull off driveshaft from bevel box.
Caution
Risk of damaging sealing ring -arrow- in driveshaft flange.
♦ Press driveshaft horizontally as far back and to the right
side of the vehicle as possible.
Note
If seal is damaged, driveshaft must be replaced.
– Tie driveshaft up.
Audi TT 2007 ➤
Manual Transmission - Edition 10.2009
4. Removal and Installation 103
