Assembling Locking Collar/Synchronizer Hub for 1st and 2nd
Gears as well as 3rd and 4th Gears

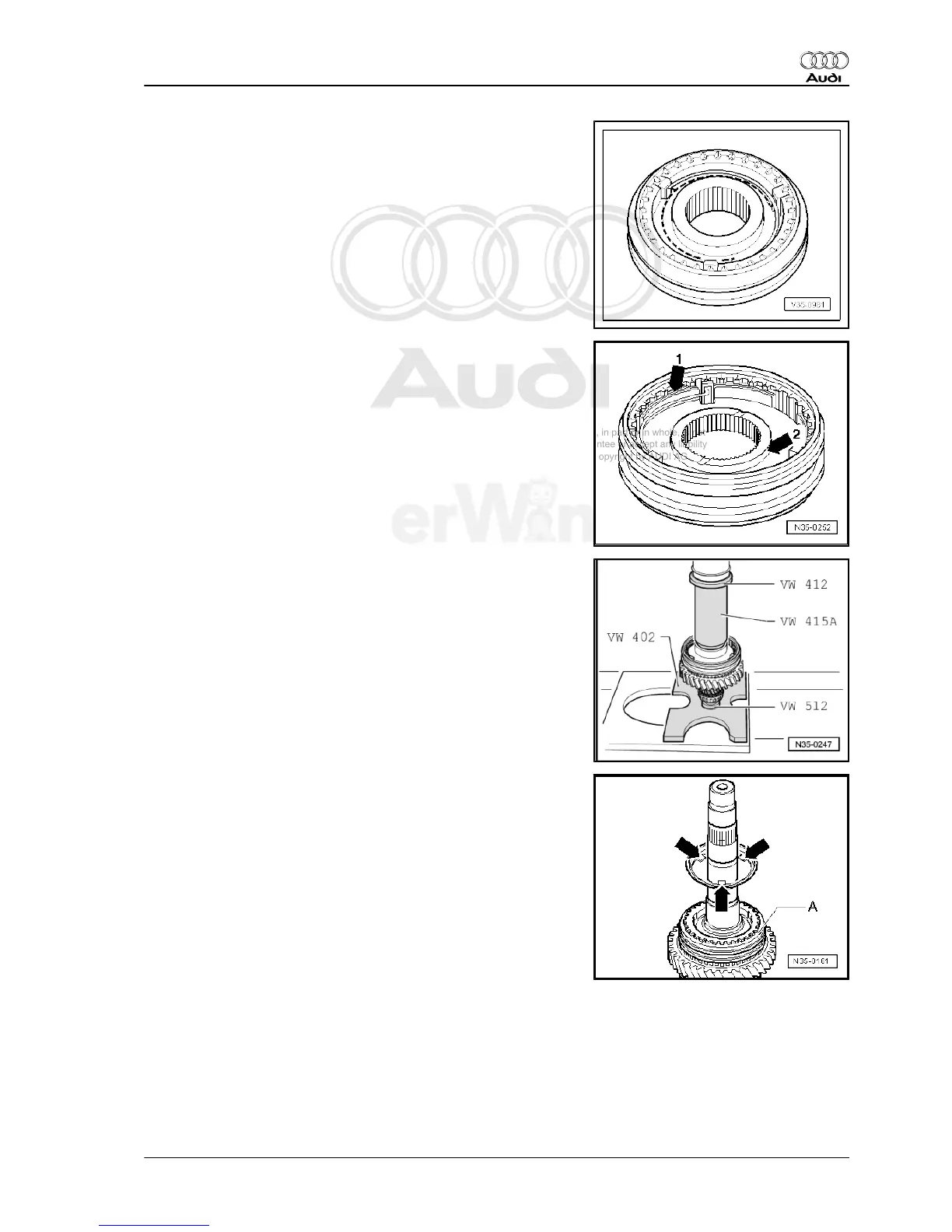

• The locking collar is pushed over the synchronizer hub.
– Insert locking pieces and install the springs 120° offset.
• Spring must engage with angled end into hollow engaging
piece.
Installation Position of Locking Collar/Synchronizer Hub for 1st
and 2nd Gear
• The identification groove -arrow 1- and thin collar -arrow 2- of
synchronizer hub point to 1st gear.
Pressing on locking Collar/Synchronizer Hub for 1st and 2nd Gear
– Then install circlip.
Installation Position of Outer Ring for 1st and 3rd Gear
• Tabs -arrows- point to synchronizer hub/locking collar -A-.
Audi TT 2007 ➤
Manual Transmission - Edition 10.2009
3. Disassembly and Assembly 199
