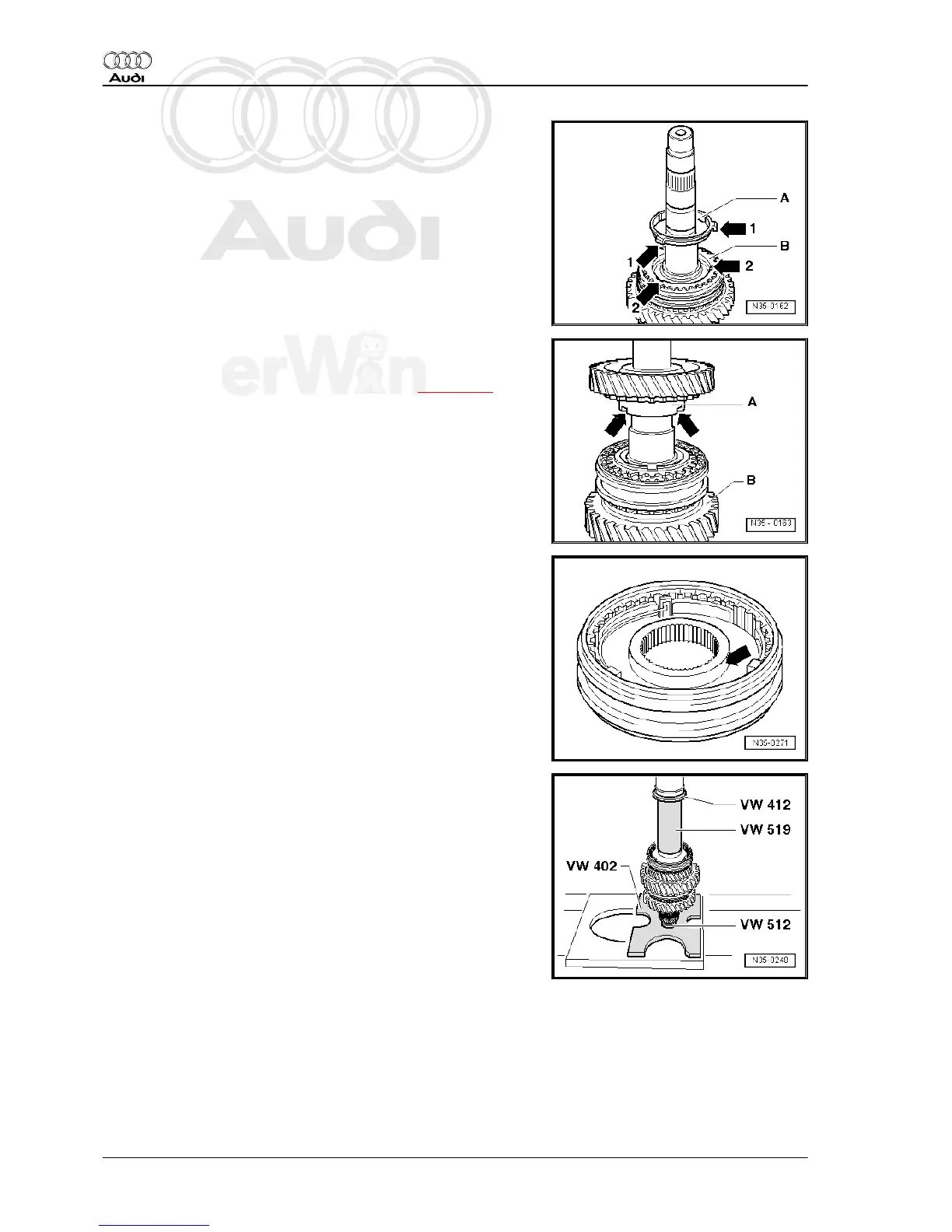

Installed Position of Synchronizer Ring -A- (inner ring for 1st and
3rd gear)
• Tabs -arrows 1- engage into cut-outs -arrows 2- of synchron‐
izer ring -B-.
Installation Position of Selector Gear for 1st and 3rd Gear
• The higher collar -A- points to 2nd and 4th gear -B-. Recesses
in collar -arrows- engage into outer race tabs ⇒ page 199 .
Installation Position of Locking Collar/Synchronizer Hub for 3rd
and 4th Gear
• Wider collar of synchronizer hub -arrow- points to 3rd gear.
Pressing on Synchronizer Hub with Locking Collar for 3rd and 4th
Gears
– Then install circlip.
Audi TT 2007 ➤
Manual Transmission - Edition 10.2009
200 Rep. Gr.35 - Gears, Shafts
