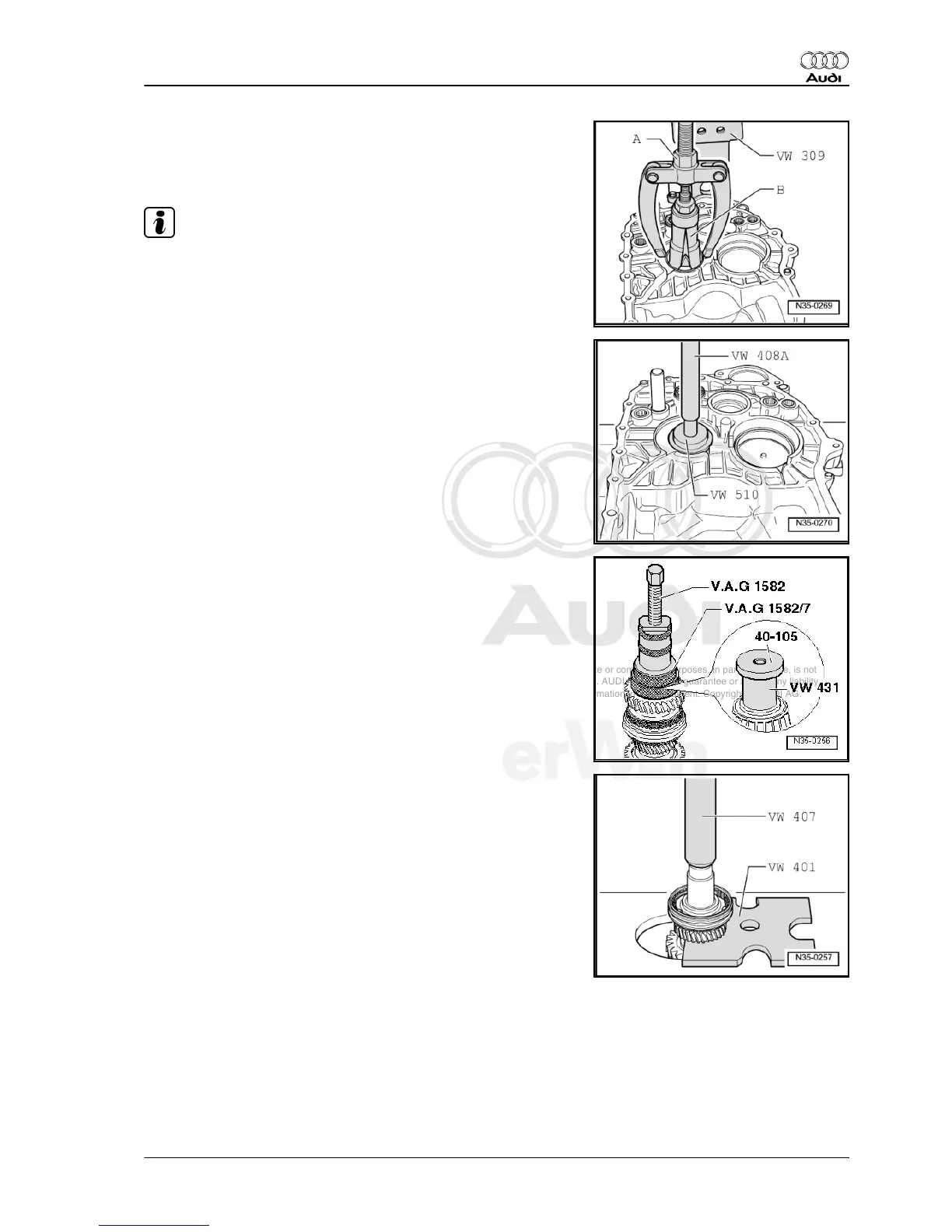

Pulling Out Tapered Roller Bearing Outer Race
A - Support , for example -Kukko 22/2-
B - Internal puller 46...58 mm , for example -Kukko 21/7-
Note
After pulling off, check the adjustment shim for damage and re‐
place if necessary.
Press the Outer Ring for the Tapered Roller Bearing into the
Clutch Housing
– Place the adjustment shim under the outer ring.
– Support clutch housing directly beneath bearing mount using
-40 - 20- .
Pulling off Inner Race for Tapered Roller Bearing
– Remove circlip.
– Before attaching extractor, place -VW 431- and -40 - 105- on
output shaft.
Pressing Off Synchronizer Hub/Locking Collar for 5th and 6th
Gear with Selector Gear for 6th Gear
– Before pressing off, remove circlip.
Audi TT 2007 ➤
