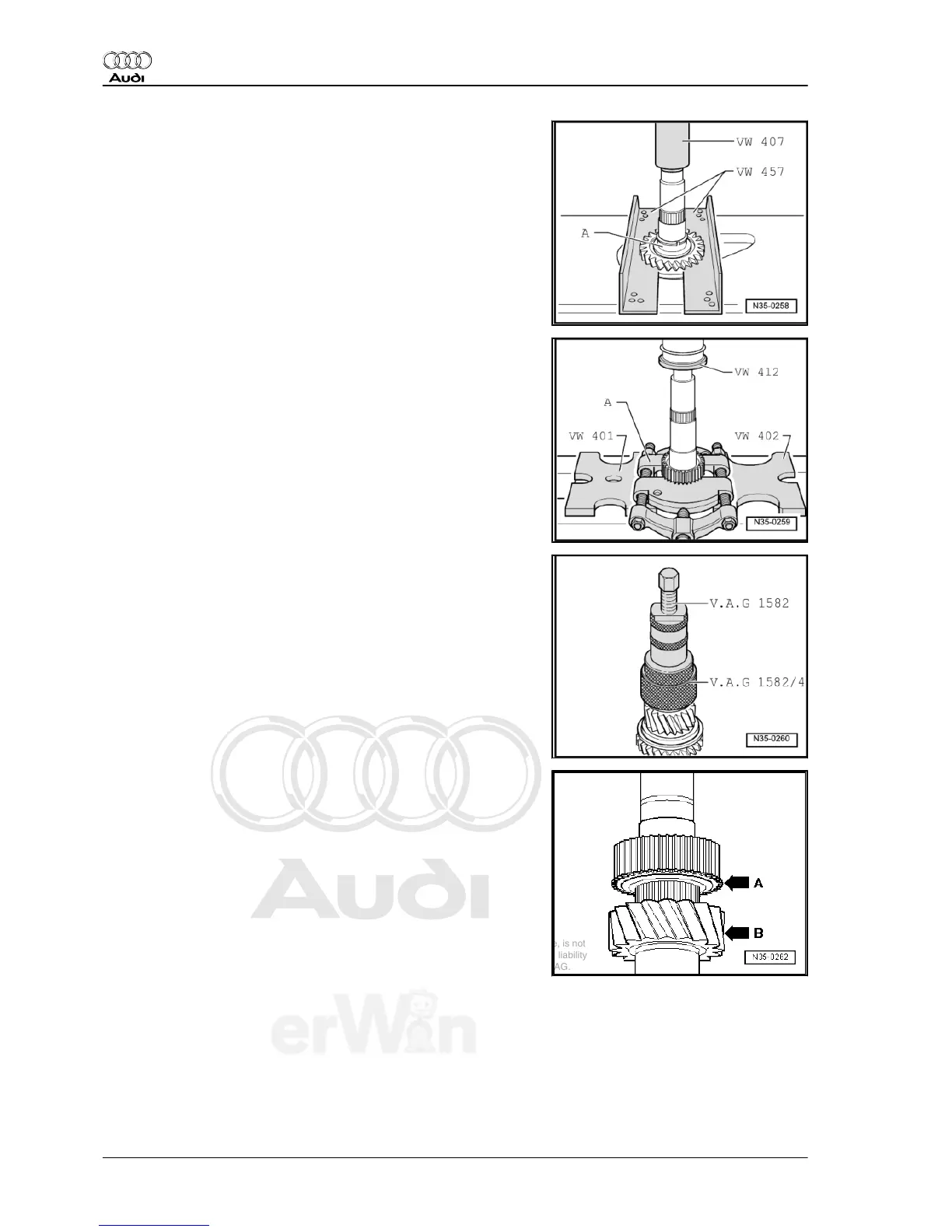

Pressing Off Sleeve -A- over Reverse Gear Selector Gear
– Before pressing off, remove circlip.
Pressing Off Synchronizer Hub for Reverse Gear
– Before pressing off, remove circlip.
A - Separating device 22 to 115 mm , for example -Kukko 17/2-
Pulling Off Inner Race for Tapered Roller Bearing
– Before installing puller, set -30 - 11- onto output shaft.
Installation Position of Synchronizer Hub for Reverse Gear
• Stop -arrow A- for reverse gear locking collar points toward
output shaft splines -arrow B-.
Audi TT 2007 ➤
Manual Transmission - Edition 10.2009
204 Rep. Gr.35 - Gears, Shafts
