Avaya MCC1 - Install TDM;LAN Bus Terminators [From G3 V4 Vs;R5 Vs;R6 Vs]; Swing Existing System into Maintenance Position [From G3 V4 Vs;R5 Vs;R6 Vs]

G3V4vs/R5vs/R6vs to Avaya Communication Manager
Task List: DEFINITY vs to Avaya Communication Manager
150 SI Installation and Upgrades
June 2004
Install TDM/LAN bus terminators [from
G3V4vs/R5vs/R6vs]
Return to Task List
1 Install the 2 AHF110 TDM/LAN bus terminators in slots 02 and 20 of the cabinet (see Location of
TDM/LAN bus terminators).

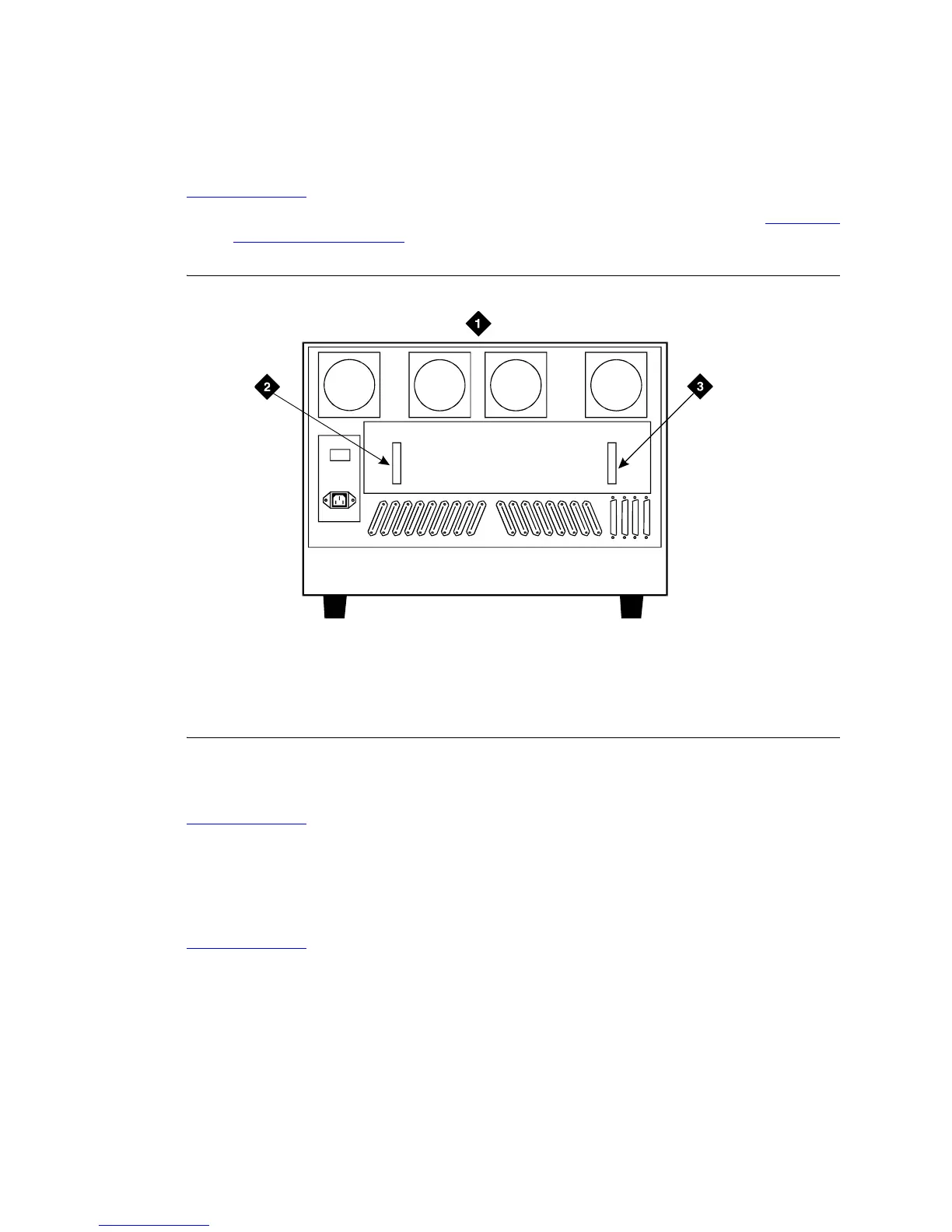

Figure 5: Location of TDM/LAN bus terminators
Return to Task List
Swing existing system into maintenance
position [from G3V4vs/R5vs/R6vs]
Return to Task List
1 While lifting on the left side of the existing cabinet, allow the left side to swing outward and to the
right.
Figure notes
1 Rear of control cabinet
2 TDM/LAN bus terminator in slot 22
3 TDM/LAN bus terminator in slot 02
22
21 0001
02
030405060708
09
101112131415161718192023
scdf01a CJL 08139
6
