Install Telecommunications Cabling
Main Distribution Frame Labels
SI Installation and Upgrades 409
June 2004
Figure 138: Typical 110P-Type Terminal Blocks (MCC1)
Main Distribution Frame Labels
Figure 139, Label Graphic Symbols and Nomenclature, on page 410 shows the graphic symbols used on
labels for the system, cross-connections, information outlets, and cables. The labels are color-coded to
identify system wiring:
• Green — To Central Office (CO)
• Purple — To system ports
• Yellow — To auxiliary equipment and miscellaneous system leads
• Blue — To information outlets
• White — From Main Distribution Frame to satellite locations (3-pair)

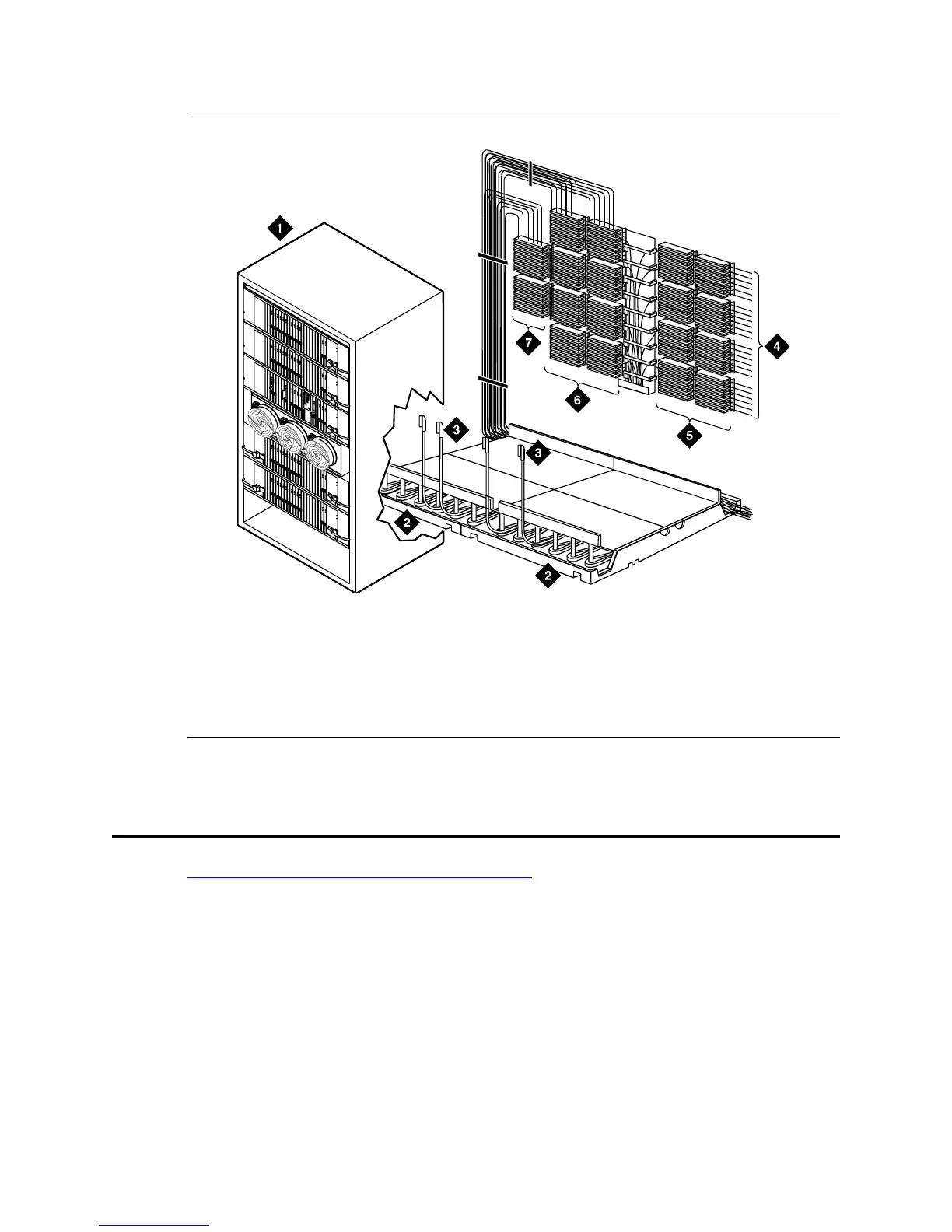

Figure notes
1 Multi-Carrier Cabinet (MCC1)
2 Z113A Cable Slack Manager
3 25-Pair Cable to System Cabinet
4 Station Cables
5 Station Distribution Field
6 Port Distribution Field
7 Trunk/Auxiliary Field
