Avaya MCC1 - Connecting a Port Carrier to a Switch Node Carrier (TN1654 DS1 Converter)

Install and Administer Trunks
Add TN1654 DS1 Converter (r only)
684 SI Installation and Upgrades
June 2004
3 Connect an H600-348 Quad cable to the other side of the Y cable.
4 Skip to Connecting Through a Channel Service Unit on page 685.

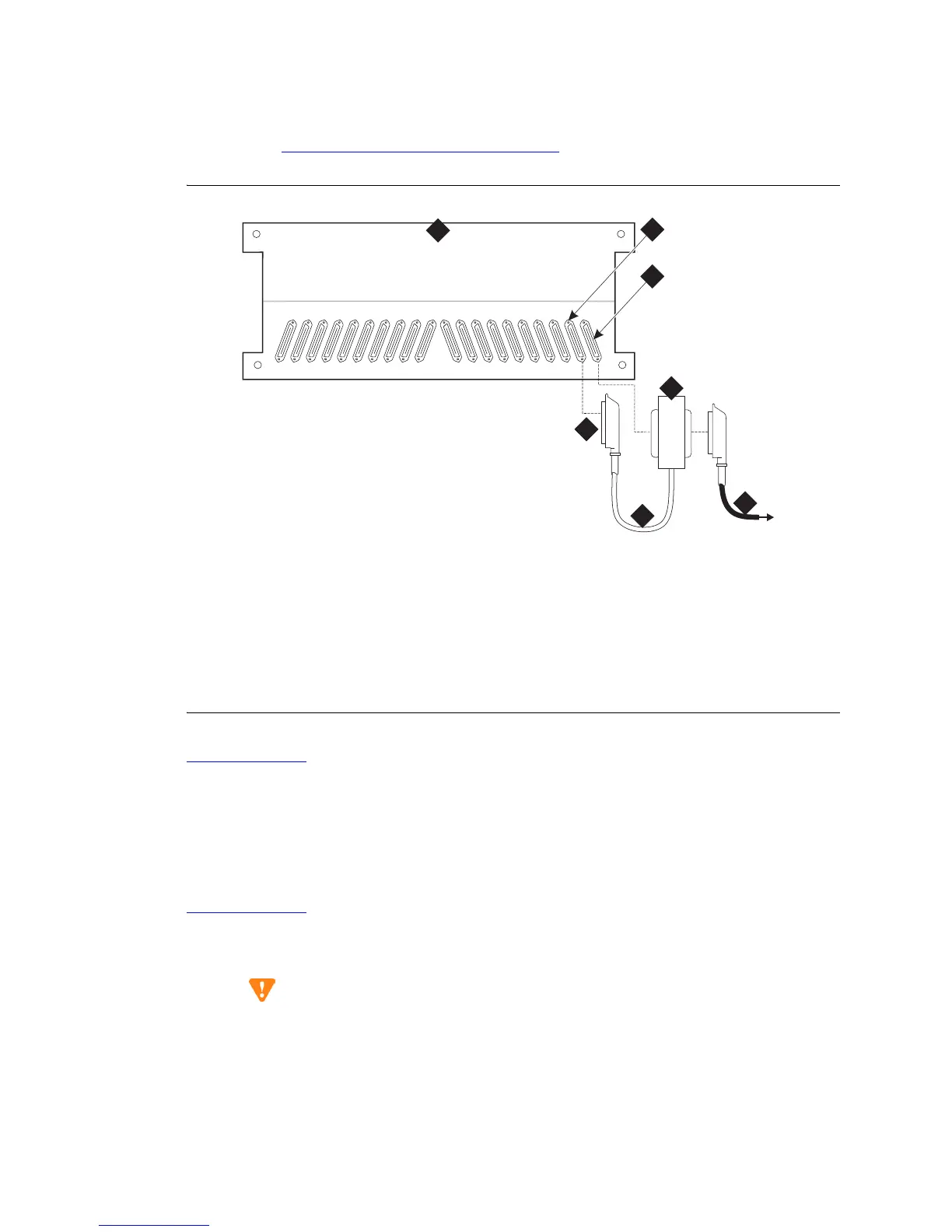

Figure 277: DS1 Converter Connections — Part 1
Return to Task List
Connecting a Port Carrier to a Switch Node
Carrier
(TN1654 DS1 Converter)
Return to Task List
1 When the TN1654 circuit pack is in a port carrier and the TN 573B SNI circuit pack is in the
Switch Node Carrier, connect the two circuit packs with a 70-in. (178 cm) Y Cable.
CAUTION:
The Y cable used with the TN1654 circuit pack is different than the Y cable used with the
TN574 circuit pack. These cables are NOT interchangeable.
2 Connect an H600-348 Quad cable to the other side of the Y cable.
Figure notes
1 Port cabinet
2 Backplane connector for TN570D EI
3 Backplane connector for TN1654 DS1
Converter
4 50-pair female connector to EI
connector
5 14-in. (35.6 cm) Y cable
6 50-pin male/50-pin female double-
headed connector
7 H600-348 Quad Cable (with 50-pin
male connector), which connects the Y
cable to the 4 CSUs.
cydf010 KLC 091399
20
19
161718 15 14 13 12 11
10
09 08 07 06 05 04 03 02 01
1
4
5
6
7
A
2
3
