Adjuncts and Peripherals
.Install ISDN converters and adapters
828 SI Installation and Upgrades
June 2004
.Install ISDN converters and adapters
This section provides information on ISDN converters and adapters that are sometimes necessary when
connecting to coaxial facilities in either a multicarrier cabinet or a single carrier cabinet.
Connections include:
• Integated Services Data Network Primary Rate Interface (ISDN-PRI) to Direct Access Secondary
Storage (DASS)
• PRI to Digital Private Network Signaling System (DPNSS)
• PRI to ISDN Basic Rate Interface (ISDN-BRI)
Converter circuit packs known as common channel signaling converter (CCSC), types 1 and 2.
Converters for single-carrier cabinets
PRI-to-DASS and PRI-to-DPNSS converters
Figure 320 shows typical connections from the CCSC-1 PRI-to-DASS converter or the CCSC-2 PRI-to-
DPNSS converters to the coaxial facility.

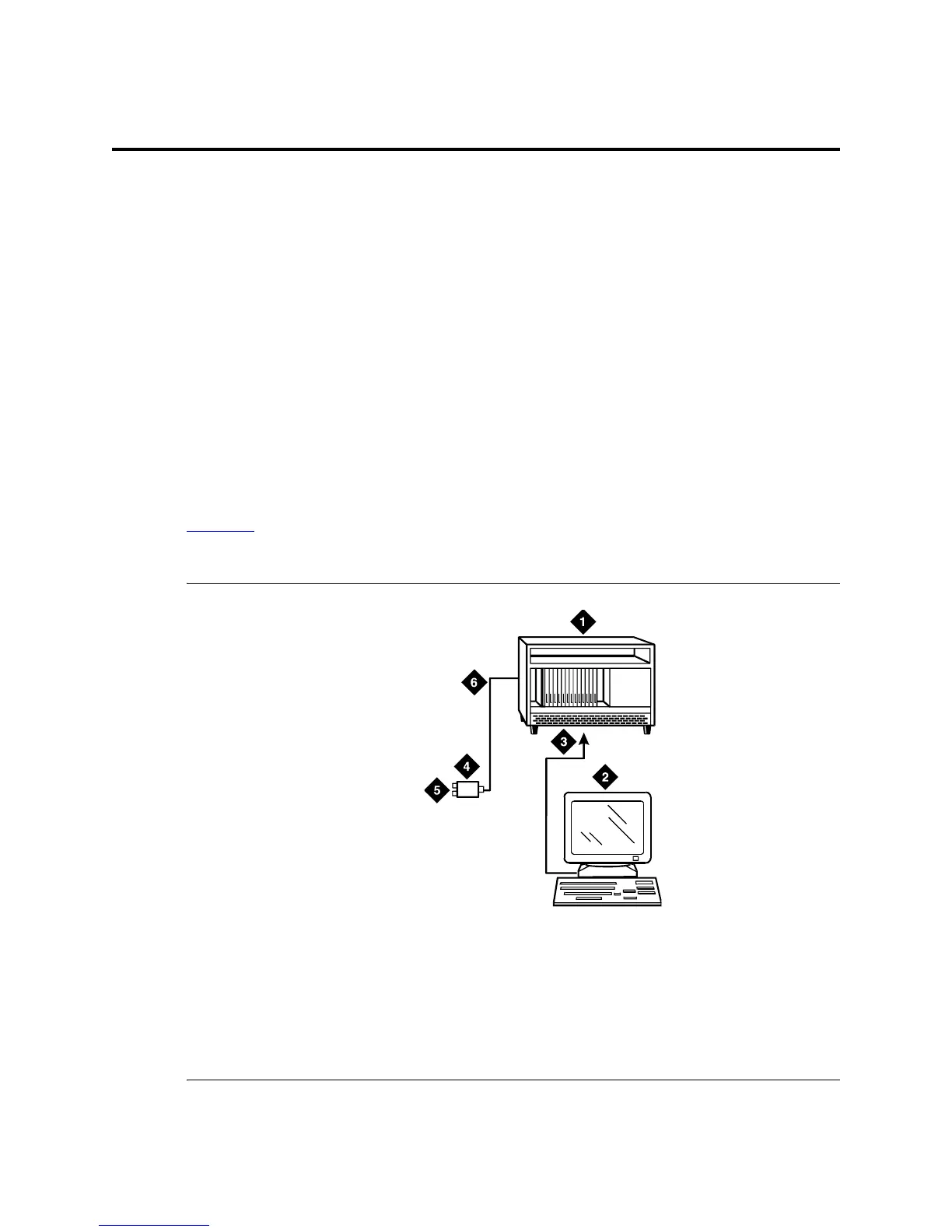

Figure 320: Typical DASS or DPNSS converter cabling
Figure notes
1 To TN464GP DS1 circuit pack and either a
CSCC-1 PRI-to-DASS converter or a CSCC-2
PRI-to-DPNSS converter circuit pack
2 Communication Manager administration PC
3 RS-232 cable to front of PRI converter circuit
pack
4 888B coaxial converter
5 Coaxial connection to 2-Mbps
facility
6 Coaxial cable from PRI
converter circuit pack to coaxial
converter
