Add Channel Service Units
Installing a 3150/3170 Channel Service Unit
SI Installation and Upgrades 655
June 2004

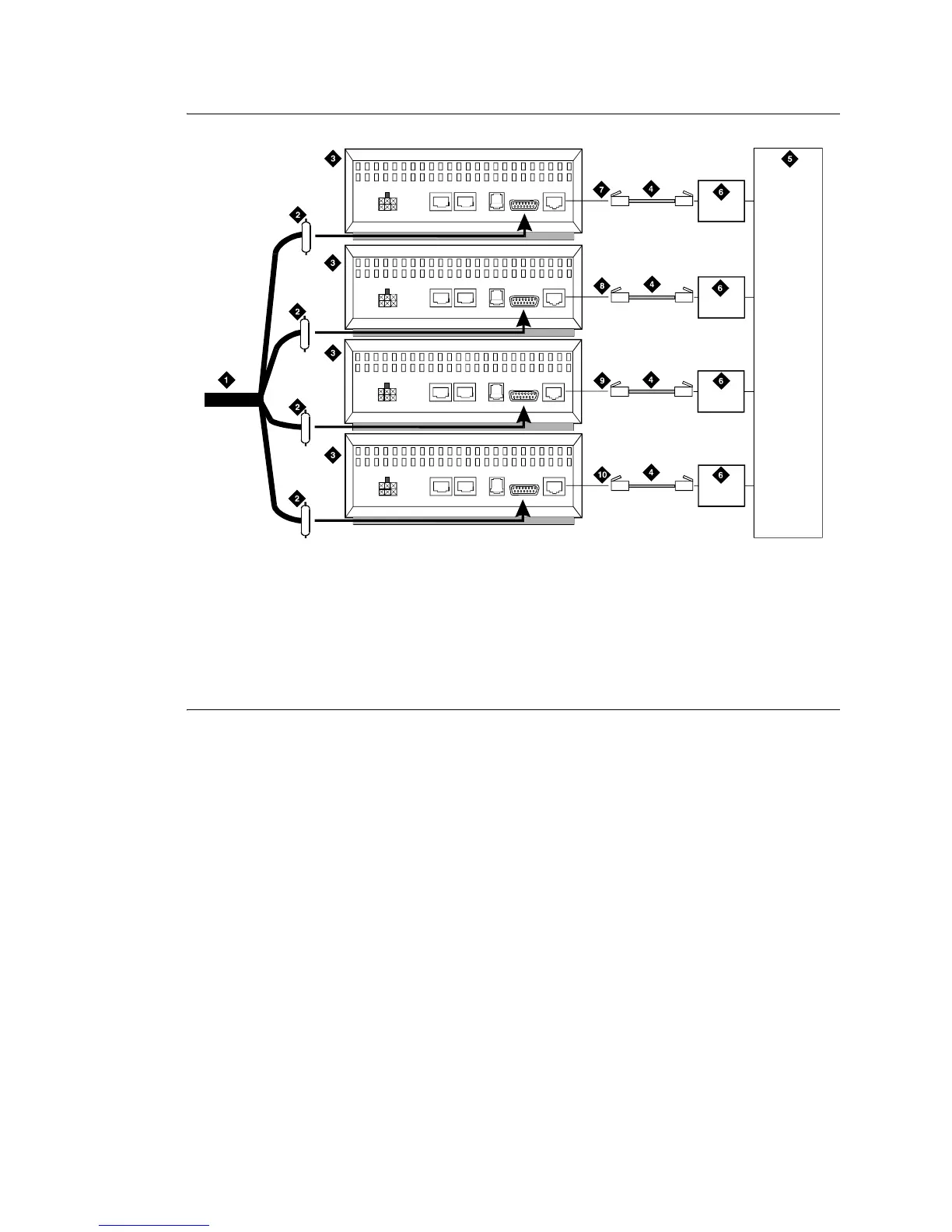

Figure 261: 3150/3170 Channel Service Unit Connections
Figure notes
1 H700-348 quad cable
2 15-pin male “D” connectors (to DTE jacks on CSU)
3 Channel service unit (CSU)
4 H700-307 cable (RJ-48C to RJ-48C)
5 Network interface
6 Smart jack (if provided)
7 Cable A
8 Cable B
9 Cable C
10 Cable D
3150csu RBP 062696
POWER
AUX PORT COM PORT MODEM
DTE
NETWORK
POWER
AUX PORT COM PORT MODEM
DTE
NETWORK
POWER
AUX PORT COM PORT MODEM
DTE
NETWORK
POWER
AUX PORT COM PORT MODEM
DTE
NETWORK
To Next Page
