Install and Administer Trunks
Add TN1654 DS1 Converter (r only)
686 SI Installation and Upgrades
June 2004

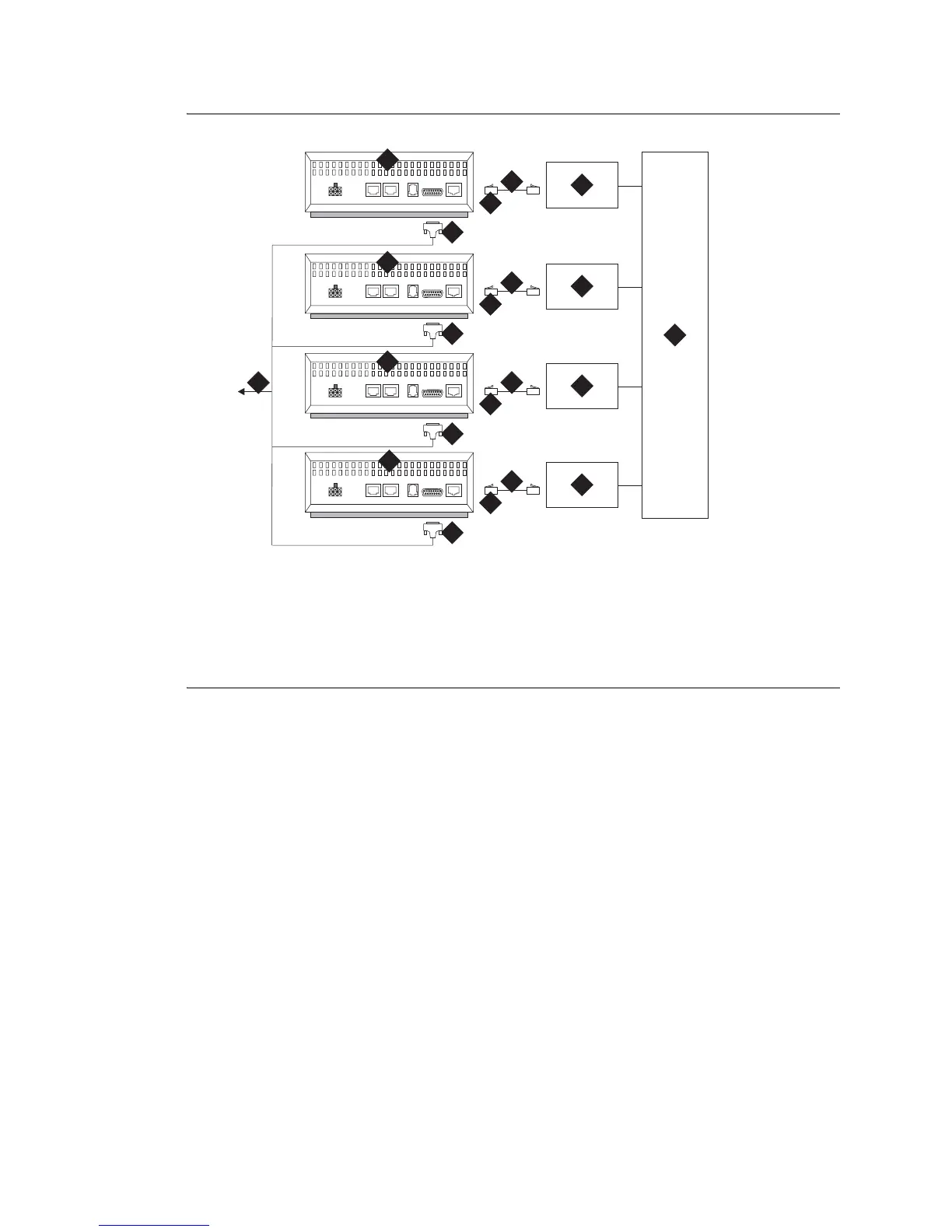

Figure 278: DS1 Converter Connections for T1 Service — Part 2
Figure notes
1 H600-348 Quad Cable
2 15-Pin Male D Connectors (to DTE Jacks on CSU)
3 Channel Service Unit (CSU)
4 H600-383 Cable (RJ-48C to RJ-48C)
5 Network Interface
6 700A Loopback Jack
7Cables
