Option Switch Settings
TN760E Tie Trunk Circuit Pack Option Settings
758 SI Installation and Upgrades
June 2004

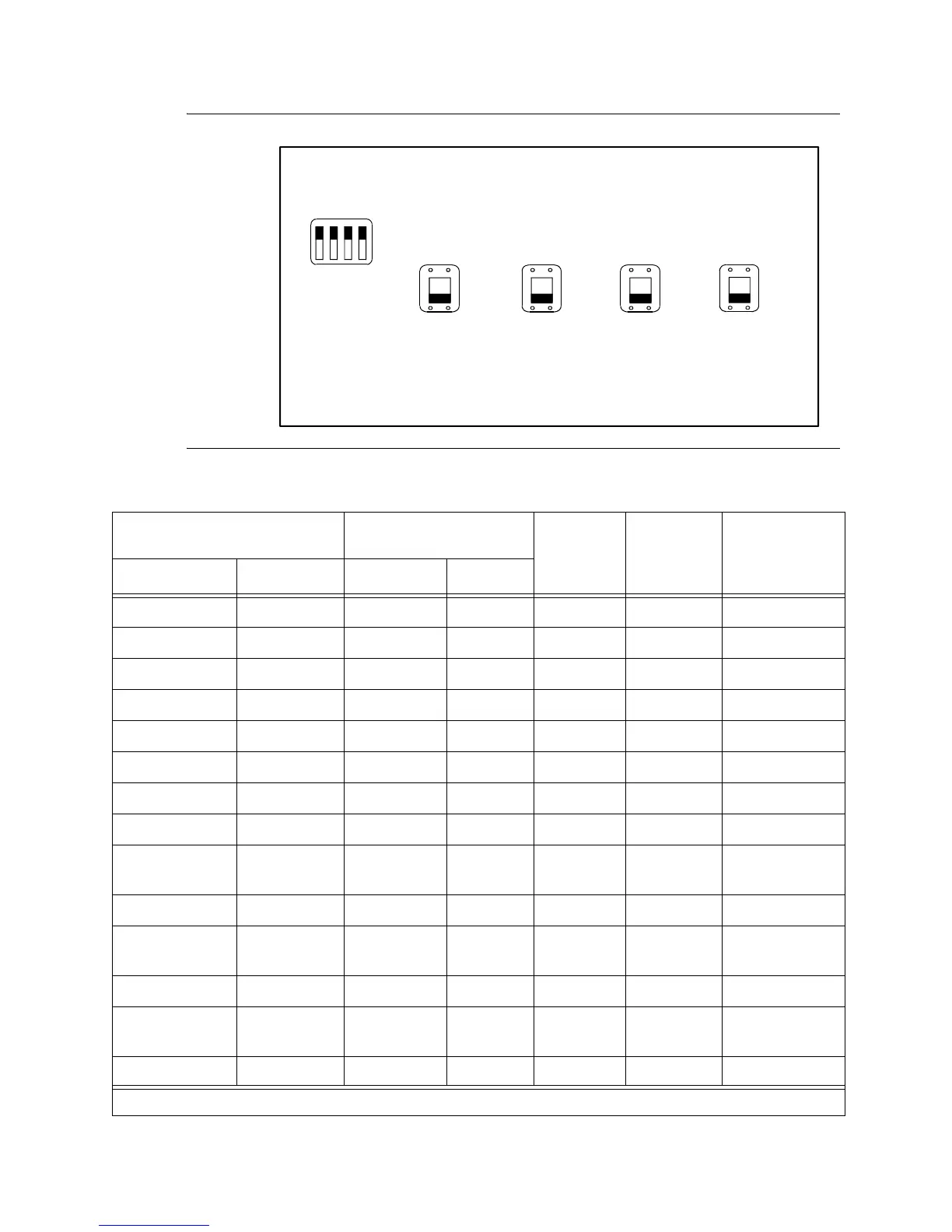

Figure 298: TN760E Tie Trunk Circuit Pack (Component Side)
4321
PORT 4 PORT 3
PORT 2
PORT 1
UNPROT
PROT
SMPLX
E&M
SMPLX
E&M
SMPLX
E&M
SMPLX
E&M
r7
58
1
83
RBP
050896
Table 40: TN760E Option Switch Settings and Administration
Installation Situation
Preferred Signaling
Format
Set E&M/
SMPLX
Option
Switch
Set Prot/
Unprot
Option
Switch
Administered
PortCircumstance To System Far-End
Co-Located Sys75/G1 Simplex Simplex SMPLX Either Type 5
Type 5 Type 5
Inter-Building Sys75/G1 Simplex Simplex SMPLX Either Type 5
Type 5 Type 5
Co-Located Sys85/G2 Simplex Simplex SMPLX Either Type 5
Type 5 Type 5
Inter-Building Sys85/G2 Simplex Simplex SMPLX Either Type 5
Type 5 Type 5
Co-Located DIMENSION E&M Type 1 E&M
Type 1
E&M Unprotected Type 1
PBX Compatible Standard Compatible
Inter-Building DIMENSION Protected
Type 1
Protected
Type 1
E&M Protected Type 1
PBX Compatible Standard Compatible
Co-Located Other E&M Type 1 E&M
Type 1
E&M Unprotected Type 1
Compatible Standard Compatible
1 of 2
