Brother MFC-9840CDW - Installing Procedure

Confidential
2-6
(3) Remove the Toner filter frame ASSY from the Paper eject ASSY DX.

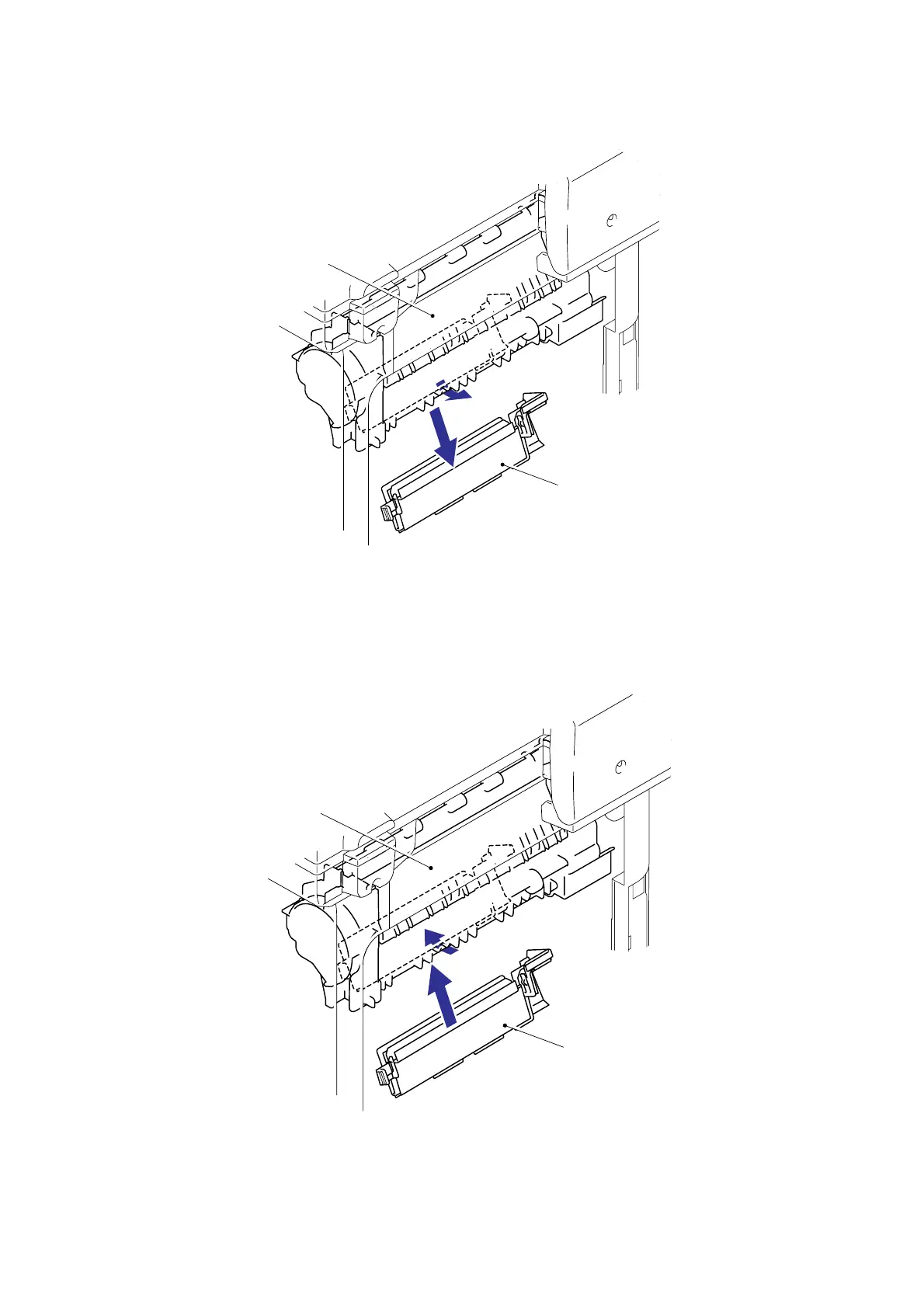

Fig. 2-3
<Installing Procedure>
(1) Assemble the Toner filter frame ASSY onto the Paper eject ASSY DX.
Fig. 2-4
Toner filter frame ASSY
Paper eject ASSY DX
Toner filter frame ASSY
Paper eject ASSY DX
3a
3b
1a
1b
