2.2 Procedures to Replace Periodical Replacement Parts
2.2.1 Fuser Unit & Toner Filter Frame ASSY
<Uninstalling Procedure>

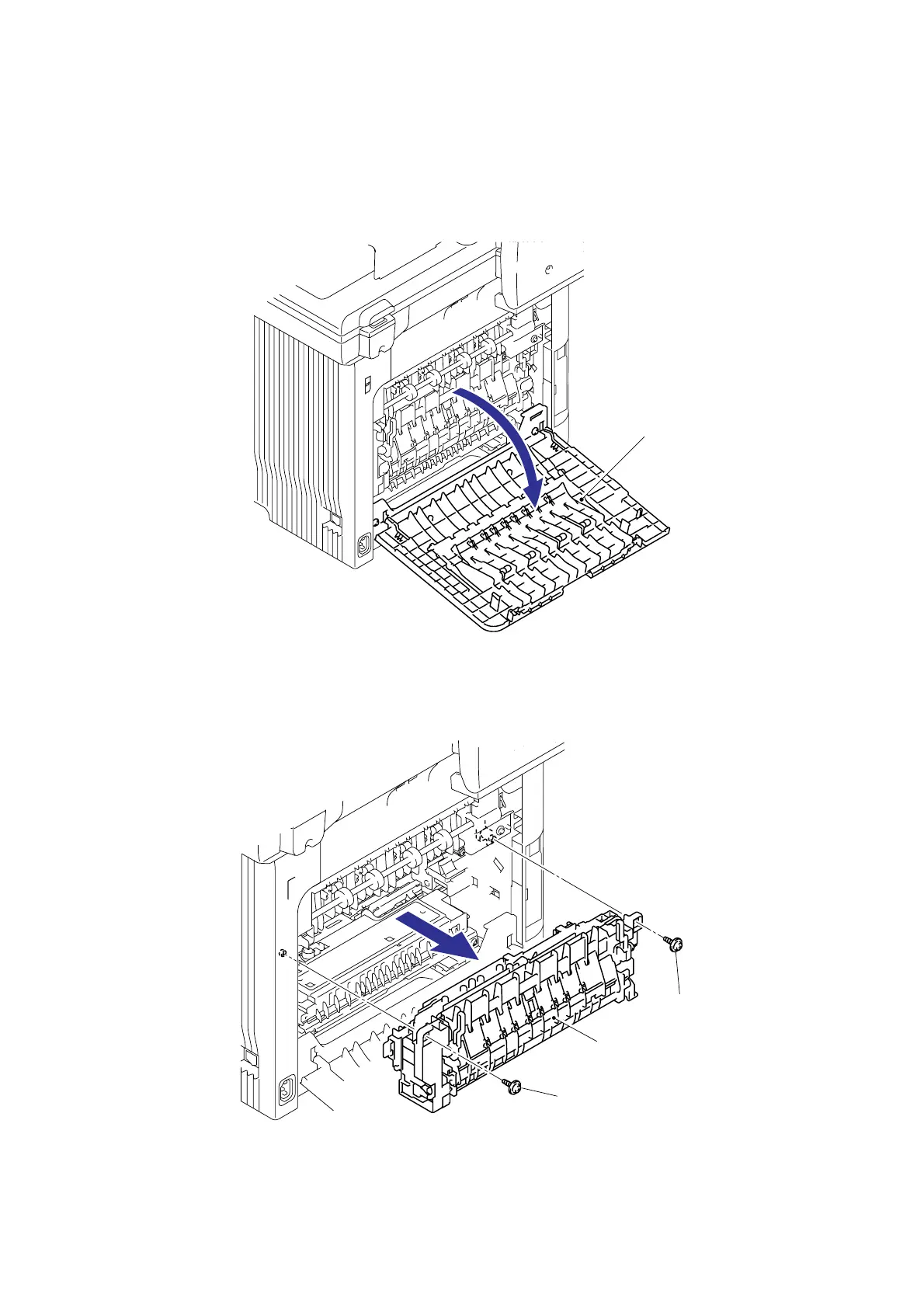

(1) Open the Back cover.
Fig. 2-1
(2) Remove the two pan B M4x14 Taptite screws, and then pull out the Fuser unit to the back
of the machine.
Fig. 2-2
Back cover
<Back side>
Fuser unit
Taptite, pan B M4x14
Taptite, pan B M4x14
<Back side>
