Brother MFC-9840CDW - Develop Drive Motor ASSY

Confidential
3-158
8.41 Develop Drive Motor ASSY

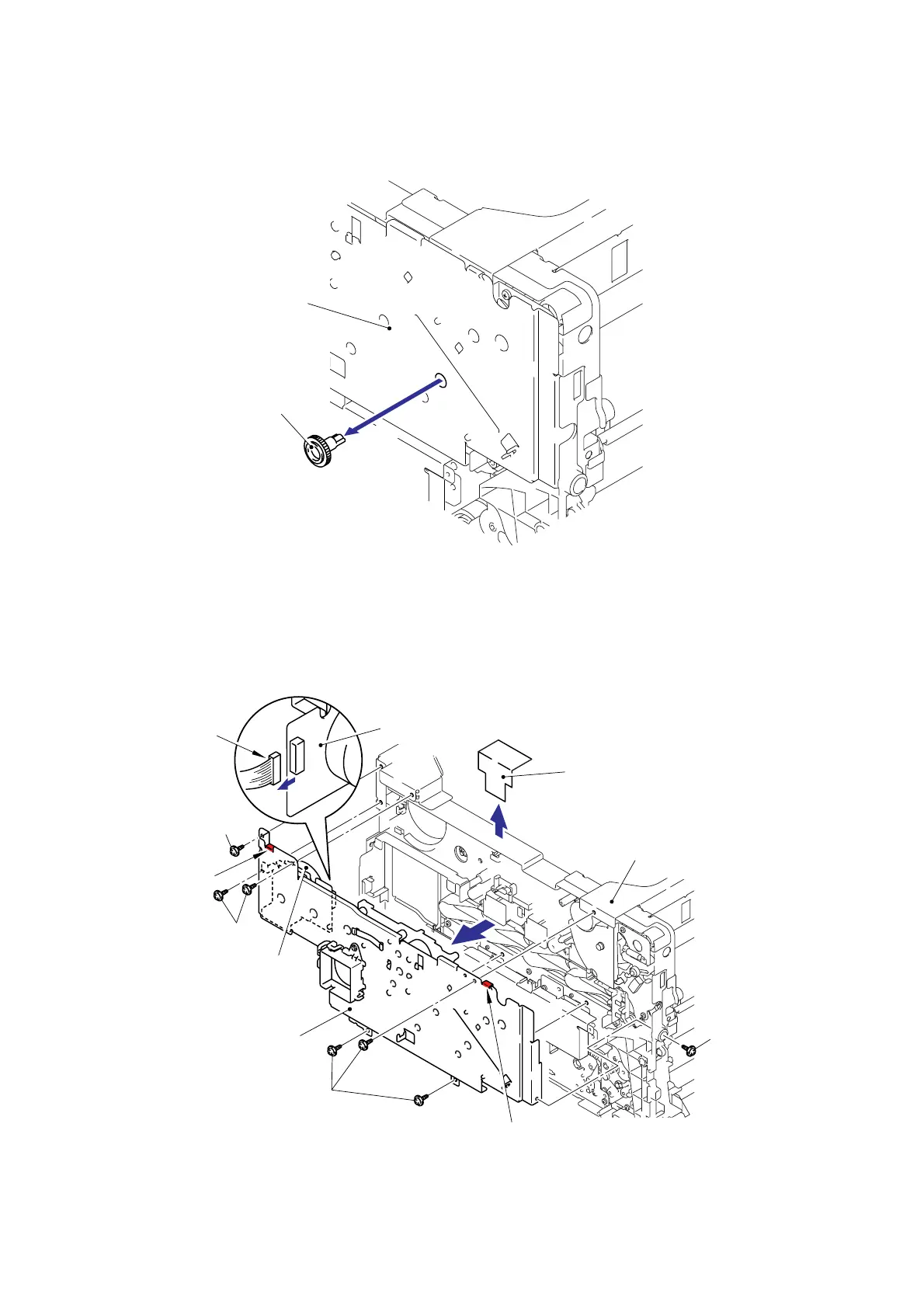

(1) Remove the Rack gear 27 from the Frame unit.
Fig. 3-225
(2) Remove the Alum sheet frame from the Develop gear plate ASSY.
(3) Remove the seven cup S M3x6 Taptite screws, and then remove the Develop gear plate
ASSY from the Frame unit. Disconnect the Connector from the Develop drive motor ASSY.
Fig. 3-226
Frame unit
Rack gear 27
Develop drive motor ASSY
Develop drive motor ASSY
Connector
Frame unit
Taptite, cup S M3x6
Develop gear plate ASSY
Taptite, cup S M3x6
Taptite, cup S M3x6
Hook
<Left side>
<Left side>
Taptite, cup S M3x6
Hook
A
lum sheet frame
2
3
