Brother MFC-9840CDW - Paper Feeding Kit (PF Kit1, PF Kit2)

Confidential
2-29
2.2.3 Paper Feeding Kit (PF Kit 1, PF Kit 2)
<Uninstalling Procedure>

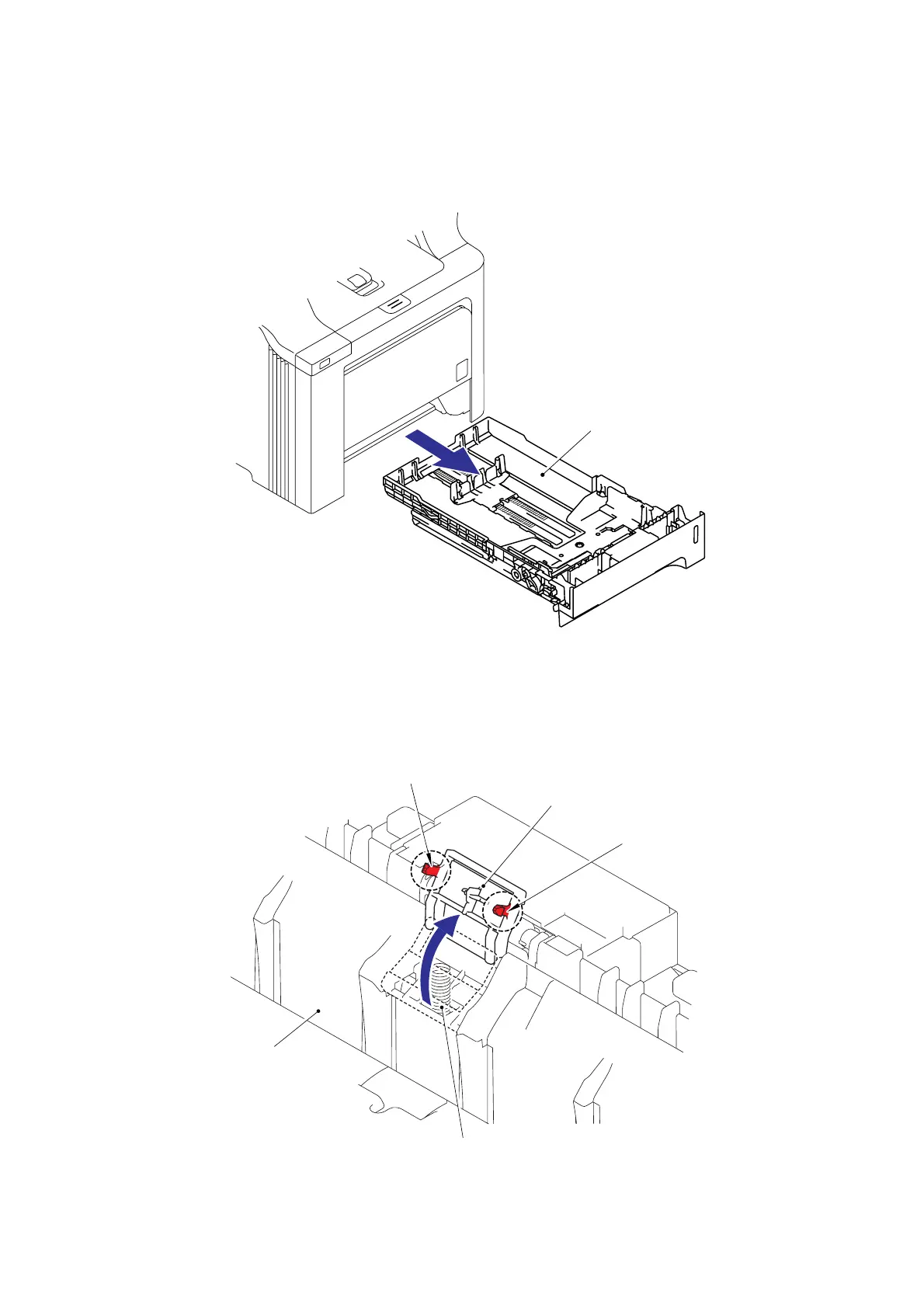

(1) Pull out the Paper tray, and remove the paper from the Paper tray.
Fig. 2-48
(2) Release the two Hooks of the Separation pad ASSY, and then lift up the Separation pad
ASSY.
Note:
Be careful not to loose the Separation pad spring.
Fig. 2-49
Paper tray
Hook
Hook
Separation pad ASSY
Paper tray
<Front>
Separation pad spring
