8.48 Toner Sensor PCB ASSY K, Y, M, C (TE/NEW)
(1) Remove the three cup B M3x10 Taptite screws, and then remove the Release drive holder
from the Frame unit.

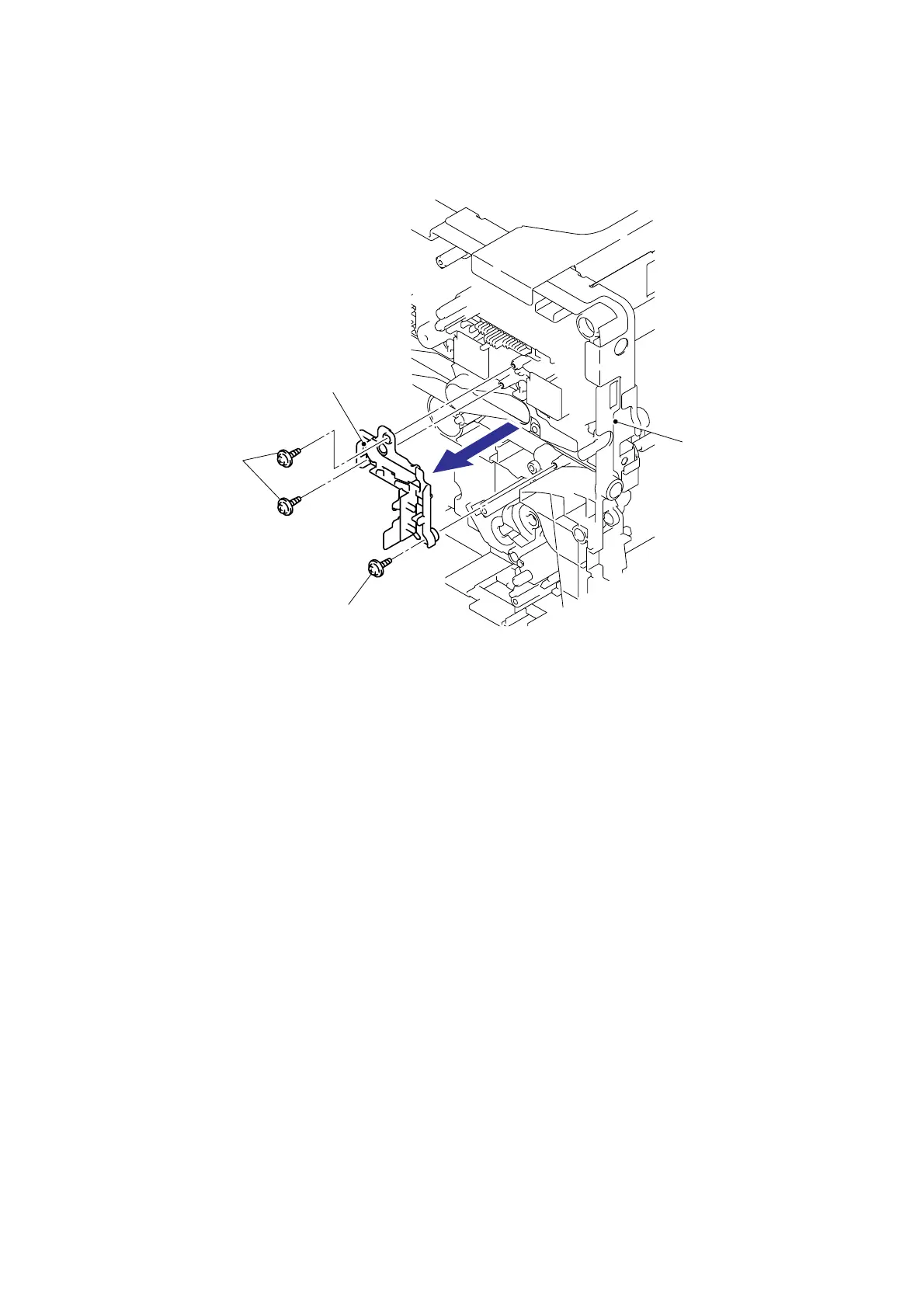

Fig. 3-253
*1
Tightening Note:
When tightening the screw, slowly turn it counterclockwise (in the direction to loosen the
screw) with your hand until you feel that the screw is a little dropped in the hole. Then,
slightly turn it clockwise (in the direction to tighten the screw) with your hand and tighten it
according to the specified torque with a screwdriver.
Frame unit
Release drive holder
Taptite, cup B M3x10
(Tightening torque: 0.70 ±0.1 N m) *1
Taptite, cup B M3x10
(Tightening torque:
0.70 ±0.1 N m) *1
<Left side >
