8.39 Waste Toner Near/Full Sensor ASSY

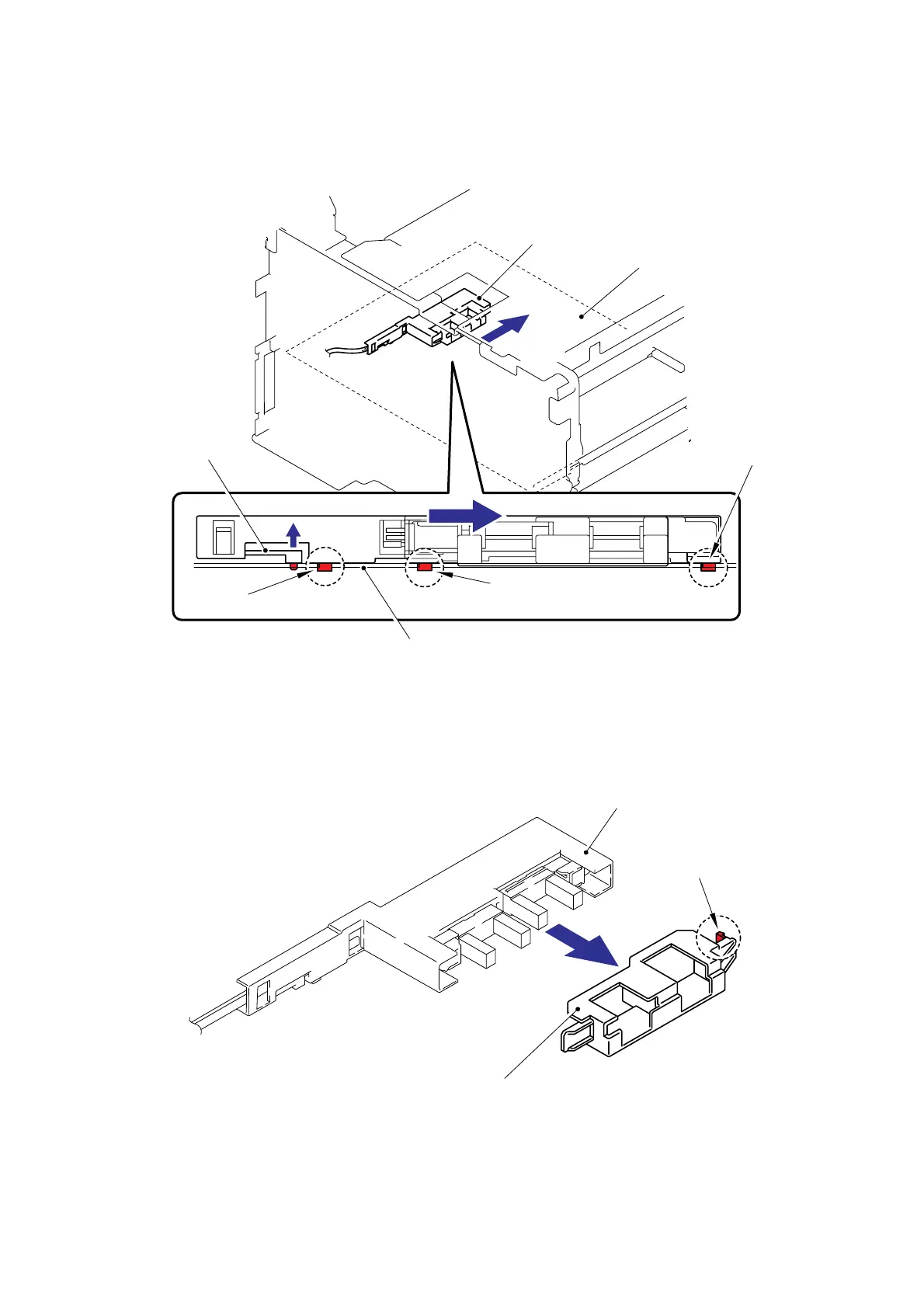

(1) Move the Positioning pin 1a as shown, and slide the Hooks to the direction of the arrow 1b,
and then remove the Waste toner sensor holder from the Middle plate.
Fig. 3-217
(2) Release the Hook to remove the Waste toner sensor cover from the Waste toner sensor
holder.
Fig. 3-218
Waste toner sensor holder
Positioning pin
Hook
Waste toner sensor cover
Waste toner sensor holder
Middle plate
Hook
Hook
Hook
Middle plate
1a
1b
<Front>
1b
* Figure of the front view
<Left side>
