Brother MFC-9840CDW - Harness Cover MP

Confidential
3-145

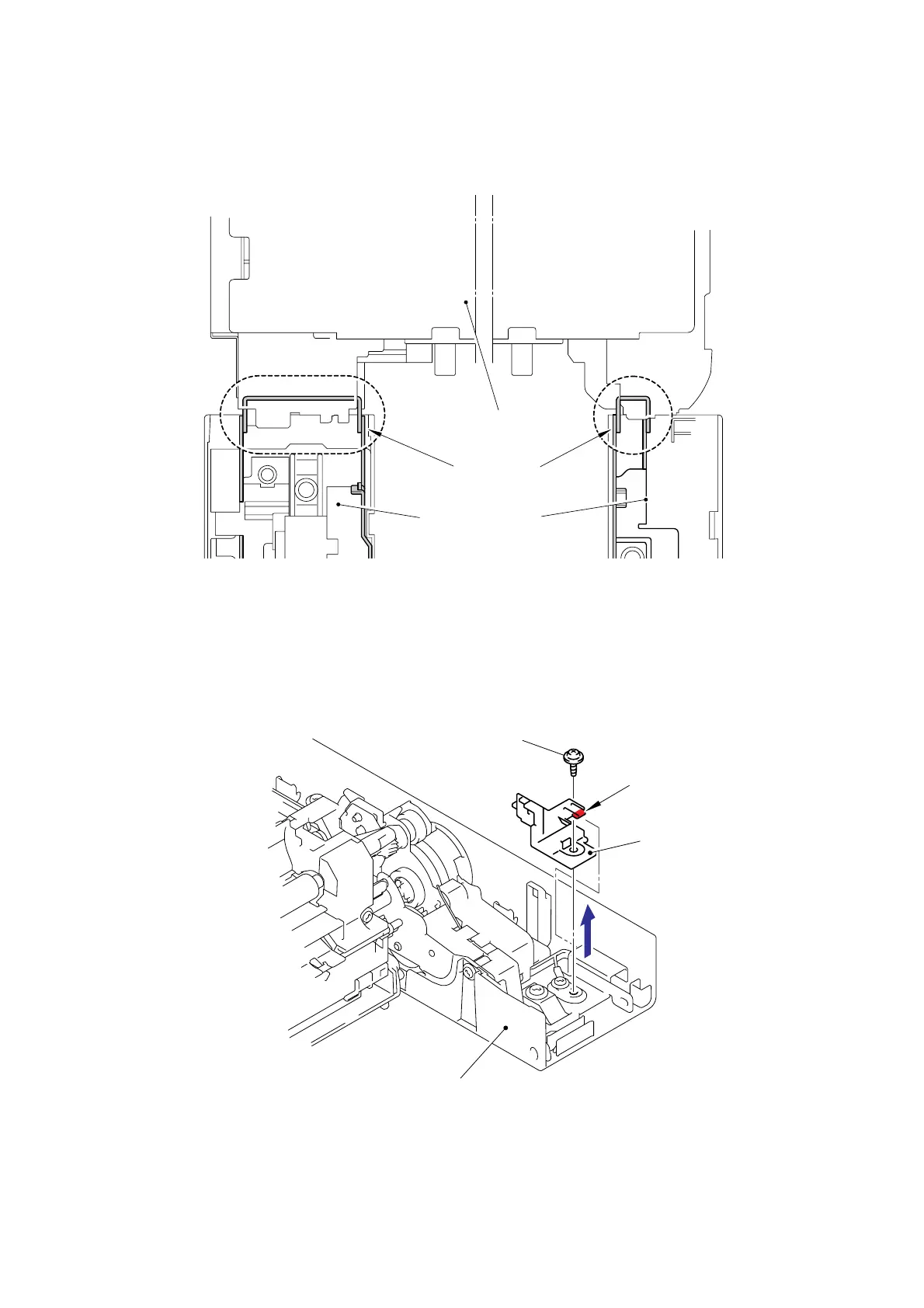

Assembling Note:
- When assembling the Front door unit ASSY onto the Hinge on the main body, make sure to
align the Front door unit ASSY with the Hinge as shown in the figure below.
Fig. 3-201
8.32 Harness Cover MP
(1) Remove the cup S M3x6 Taptite screw, and then remove the Harness cover MP from the
Front door unit ASSY.
Fig. 3-202
Front door unit ASSY
Frame unit
Harness cover MP
Taptite, cup S M3x6
Front door unit ASSY
Hinge
Hook
<Front>
