Brother MFC-9840CDW - Paper Eject ASSY DX

Confidential
3-46
8.7 Paper Eject ASSY DX

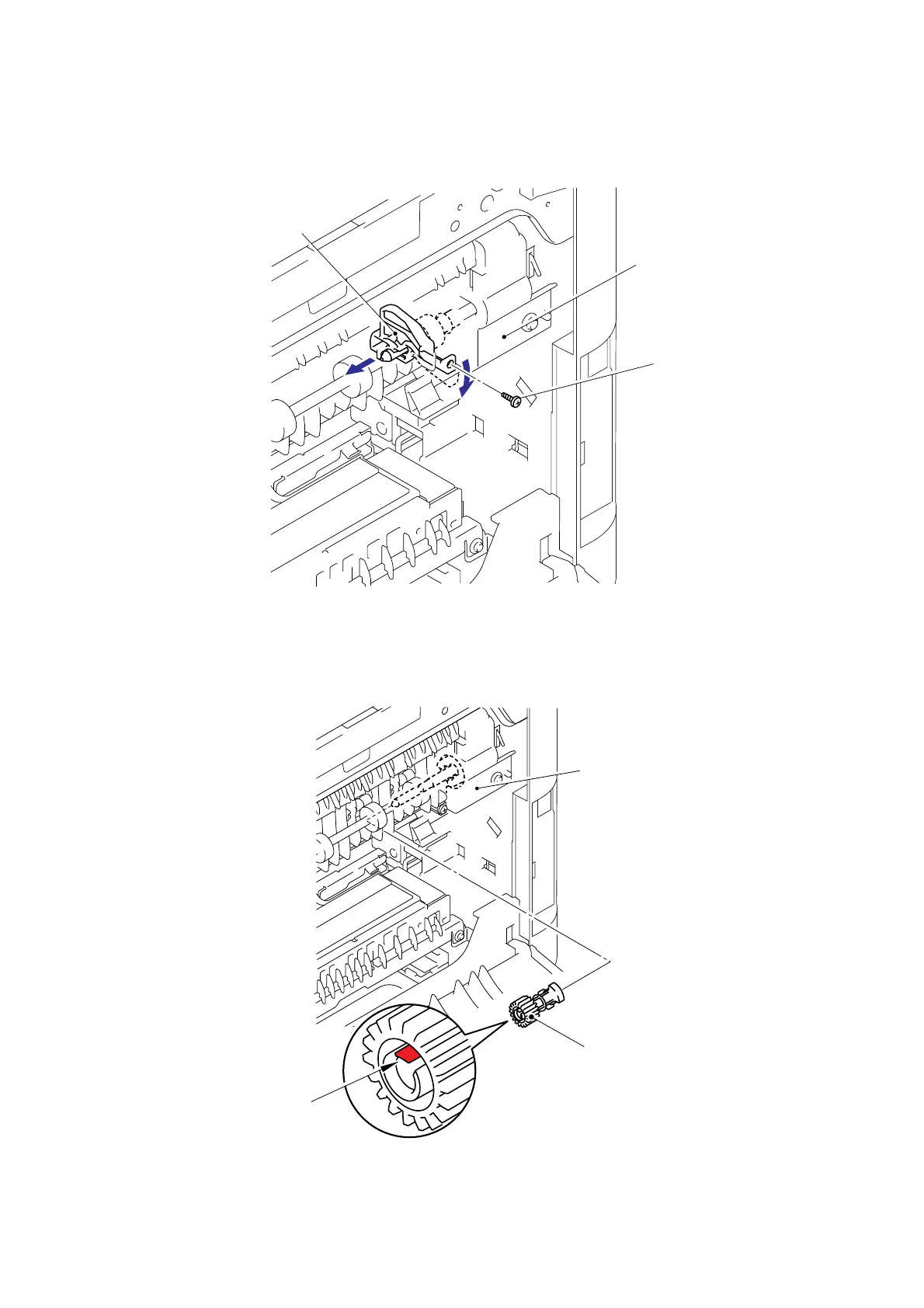

(1) Remove the bind B M3x10 Taptite screw, and then remove the Drive shaft holder.
Fig. 3-22
(2) Release the Hook to remove the Fuser drive gear 18 from the shaft.
Fig. 3-23
Fuser drive gear 18
Paper eject ASSY DX
Drive shaft holder
Taptite, bind B M3x10
Hook
Paper eject ASSY DX
<Back side>
<Back side>
1a
1b
