Brother MFC-9840CDW - Document Scanner Unit

Confidential
3-107
8.21 Document Scanner Unit

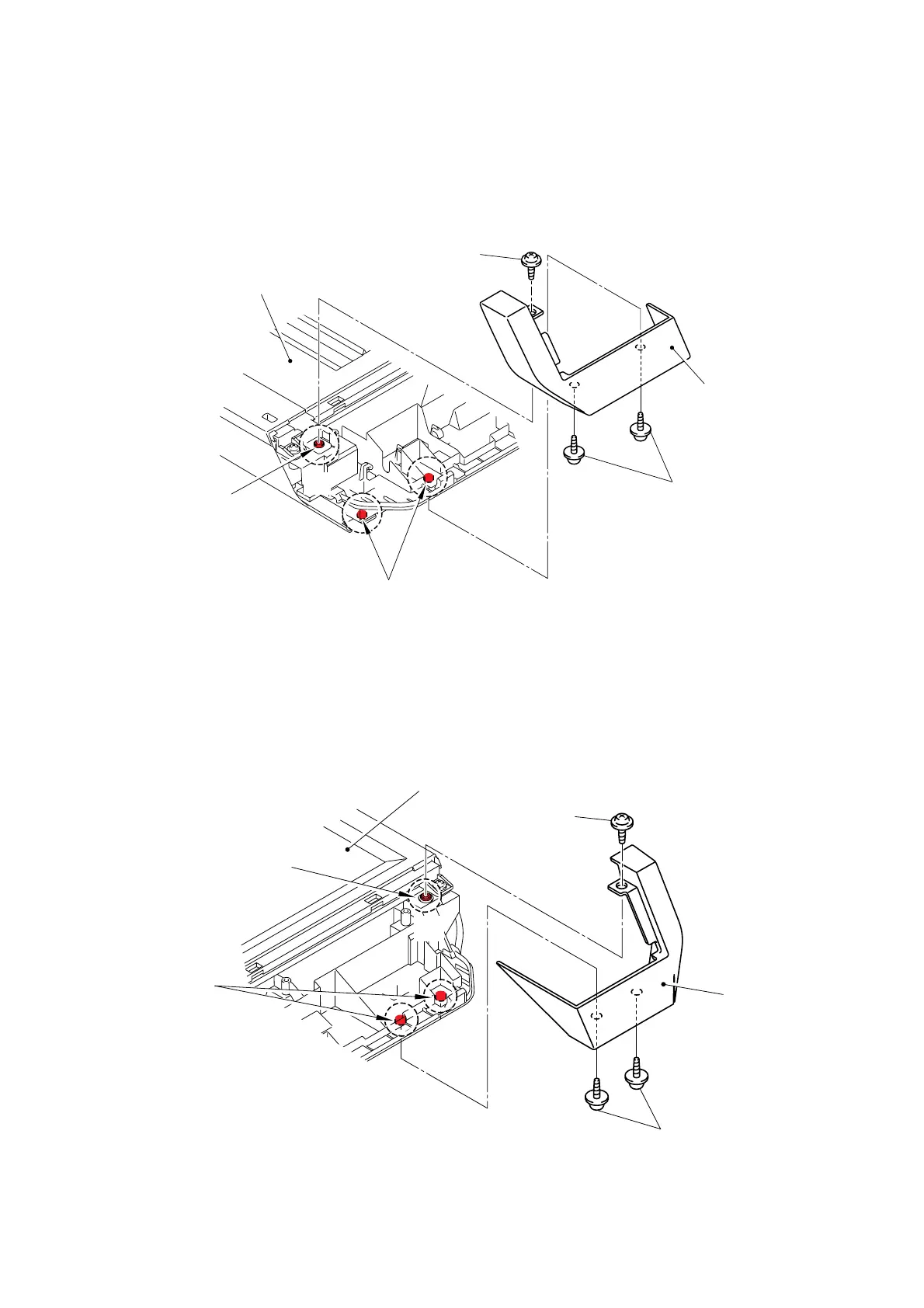

(1) Remove the three cup B M4x12 Taptite screws.
(2) Release the three Bosses in the order of 2a to 2b to remove the Dressing cover FB FL
from the Document scanner unit.
Fig. 3-130
(3) Remove the three cup B M4x12 Taptite screws.
(4) Release the three Bosses in the order of 4a to 4b to remove the Dressing cover FB FR
from the Document scanner unit.
Fig. 3-131
Taptite, cup B M4x12
Taptite, cup B M4x12
Document scanner unit
Dressing cover FB FL
Boss
Bosses
<Left side>
Dressing cover FB FR
Taptite, cup B M4x12
Taptite, cup B M4x12
Bosses
Boss
Document scanner unit
<Right side>
2a
2b
2b
4a
4b
4b
