Brother MFC-9840CDW - Toner LED PCB ASSY

Confidential
3-183
8.54 Toner LED PCB ASSY

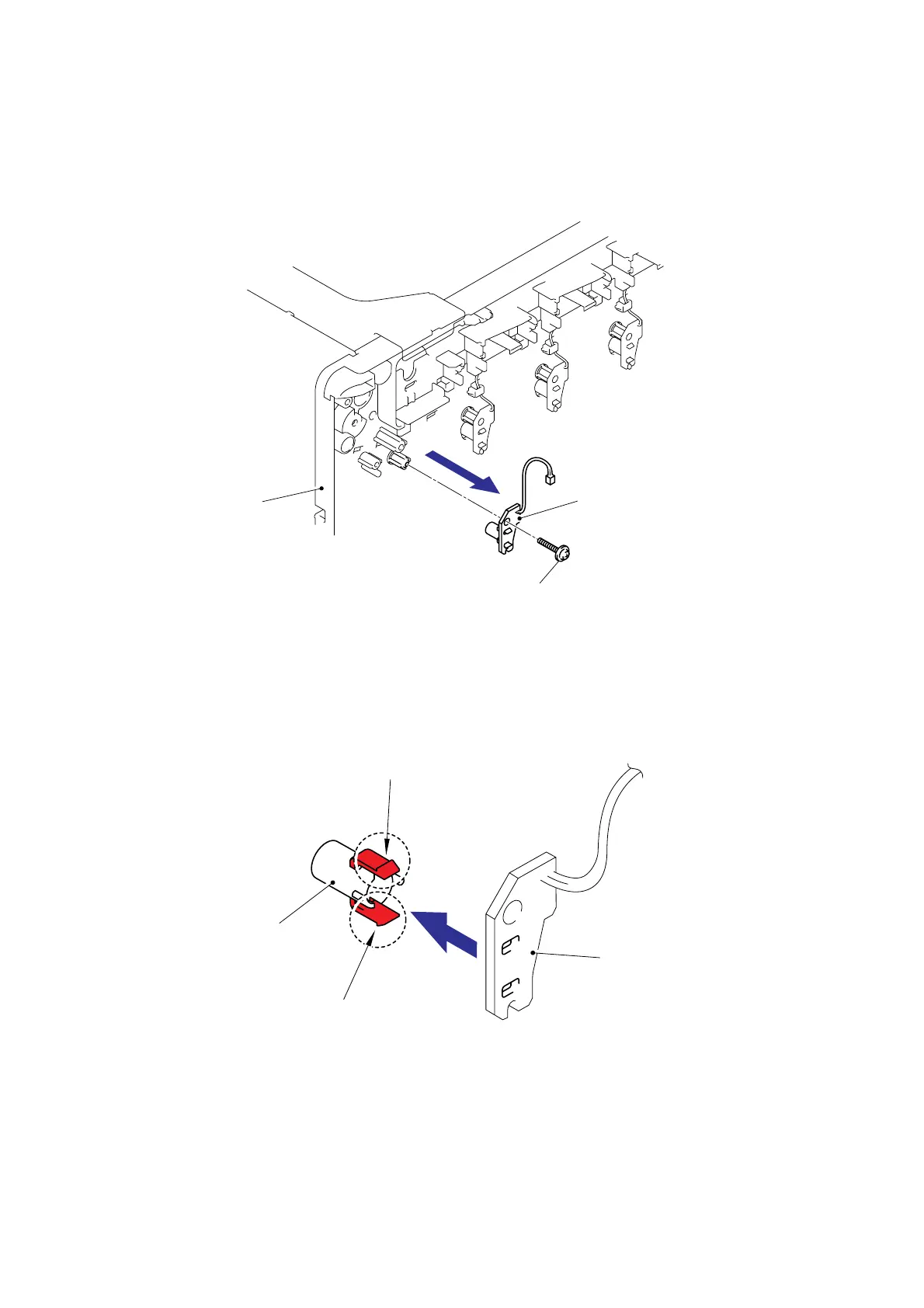

(1) Remove the Screw pan (S/P washer) M3x16, and then remove the Toner LED PCB from the
Frame unit.
Fig. 3-269
(2) Release the two Hooks to remove the LED holder from the Toner LED PCB.
(3) Remove the other three Toner LED PCBs in the same way.
Fig. 3-270
Toner LED PCB
Hook
LED holder
Hook
Toner LED PCB
Screw pan (S/P washer) M3x16
Frame unit
<Right side>
