8.45 Develop Release Sensor PCB ASSY
(1) Remove the cup B M3x8 Taptite screw.
(2) Remove the Develop release sensor PCB ASSY from the Frame unit. Disconnect the
Connector from the Develop release sensor PCB ASSY.

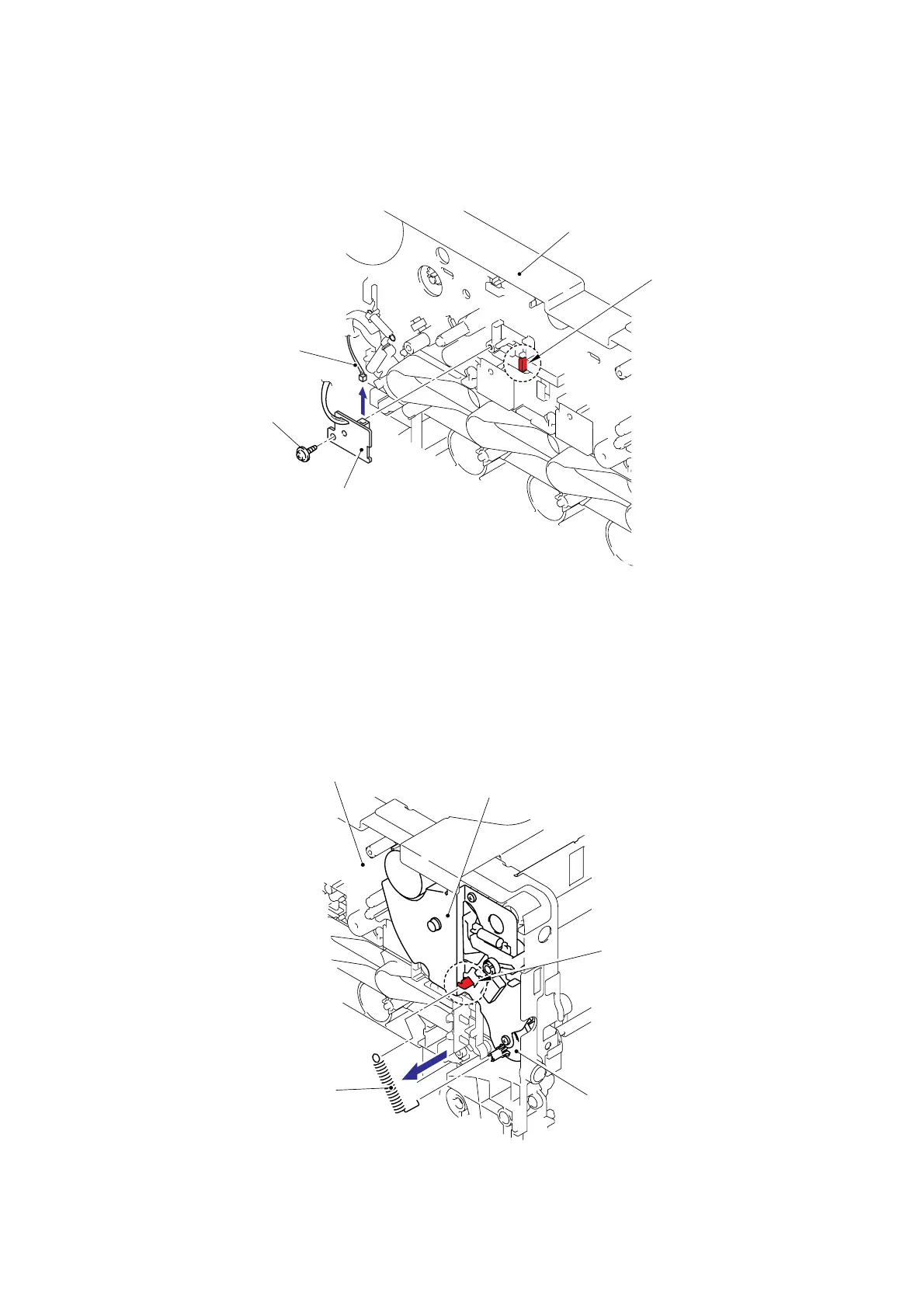

Fig. 3-245
*1
Tightening Note:
When tightening the screw, slowly turn it counterclockwise (in the direction to loosen the
screw) with your hand until you feel that the screw is a little dropped in the hole. Then,
slightly turn it clockwise (in the direction to tighten the screw) with your hand and tighten it
according to the specified torque with a screwdriver.
8.46 Develop Press Drive L ASSY
(1) Remove the Pull up lever spring (for L) from the Hook of Develop press drive L ASSY.
Fig. 3-246
Develop release sensor PCB ASSY
Taptite, cup B M3x8
(Tightening torque:
0.60 ±0.1 N m) *1
Hook
Frame unit
<Left side>
Connector
Frame unit
Develop press drive L ASSY
Hook
Pull up lever L
Pull up lever spring (for L)
<Left side>
