3-58
8.13 Side Plate LB
(1) Remove the three cup S M3x6 Taptite screws, cup B M4x12 Taptite screw and cup S M4x8
Taptite screw, and then remove the Side plate LB.

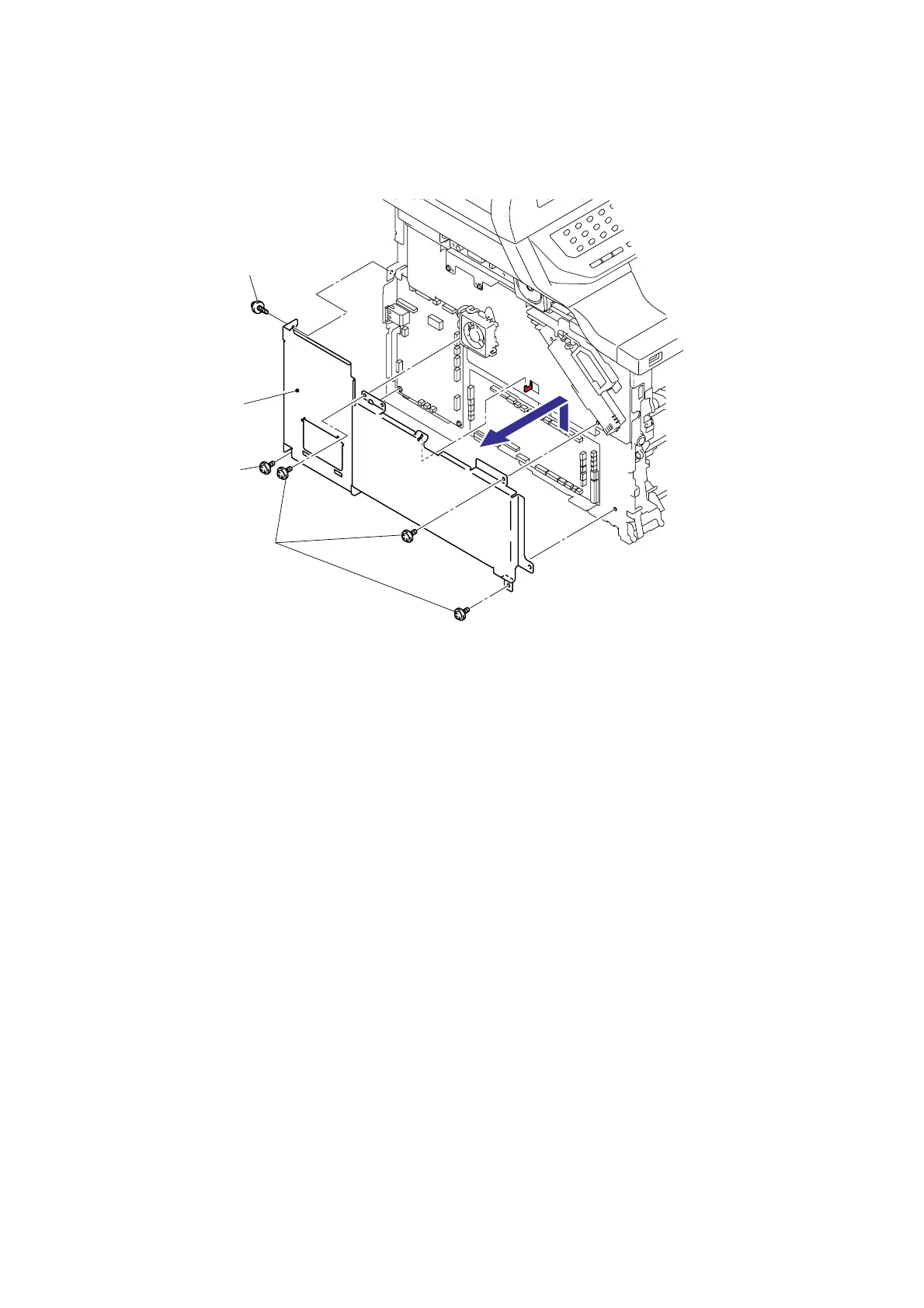

Fig. 3-45
*1
Tightening Note:
When tightening the screw, slowly turn it counterclockwise (in the direction to loosen the
screw) with your hand until you feel that the screw is a little dropped in the hole. Then,
slightly turn it clockwise (in the direction to tighten the screw) with your hand and tighten
it according to the specified torque with a screwdriver.
Taptite, cup S M4x8
Side plate LB
Taptite, cup B M4x12
(Tightening torque:
1.20 ±0.1 N m) *1
Taptite, cup S M3x6
<Left side>
