9.6 LT Solenoid ASSY

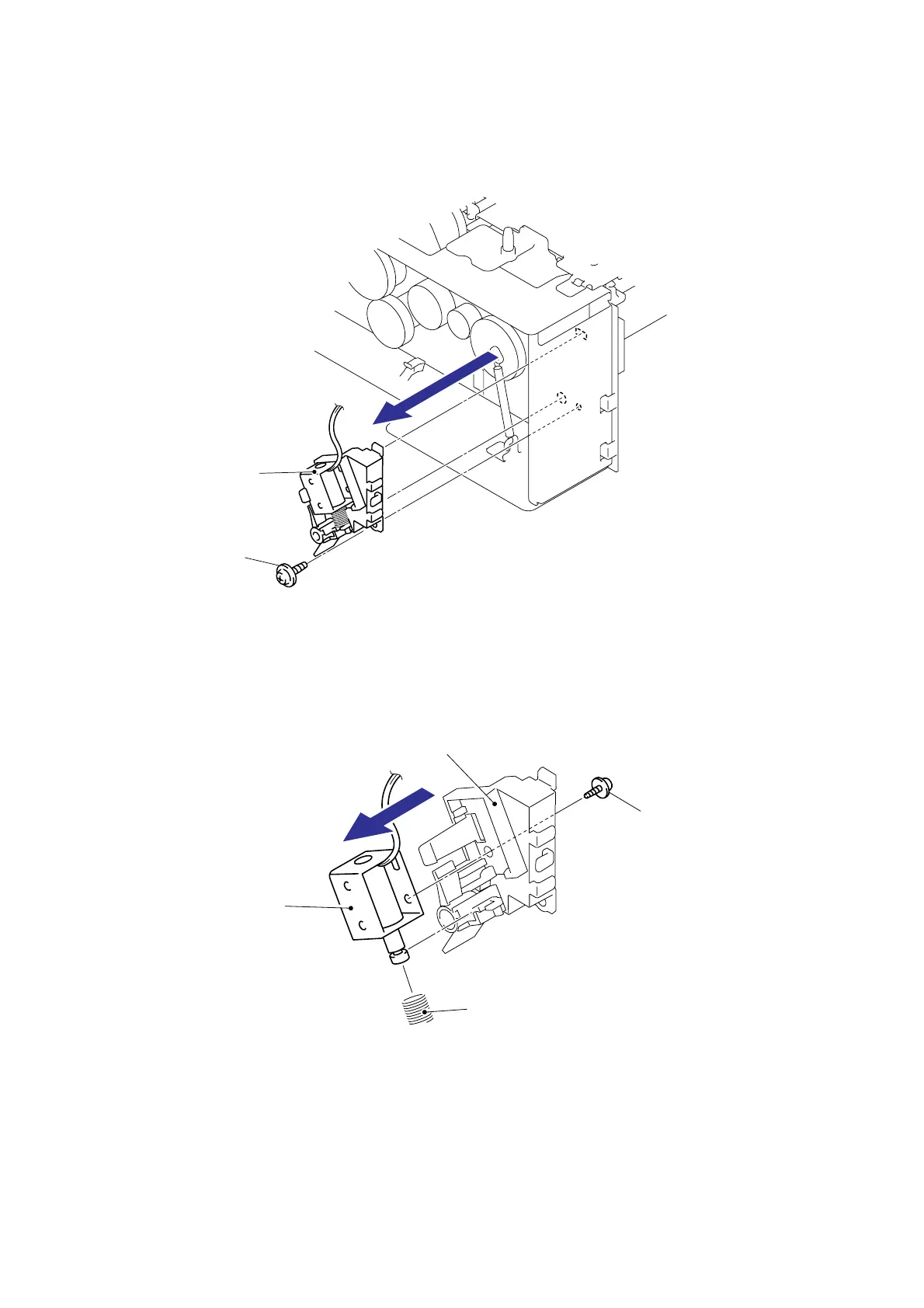

(1) Remove the cup S M3x6 Taptite screw, and then remove the Solenoid holder ASSY.
Fig. 3-302
(2) Remove the Screw flanged M3X3.5, and then remove the LT solenoid ASSY and Solenoid
spring MP from the LT solenoid holder.
Fig. 3-303
Solenoid holder ASSY
Taptite, cup S M3x6
Screw flanged M3x3.5
Solenoid spring MP
LT solenoid ASSY
LT solenoid holder
