Brother MFC-9840CDW - Roller Holder ASSY

Confidential
3-129

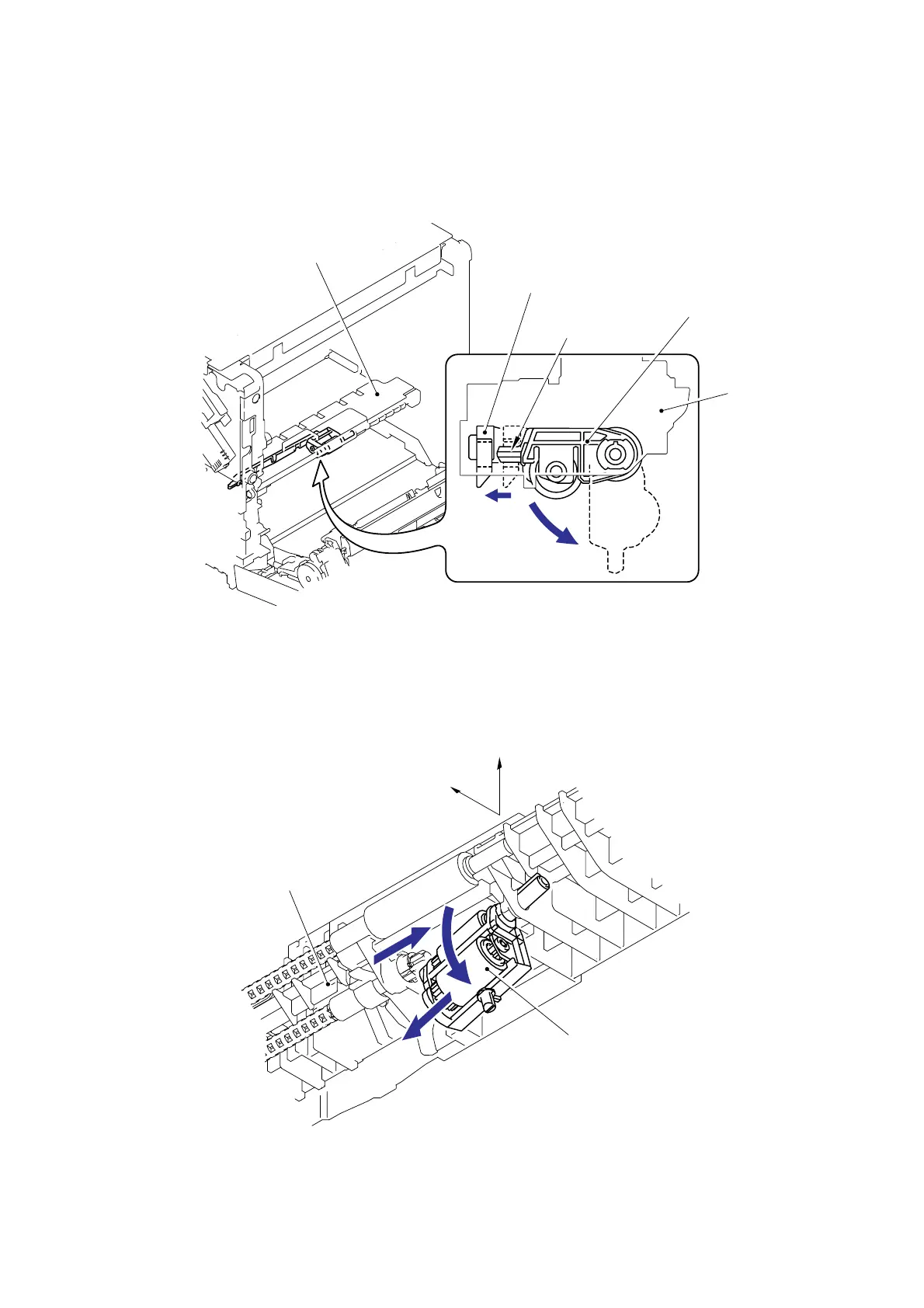

8.26 Roller Holder ASSY
(1) Push the Lift arm to the direction of the arrow 1a and release the boss of the Roller holder
ASSY. Then, turn the Roller holder ASSY to the direction of the arrow 1b.
Fig. 3-171
(2) Slide the Roller holder ASSY to the direction of the arrows 2a, 2b and 2c in this order and
remove it.
Fig. 3-172
Paper feed frame unit
Paper feed
frame unit
Roller holder ASSY
Boss
Lift arm
Paper feed frame unit
Roller holder ASSY
1a
1b
2a
2b
2c
<Front>
<Upper side>
<Front>
