8.47 Front Cover Interlock Switch ASSY
(1) Remove the Interlock switch holder spring and Interlock harness guide from the Develop
press drive L ASSY.

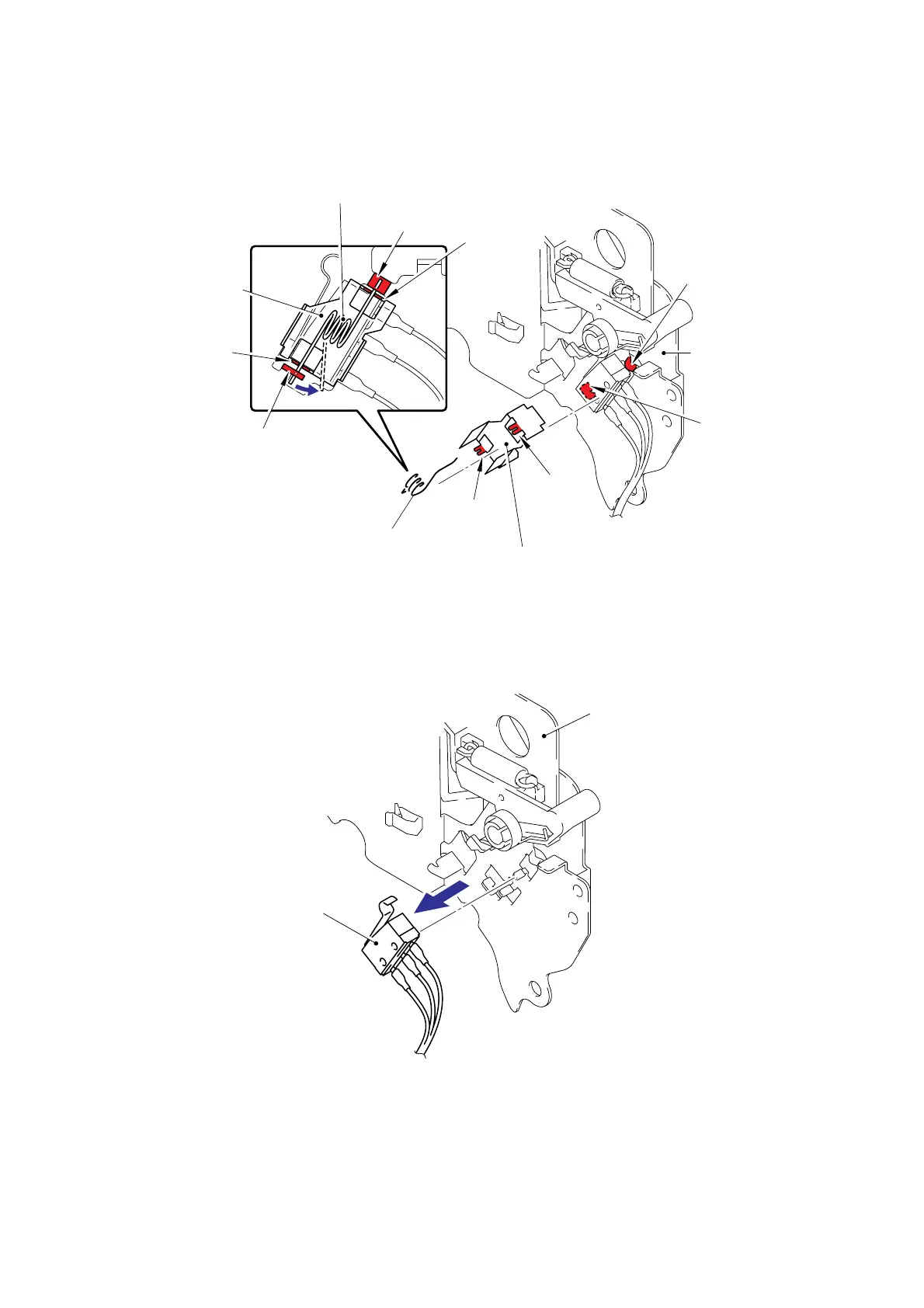

Fig. 3-251
(2) Remove the Front cover interlock switch ASSY from the Develop press drive L ASSY.
Fig. 3-252
Interlock switch holder spring
Develop press drive L ASSY
Interlock harness guide
Interlock harness guide
Interlock switch holder spring
Hook A
Hook B
Hook B
Hook A
Hook C
Hook C
Hook D
Hook D
Develop press drive L ASSY
Front cover interlock switch ASSY
