9.7 Collar 6

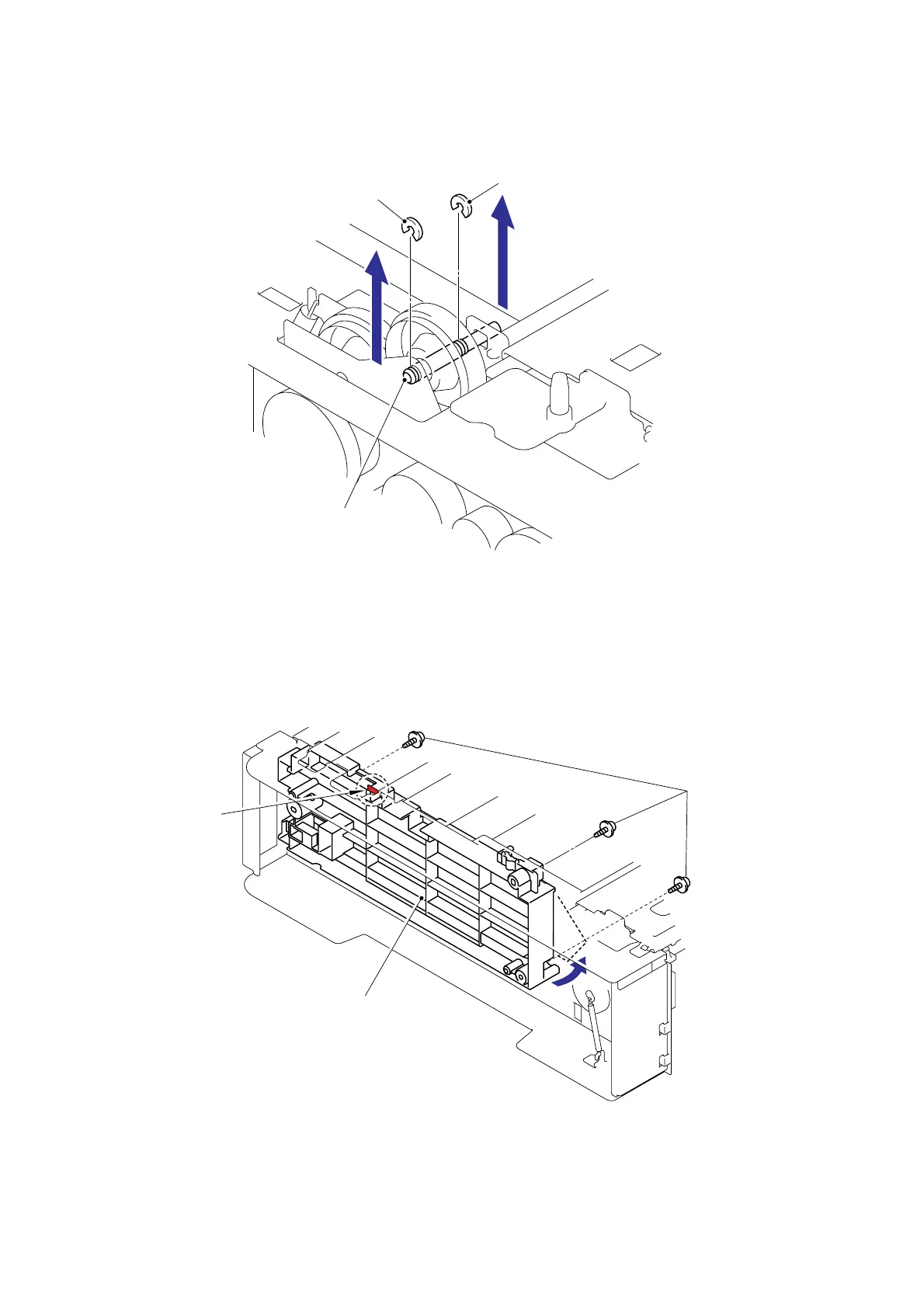

(1) Remove the two Collars 6 from the Fittings shaft.
Fig. 3-304
9.8 Cassette Switch ASSY
(1) Remove the three cup S M3x6 Taptite screws and release the Hook. Then, remove the LT
tray guide left rear ASSY.
Fig. 3-305
Collar 6
Collar 6
Fittings shaft
Taptite, cup S M3x6
LT tray guide left rear ASSY
Hook
