2.2.2 Laser Unit
<Uninstalling Procedure>

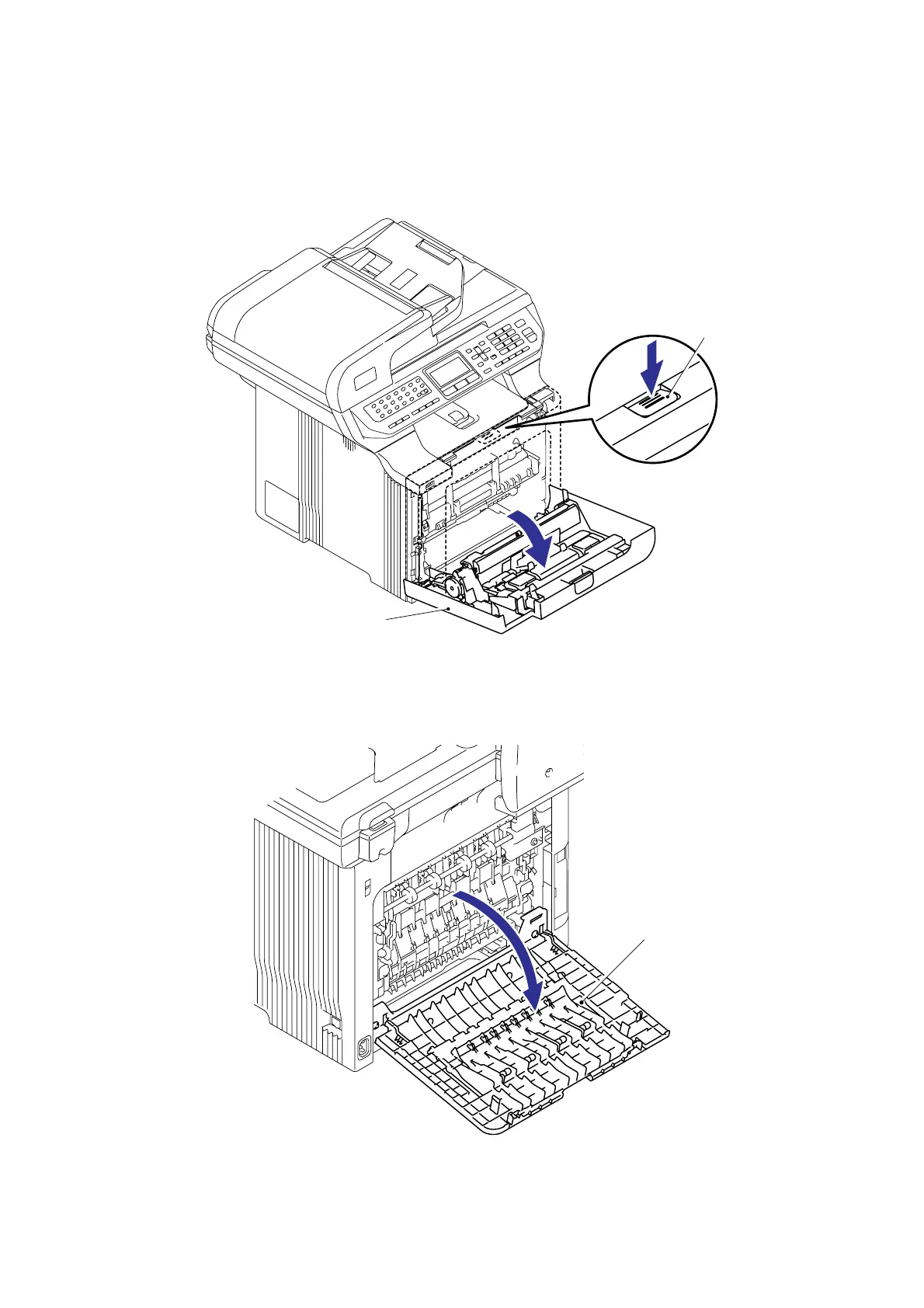

(1) Press the Front cover release button, and open the Front door unit ASSY.
Fig. 2-8
(2) Open the Back cover.
Fig. 2-9
Front door unit ASSY
Front cover release button
1a
1b
Back cover
<Back side>
