(3) Remove the two cup S M3x8 Taptite screws, and then remove the Back cover upper.
Note:
Be careful not to break the plastic. As this can be difficult to remove.

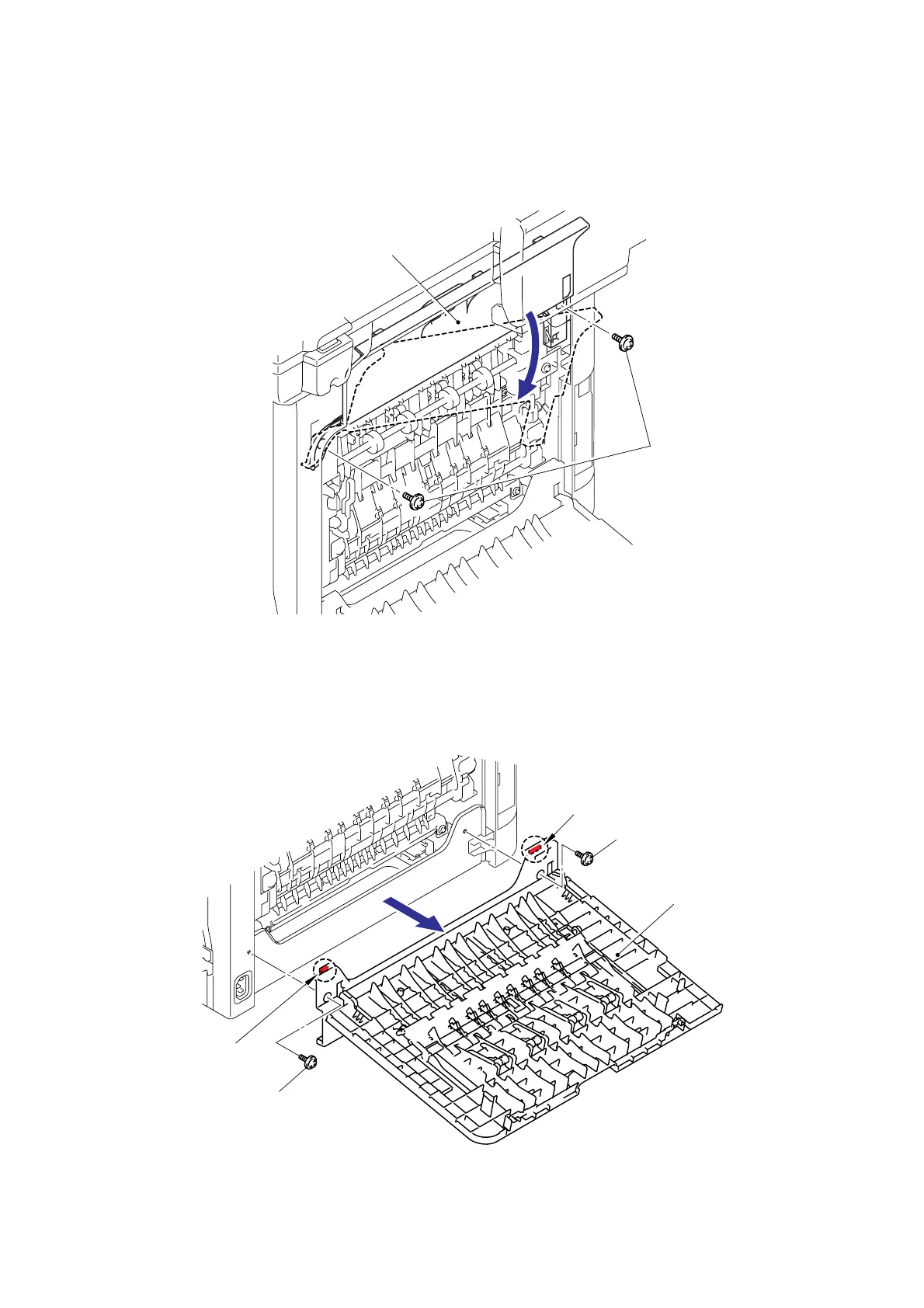

Fig. 2-10
(4) Remove the two cup S M3x8 Taptite screws, and then remove the Back cover ASSY.
Fig. 2-11
Back cover upper
Taptite, cup S M3x8
<Back side>
Taptite, cup S M3x8
Back cover ASSY
Taptite, cup S M3x8
<Back side>
Hook
Hook
