2-11

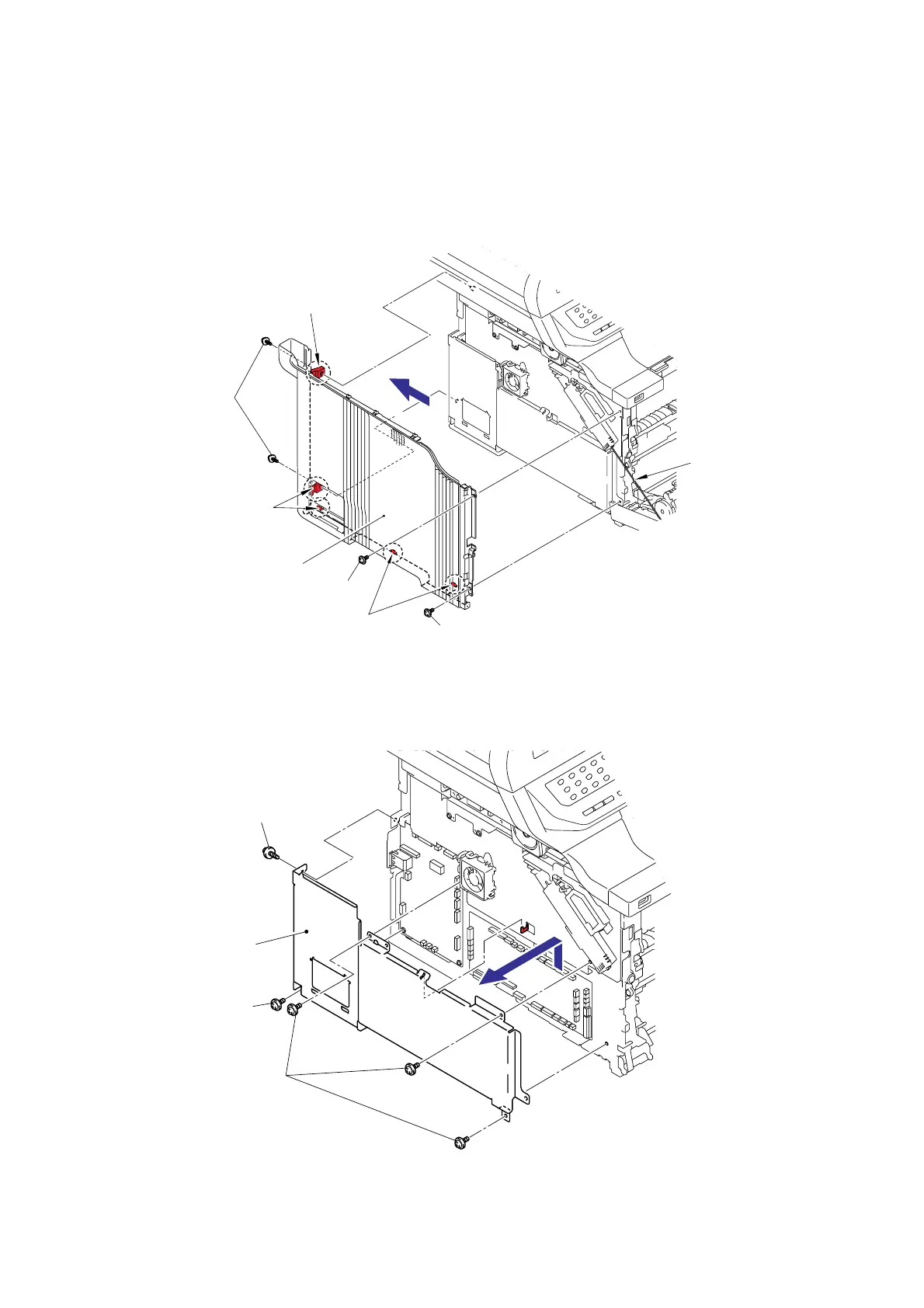

(5) Remove the one cup S M3x8 Taptite screw and three cup B M4x12 Taptite screws.
(6) Release the three Hooks on the bottom and the two Hooks on the back side, and then
remove the Side cover L ASSY.
Note:
When removing the Side cover L ASSY, pay attention to the Wire support rope.
Fig. 2-12
(7) Remove the three cup S M3x6 Taptite screws, one cup B M4x12 Taptite screw and one
cup S M4x8 Taptite screw, and then remove the Side plate LB.
Fig. 2-13
Hook
Taptite, cup B M4x12
Taptite, cup S M3x8
Taptite, cup B M4x12
Hooks
Hooks
Side cover L ASSY
<Left side>
Wire support rope
Taptite, cup S M4x8
Side plate LB
Taptite, cup B M4x12
Taptite, cup S M3x6
<Left side>
