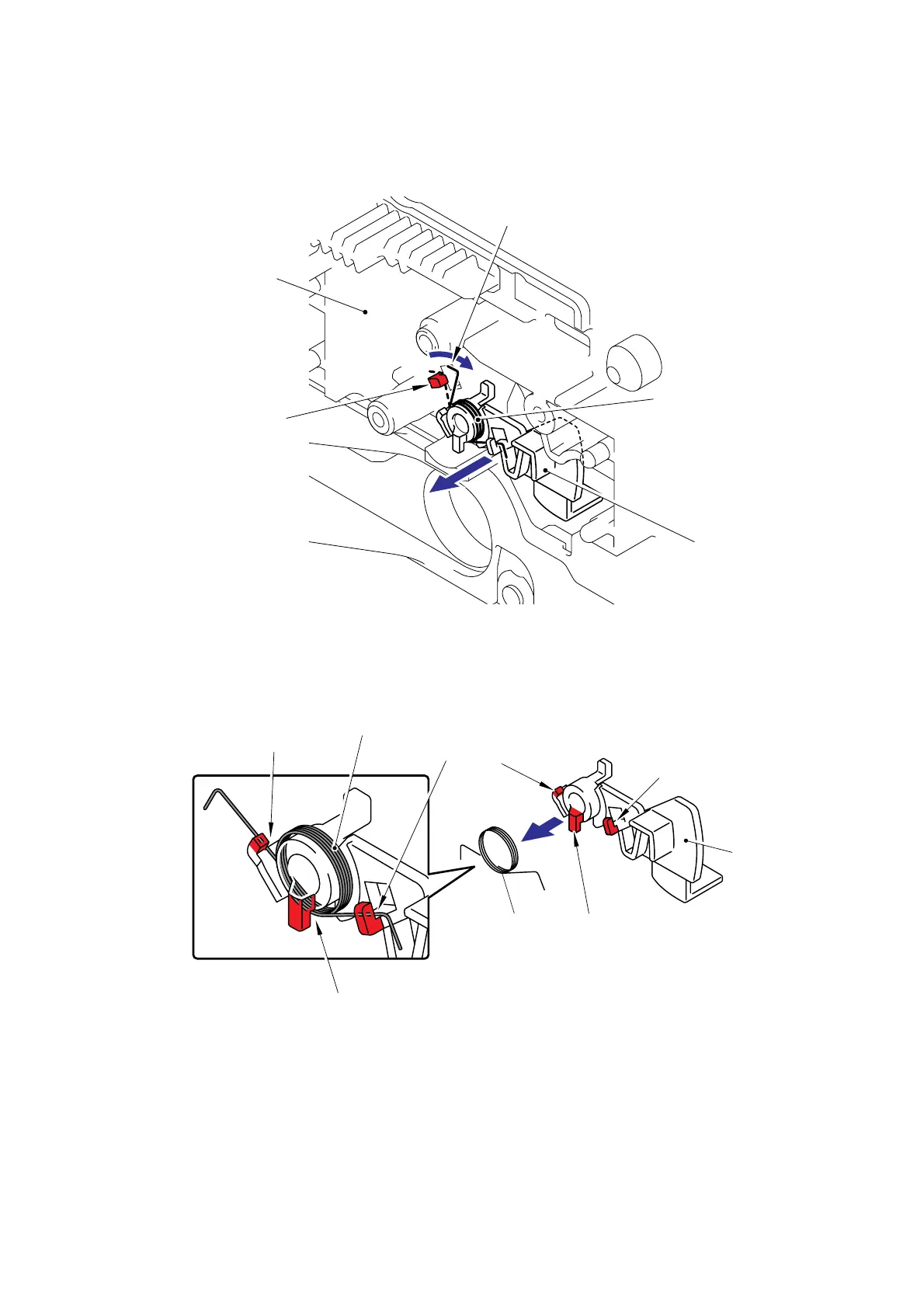

8.49 New Toner Actuator/ New Toner Actuator Spring
(1) Release the section “A” of the New toner actuator spring from the Hook of the Frame unit,
and then remove the New toner actuator from the Fame unit.
Fig. 3-258
(2) Remove the New toner actuator spring from the New toner actuator.
Fig. 3-259
New toner actuator spring
Hook
Frame unit
New toner actuator
1a
1b
<Left side>
“A”
New toner actuator
Hook
New toner actuator spring
Hook
Hook
New toner
actuator spring
Hooked
Hooked
Hooked
