Brother MFC-9840CDW Service Manual

Confidential
5-42
2.2 Develop Roller/ Developing Bias Voltage Counter Reset Function
Since print density is likely to become darker as the toner gets older, the developing bias is
lowered by degrees (bias voltage is reduced) according to the number of develop roller
rotations so that an almost fixed density can be maintained from the beginning to the end. The
developing bias voltage can be verified in the display of log information (Function code 80).
In the case that the toner cartridge is replaced with a new one, the develop roller counter and
developing bias voltage are reset at the same time. This function allows you to reset these
manually.

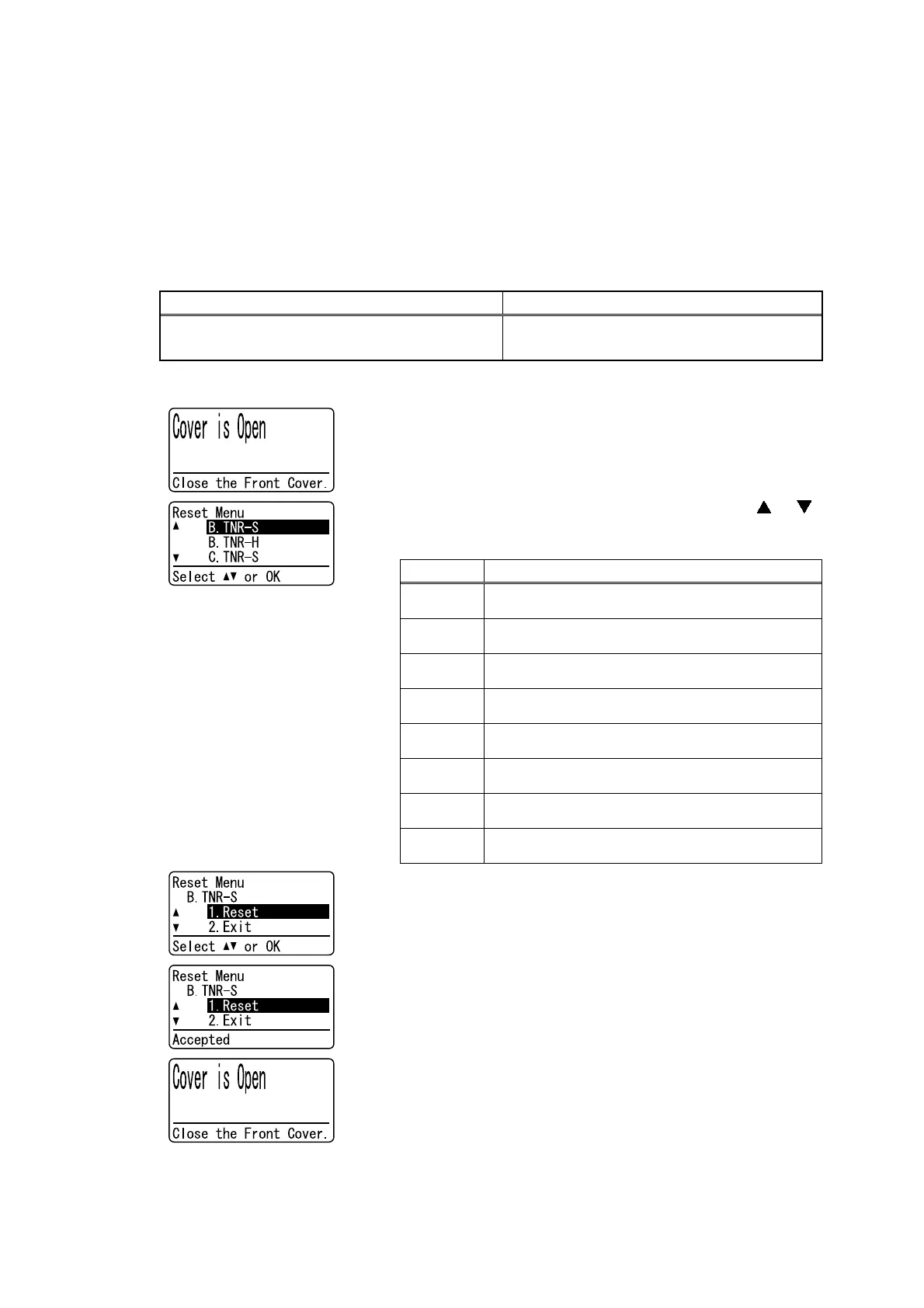

Panel Operation Function
Pressing the Clear/Back button while the front
cover is being opened.
Menus of the develop roller counter reset
<Operating Procedure>
(1) Press the Clear/Back button while the front cover is being
opened.
(2) The “Reset Menu” appears on the LCD. Press the
or
buttons to select the appropriate toner cartrige, and then
press the OK button.
LCD Description
B.TNR-S Reset the develop roller counter of standard black
toner cartrid
g
e.
B.TNR-H Reset the develop roller counter of high-capacity
black toner cartridge.
C.TNR-S Reset the develop roller counter of standard cyan
toner cartridge.
C.TNR-H Reset the develop roller counter of high-capacity
cyan toner cartridge.
M.TNR-S Reset the develop roller counter of standard
magenta toner cartridge.
M.TNR-H Reset the develop roller counter of high-capacity
magenta toner cartridge.
Y.TNR-S Reset the develop roller counter of standard yellow
toner cartridge.
Y.TNR-H Reset the develop roller counter of high-capacity
yellow toner cartridge.
(3) The “B.TNR-S / 1. Reset 2. Exit” will appear on the LCD. If
resetting the counter, press the 1 button. If not, press the 2
button.
(4) The counter is reset when pressing the 1 button.
(5) The machine returns to the status that the front cover is
opened.
Note:
If there is no operation for 60 seconds or more, the machine automatically returns to step (1).
