2.2.4 MP Paper Feeding Kit (PF Kit MP)
<Uninstalling Procedure>
(1) Press the Front cover release button, and open the Front door unit ASSY.
(2) Release the two Hooks to remove the MP feed frame cover from the Front door unit
ASSY.

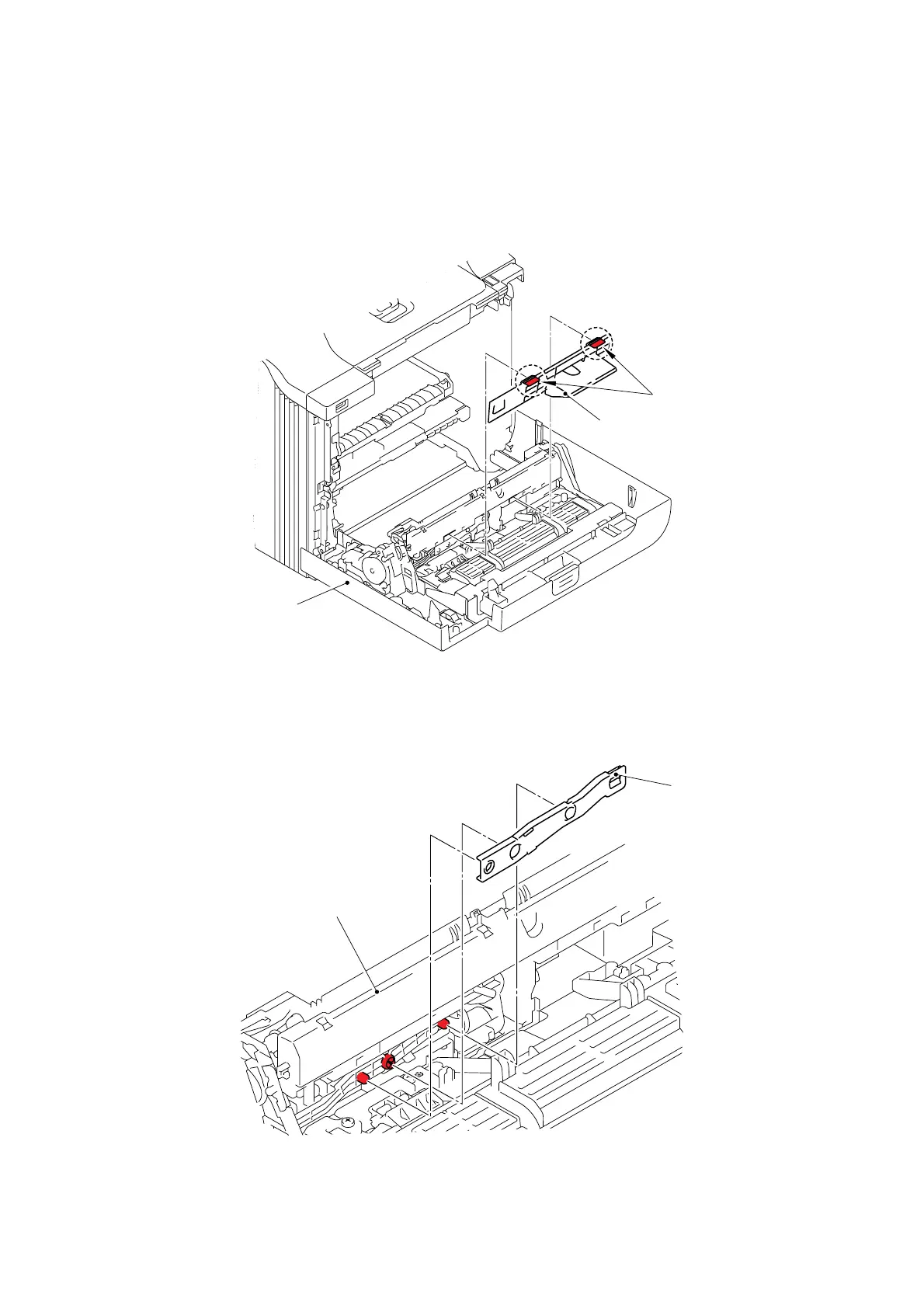

Fig. 2-58
(3) Remove the MP lift arm 2.
Fig. 2-59
Hooks
MP feed frame cover
Front door unit ASSY
<Front>
Front door unit ASSY
MP lift arm 2
<Front>
