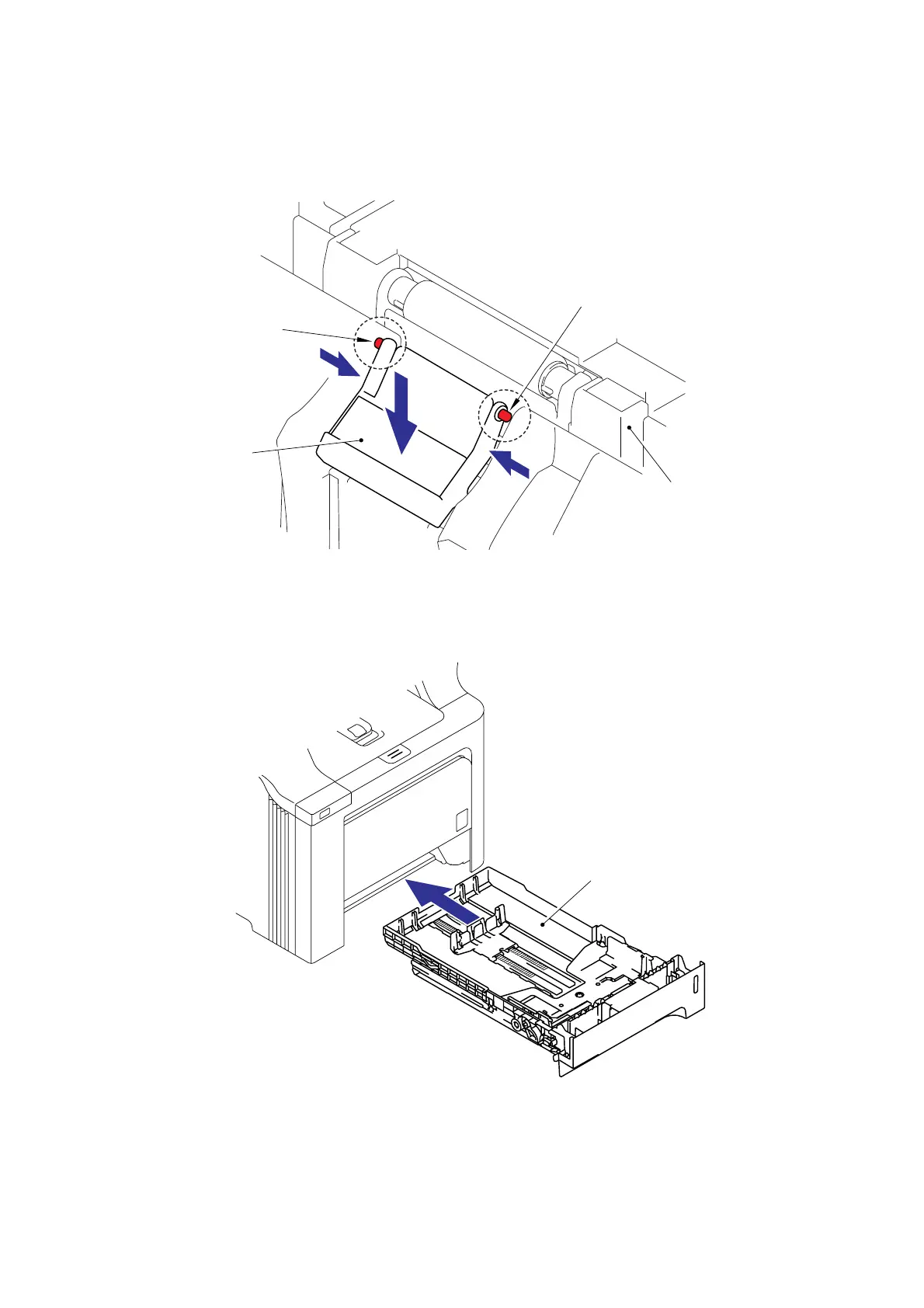

(5) Push both sides of the Separation pad ASSY inwards and put its Pins into the Paper tray.
Note:
Check that the Separation pad ASSY pivots up and down smoothly by pushing it gently.
Fig. 2-56
(6) Install the Paper tray into the machine.
Fig. 2-57
(7) After replacing the Paper feeding kit, reset the counter. (Refer to “2.3 Parts Life Reset
Function” in this chapter.)
Pin
Separation pad ASSY
Paper tray
<Front>
Paper tray
Pin
5b
5a
5a
