Brother MFC-9840CDW - PS PCB Unit

Confidential
3-186

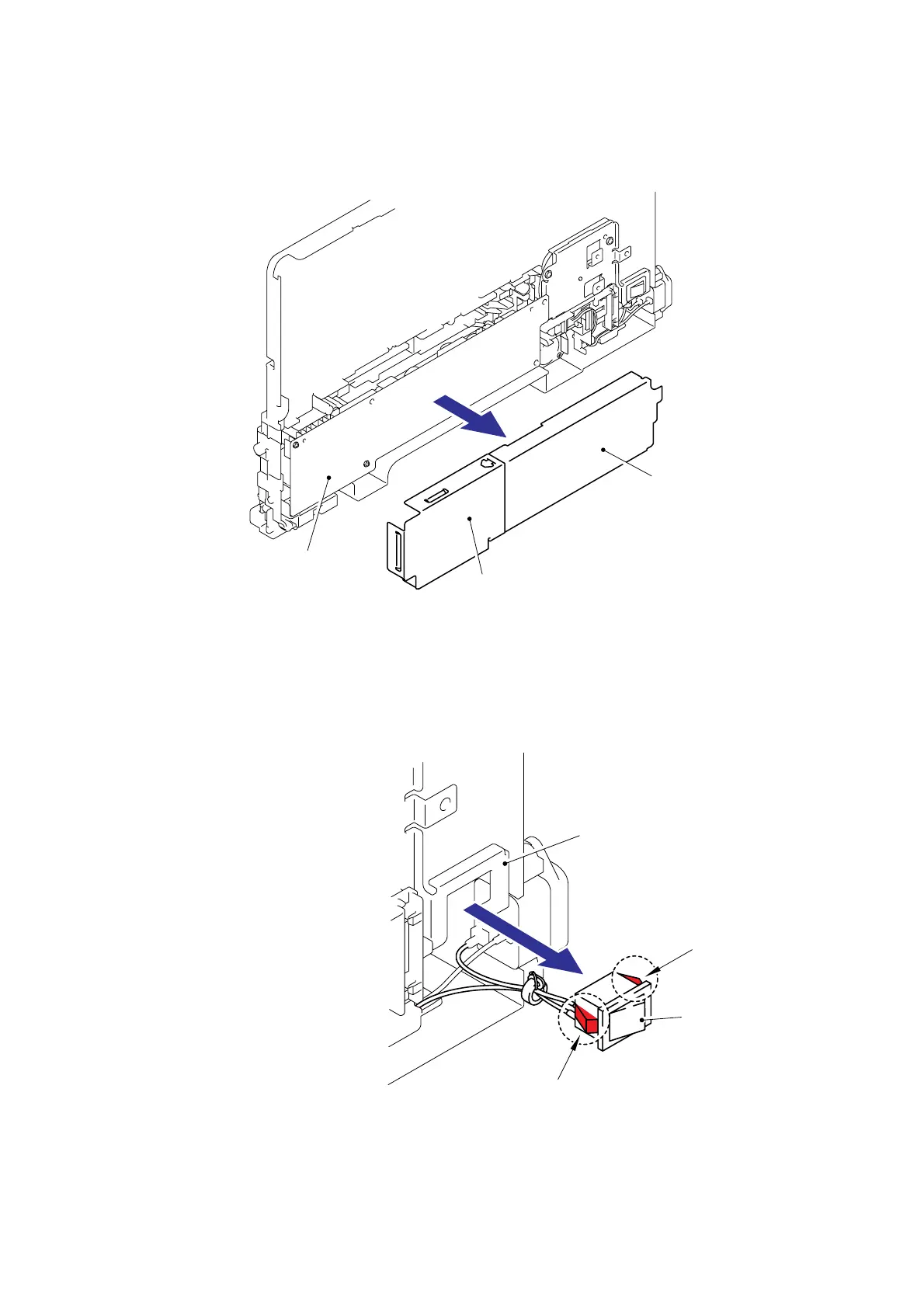

8.58 PS PCB Unit
(1) Remove the LVPS insulation sheet and LVPS V0 insulation sheet from the PS PCB unit.
Fig. 3-274
(2) Remove the Power supply switch from the Belt gear plate ASSY by pushing the Hooks
inwards.
Fig. 3-275
LVPS insulation sheet
LVPS V0 insulation sheet
PS PCB unit
<Right side>
Hook
Hook
Belt gear plate ASSY
Power supply switch
<Right side>
